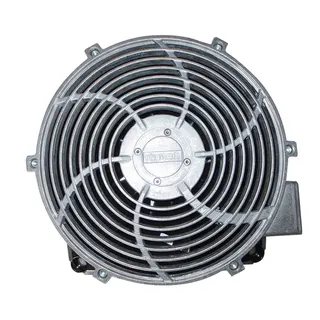

Industrial axial cooling fan with metal housing and ball bearings

Fans

Fans W2D270-EB26-08 industrial cooling fan

SKU CH-63CE-SAY1Q

Industrial axial fan with ball bearings runs on 400 V three-phase power at 50 Hz, delivering up to 2630 W and 1320 min⁻¹ while operating from -40 °C to 60 °C

  • Three-phase 400 VAC motor runs at 1320 min⁻¹ for high airflow
  • Ball bearings deliver long service life at full speed
  • Operates from -40 °C to 60 °C ambient temperature
  • 2630 W power input with 220 Pa maximum back pressure
  • Starting current 19 A, maximum safe speed 1670 min⁻¹ at 70 °C

Industrial 400 V axial fan

The W2D270-EB26-08 is a three-phase axial fan built for inverter cabinet cooling. It runs on 400 VAC at 50 Hz and draws up to 4.78 A at full speed. Ball bearings support continuous operation in industrial environments.

Suits cabinets rated for 400 V three-phase supply

Installers working with 400 V three-phase power can use this unit directly. It is not suitable for single-phase or lower-voltage installations. The motor reaches 1320 min⁻¹ with 2630 W input under nominal conditions.

Max back pressure 220 Pa at 1320 min⁻¹

The fan delivers 220 Pa maximum back pressure when running at 1320 min⁻¹. At reduced speed of 1050 min⁻¹ the pressure drops to 140 Pa. This figure determines whether airflow meets the cabinet's cooling requirement.

Highlights

  • Three-phase 400 VAC motor runs at 1320 min⁻¹ for high airflow
  • Ball bearings deliver long service life at full speed
  • Operates from -40 °C to 60 °C ambient temperature
  • 2630 W power input with 220 Pa maximum back pressure
  • Starting current 19 A, maximum safe speed 1670 min⁻¹ at 70 °C

Specifications

No published specifications for this item yet.

Questions about this item

At what ambient temperature does the motor reach its maximum safe operating speed of 1670 min⁻¹?

The maximum safe operating speed of 1670 min⁻¹ is rated at 70 °C ambient temperature.

How much acoustic noise and heat should I expect when the fan runs continuously at 400 VAC and 50 Hz?

At 400 VAC and 50 Hz the fan draws 4.78 A and consumes 2630 W, producing a maximum back pressure of 220 Pa at 1320 min⁻¹.

What electrical supply and connection type are required to install this three-phase motor?

The motor requires a 400 VAC three-phase supply at 50 Hz wired in a star (Y) connection.
