New black centrifugal blower fan with metal housing and curved blades

Fans

Fans G2E140-AG02-05 200W centrifugal blower

SKU CH-9VWH-B3241

200 W centrifugal blower delivers 2000 rpm airflow for industrial cooling between −25 °C and 50 °C

  • High-pressure airflow from 200 W centrifugal blower
  • 230 VAC single-phase operation at 50 Hz
  • Runs reliably from -25 °C to 50 °C ambient
  • Low 0.88 A running current with 1.2 A start
  • 4 µF / 400 V capacitor included for S2 CE compliance

Industrial centrifugal blower 200W

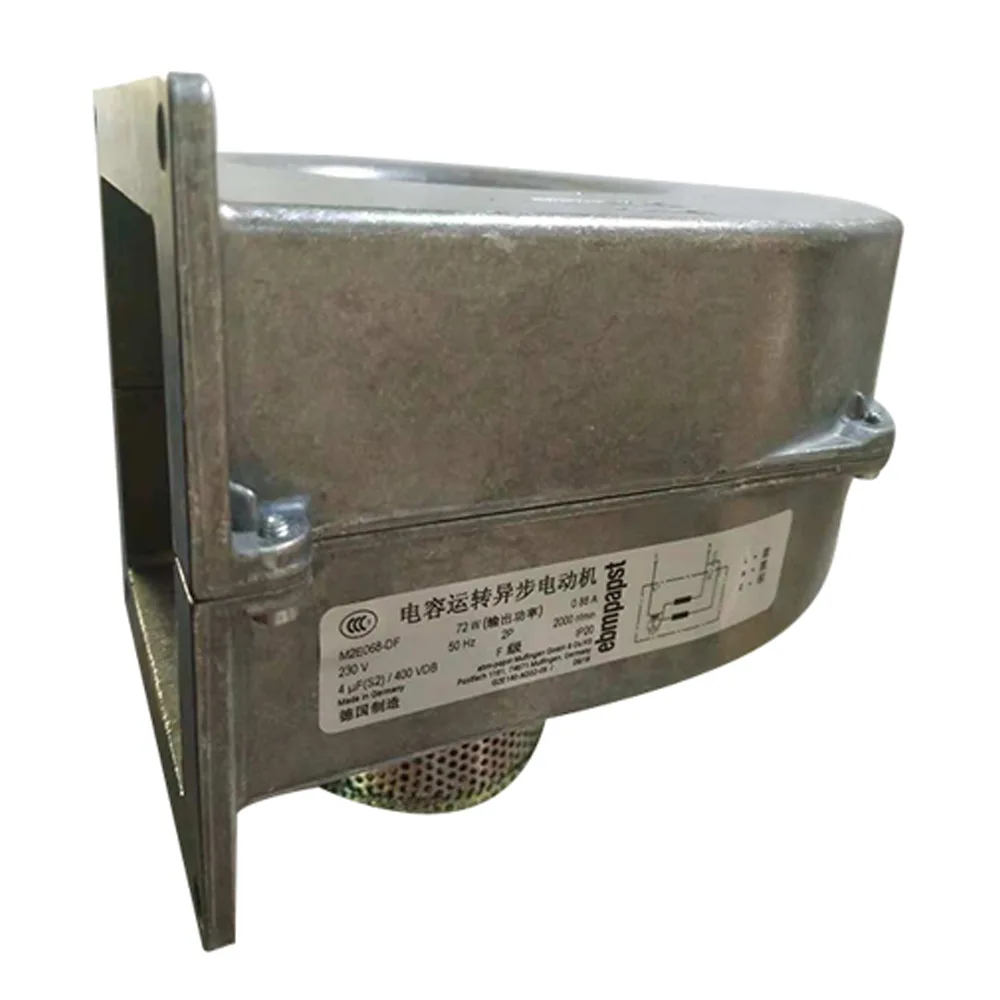

This 230 VAC centrifugal blower delivers 200 W of power at 2000 rpm for industrial cooling and HVAC systems. It draws 0.88 A running current with a 1.2 A start current and uses a 4 µF capacitor rated at 400 VDB. The unit meets CE standards and operates from -25 °C to 50 °C ambient temperature.

Upgrade from lower-pressure axial fans

Replace axial fans when the system requires a minimum back pressure of 100 Pa or higher static pressure for ducted airflow. The jump is worth it when equipment enclosures restrict free airflow and the blower must push air through filters, ducts or heat exchangers without stall.

Fits ducted HVAC and enclosure cooling builds

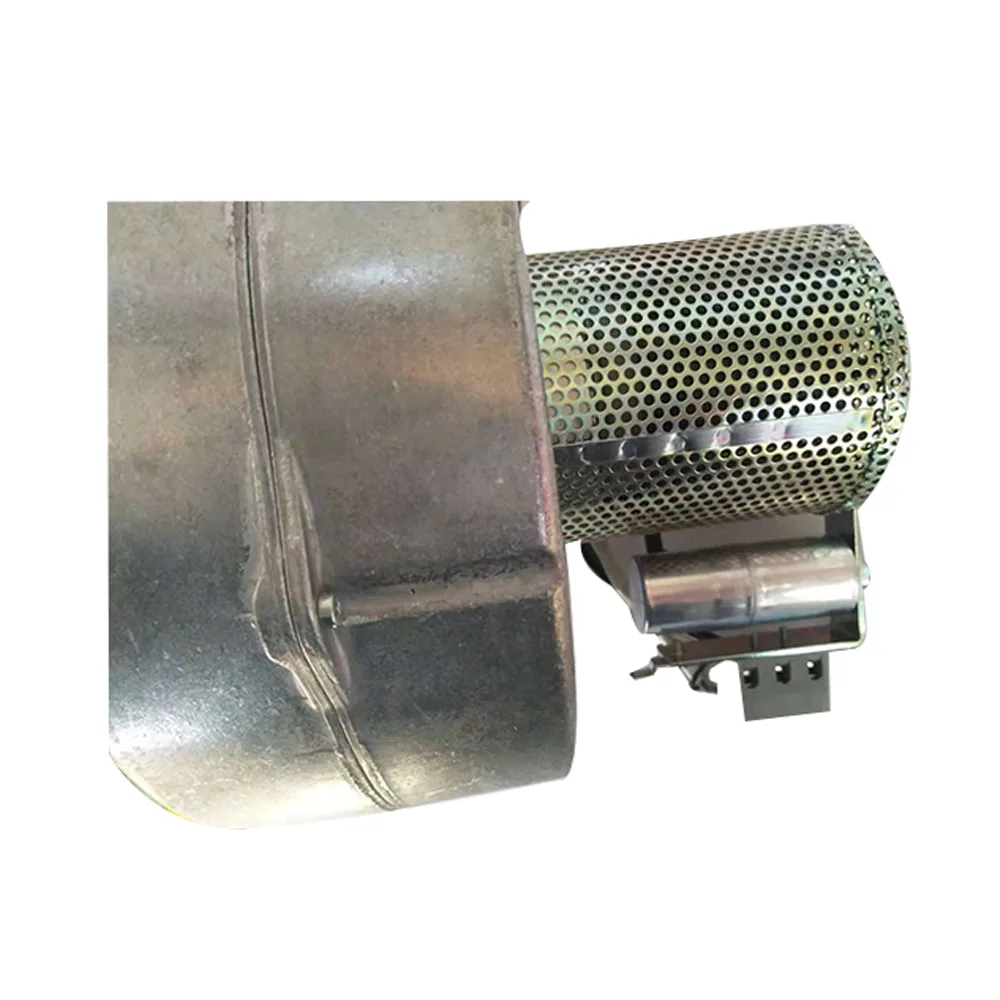

The external-rotor motor design keeps the assembly compact while the motor stays cooled by the airstream. It needs a 230 VAC 50 Hz supply and a 4 µF run capacitor to operate. Speed control is possible via analog or serial interface for variable airflow demand.

Highlights

  • High-pressure airflow from 200 W centrifugal blower
  • 230 VAC single-phase operation at 50 Hz
  • Runs reliably from -25 °C to 50 °C ambient
  • Low 0.88 A running current with 1.2 A start
  • 4 µF / 400 V capacitor included for S2 CE compliance

Specifications

No published specifications for this item yet.

Questions about this item

What capacitor rating is required for the 230 VAC single-phase motor?

A 4 µF capacitor rated at 400 VDB to the S2 (CE) standard is specified for this blower.

How should the blower be wired to achieve the 2000 rpm operating speed?

Connect the motor to a 230 VAC 50 Hz supply with the 4 µF run capacitor in series with the auxiliary winding; reversing live and neutral will not change rotation direction.

When should the capacitor be inspected or replaced during the blower's service life?

Plan to check the 4 µF capacitor after extended operation near the 50 °C ambient limit; replace it if capacitance drops below specification or the case shows bulging.
