Centrifugal fan with black metal volute housing 165 by 162 by 180 mm

Fans

Fans D2E097-BI56-48Size 230V 0.45A industrial cooling fan

SKU CH-6PMM-HF3DK MPN D2E097-BI56-48Size

Centrifugal industrial fan moves 435 m³/h at 230 V, 0.45 A, 100 W, 1950 RPM, 58 dBA, -25 °C to 40 °C

  • FeaturesYes
  • Runs on standard 230 V mains supply
  • Delivers up to 435 m³/h airflow for strong cooling
  • Operates reliably from -25 °C to 40 °C ambient
  • Weighs only 1.5 kg for easy installation
  • Produces 58 dBA noise at full speed

Industrial centrifugal fan for HVAC systems

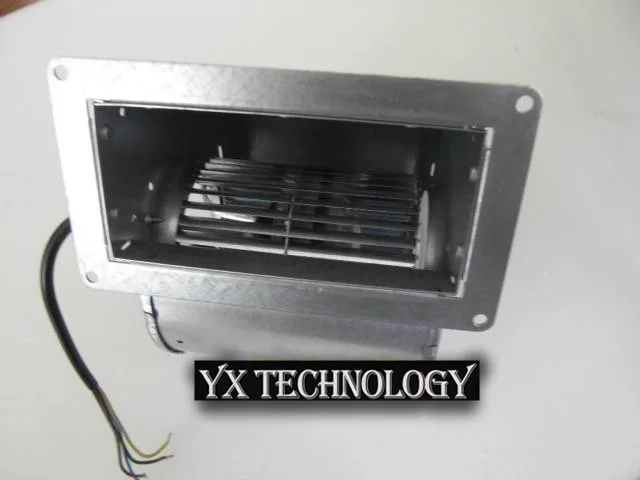

The Fans D2E097-BI56-48Size is a new 230V AC centrifugal blower built for ducted HVAC and industrial cooling. Its volute housing directs airflow through a rectangular 146 by 67mm outlet, making it suited for equipment enclosures, air-handling units and ventilation ducts that require focused static pressure.

Fits 230V mains supply

The unit operates directly on 50 or 60Hz mains at 0.39 to 0.45 amps, drawing 87 to 100 watts. No external driver or DC conversion is needed. The 1.5kg housing mounts in the orientation the volute demands, so the installer must provide a matching cut-out and ducting that aligns with the outlet dimensions.

Delivers 435 cubic metres per hour at 350 pascals

At 1950rpm the fan moves 435m³/h against 350Pa, dropping to 410m³/h at 1850rpm on 60Hz. Noise reaches 58dBA at the higher speed. The design handles ambient temperatures from minus 25 to plus 40°C. It is not intended for open-air circulation, low-voltage control circuits or applications requiring variable-speed PWM regulation.

Highlights

  • Runs on standard 230 V mains supply
  • Delivers up to 435 m³/h airflow for strong cooling
  • Operates reliably from -25 °C to 40 °C ambient
  • Weighs only 1.5 kg for easy installation
  • Produces 58 dBA noise at full speed

Specifications

FeaturesYes

Questions about this item

What limits continuous operation of the D2E097-BI56-48Size fan under sustained use?

The fan is rated for an ambient temperature range of -25 to 40 °C; sustained operation above 40 °C would exceed its environmental specification and limit continuous use.

What noise and heat levels should I expect when the fan runs all day at 230 V 50 Hz?

At 50 Hz the fan produces 58 dBA of noise and draws 0.39 A (87 W); the motor surface temperature will rise with ambient conditions but the unit is designed for -25 to 40 °C environments.

What existing ductwork or mounting points must I already have to install this centrifugal fan?

The outlet inner diameter measures 146 x 67 mm and the overall housing is 165 x 162 x 180 mm, so matching duct flanges or a cut-out of that size must be in place.
