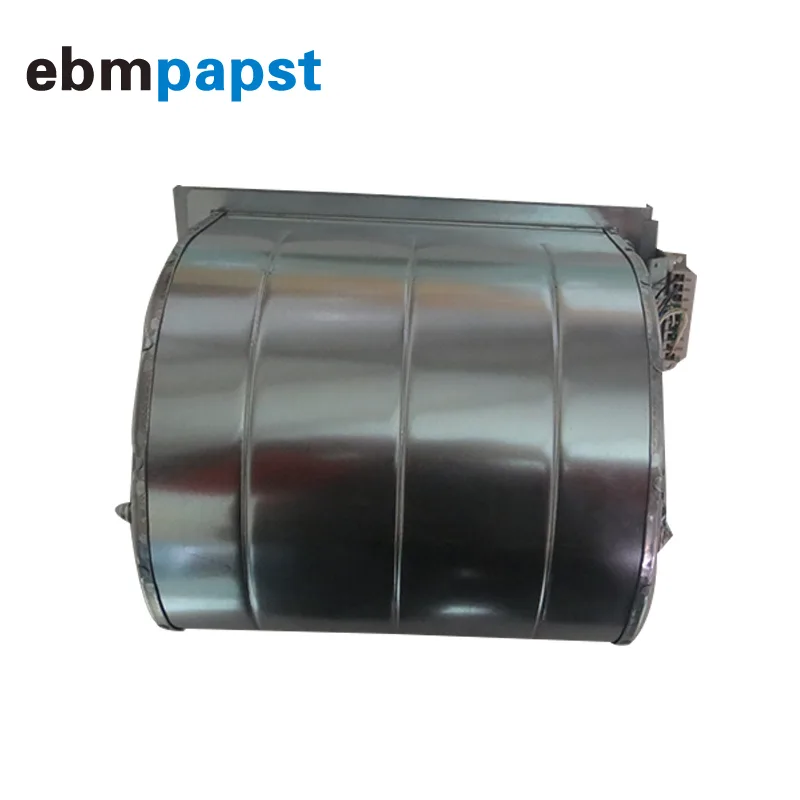

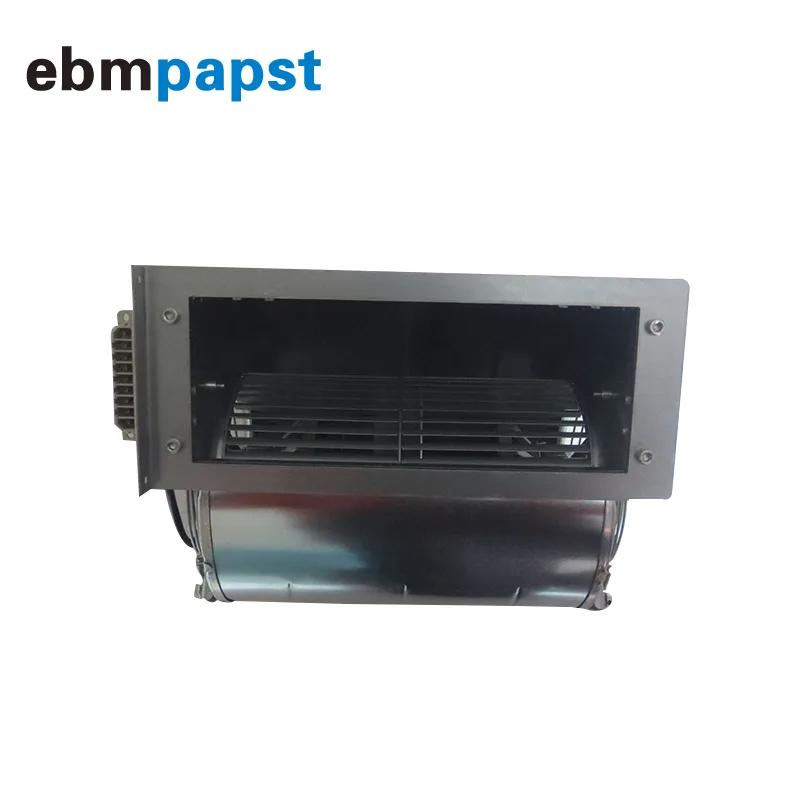

Silver metal centrifugal blower with 160mm impeller, 380V 700W rating

Fans

Fans D2D160-BE02-14 380V 700W 1195m³/h centrifugal blower

SKU CH-YYXE-EDE7S MPN D2D160-BE02-14

A 380 V centrifugal blower delivering 1195 m³/h at 700 W with maintenance-free double ball bearings for ABB inverter cooling

  • High airflow of 1195 m³/h for effective cooling
  • 380 V three-phase supply suits industrial power networks
  • 700 W motor delivers strong pressure at 450 Pa
  • Maintenance-free double ball bearings extend service life
  • Wide -25 °C to +55 °C operating range handles harsh environments

Industrial centrifugal blower for ABB drives

The Fans D2D160-BE02-14 is a 380 V centrifugal blower rated at 700 W and 1195 m³/h airflow. It is built for ABB inverter cooling in cement plants, chemical facilities, HVAC installations, power stations and marine environments where reliable heat dissipation is critical.

Sustained-load behaviour

At 2700 rpm the blower develops 450 Pa static pressure while operating continuously between -25 °C and +55 °C. The double ball bearing assembly is maintenance-free and the all-metal cold-rolled plate housing resists vibration in compressors, cranes, elevators and cooling towers.

Direct replacement fitting for existing mounts

The 160 mm blade diameter matches the original ABB drive aperture so the unit bolts in without modification. Installers must verify 380 V three-phase supply and 50 Hz frequency; the 2.2 A nameplate current at 230 V reference does not apply to this voltage variant.

Highlights

  • High airflow of 1195 m³/h for effective cooling
  • 380 V three-phase supply suits industrial power networks
  • 700 W motor delivers strong pressure at 450 Pa
  • Maintenance-free double ball bearings extend service life
  • Wide -25 °C to +55 °C operating range handles harsh environments

Specifications

No published specifications for this item yet.

Questions about this item

How loud is the 64 dB noise index when this 380 V blower runs continuously?

At 64 dB the D2D160-BE02-14 produces a moderate industrial hum comparable to a busy office; the maintenance-free double ball bearings keep the sound steady over long shifts.

What power supply and mounting provisions must I already have for this 700 W centrifugal unit?

You need a three-phase 380 V 50 Hz supply capable of 2.2 A and a mounting face that accepts the 160 mm blade diameter housing.

Will the 1195 m³/h airflow and 450 Pa pressure match the cooling needs of an older ABB inverter cabinet?

Yes, the fan is specified as a direct replacement for ABB drive ventilation, delivering 1195 m³/h at 450 Pa across the -25 to +55 °C range.
