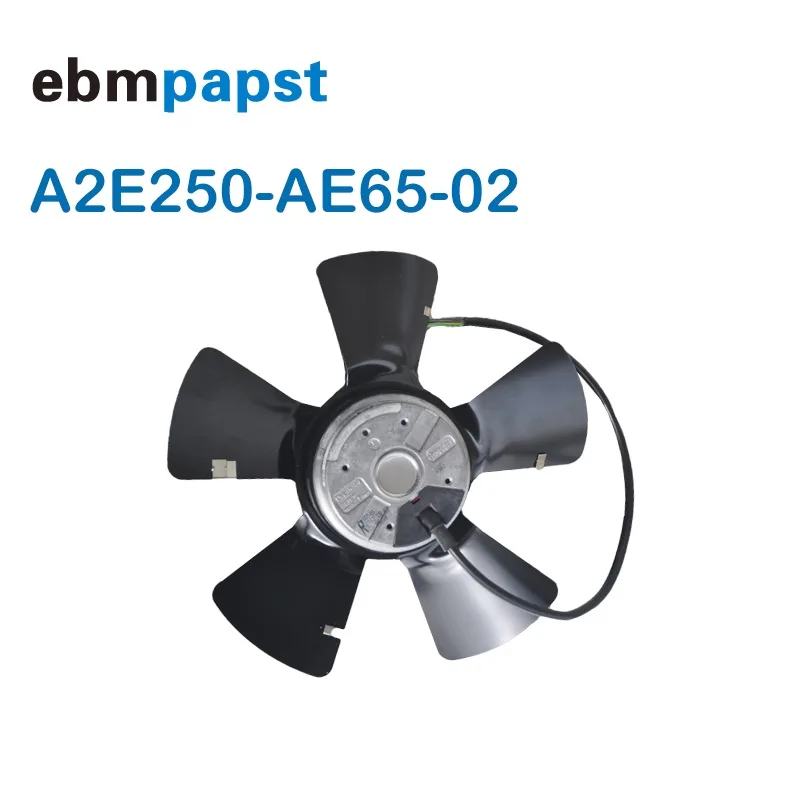

Silver metal axial fan with black blades and wire leads

Fans

Fans A2E250-AE65-02 outer rotor axial flow fan 250*82mm

SKU CH-W71H-GJJ13

230 V AC single-phase axial fan moves up to 35000 m³/h at 2550–2750 rpm with 115–175 W draw and CE/UL approval

  • Space-saving design fits tight enclosures with 250 mm by 82 mm footprint
  • High airflow reaches 35000 m³/h for effective heat exchange
  • Wide voltage tolerance operates at 230 VAC across 50 Hz and 60 Hz
  • Low noise suits noise-sensitive environments with optimised axial blade profile
  • Broad temperature range runs from -25 °C to 55 °C for harsh conditions

Industrial axial fan for heat-exchange systems

This 250 mm outer-rotor axial fan moves air through heat exchangers in industrial equipment. Its compact installation depth suits tight enclosures where space is limited. The unit runs on single-phase 230 VAC power at 50 or 60 Hz. It is built for continuous duty in HVAC and process-cooling applications.

Check voltage frequency and mounting before ordering

Verify that your supply matches 230 VAC at 50 Hz or 60 Hz and that a 4 µF 400 VDB capacitor is fitted. Confirm the 250 mm diameter and 82 mm depth fit the available cut-out and clearance. Ensure the operating ambient range of -25 °C to 55 °C covers the installation environment. The fan draws up to 0.74 A running and 0.9 A starting.

Thermal and acoustic profile in normal use

At 50 Hz the motor runs at 2550 rpm consuming 115 W and producing a maximum back pressure of 150 Pa. At 60 Hz speed rises to 2750 rpm with power draw of 165 W and back pressure of 130 Pa. The external-rotor design keeps noise low while maintaining high airflow efficiency. Full speed control is available via analog or serial interface.

Highlights

  • Space-saving design fits tight enclosures with 250 mm by 82 mm footprint
  • High airflow reaches 35000 m³/h for effective heat exchange
  • Wide voltage tolerance operates at 230 VAC across 50 Hz and 60 Hz
  • Low noise suits noise-sensitive environments with optimised axial blade profile
  • Broad temperature range runs from -25 °C to 55 °C for harsh conditions

Specifications

No published specifications for this item yet.

Questions about this item

What comes with the A2E250-AE65-02 fan and is a capacitor included?

The fan is supplied as a single unit. A 4 µF 400 VDB capacitor is required for operation and is not included with the fan.

Which speed and power rating should I select for 50 Hz versus 60 Hz mains?

At 50 Hz the fan runs at 2550 rpm drawing 115 W and 0.51 A. At 60 Hz it runs at 2750 rpm drawing 165 W and 0.74 A. Choose the row matching your supply frequency.

What does the 2550 rpm figure mean for airflow in my system?

At 2550 rpm on 50 Hz the fan delivers up to 35000 m³/h free-air flow. Actual airflow will be lower depending on system back pressure up to a maximum of 150 Pa.
