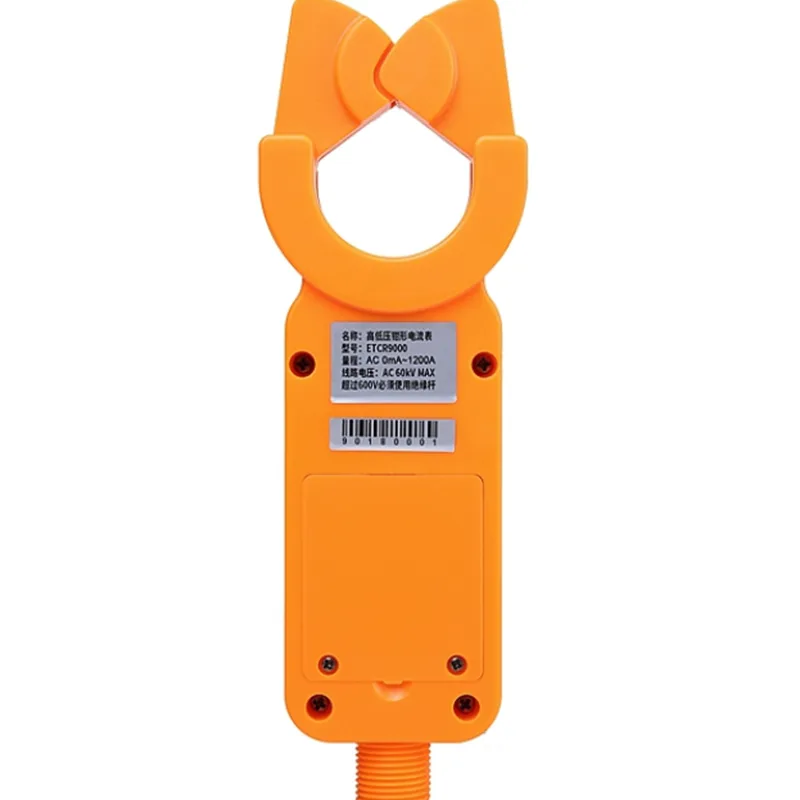

Red clamp meter with 48mm jaw and insulation rod attachment

ETCR

ETCR 9000 High/Low Voltage Clamp Meter 0.0mA~1200A 99 Groups 48mm CT

SKU CH-ZRVN-0ZG21 MPN 9000

Measures AC current from .0 mA to 1200 A on lines up to 60 kV insulated or 35 kV bare using a 48 mm clamp with 99-group data storage

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Measures AC current from 0.0mA to 1200A for high and low voltage lines
  • Stores up to 99 data groups for later review and analysis
  • 48mm clamp opening fits a wide range of conductor sizes
  • Tests insulated wires up to 60kV and bare wires up to 35kV with insulation rod
  • Operates as a precision low-voltage clamp meter without the insulation rod

Dual-Range Clamp Meter for HV and LV Lines

The ETCR 9000 measures AC current from 0.0mA to 1200A on both high-voltage and low-voltage conductors. With the insulation rod attached it reads insulated cables up to 60kV and bare wires up to 35kV. Without the rod it functions as a high-accuracy low-voltage clamp meter. The 48mm CT aperture accepts a wide range of cable sizes.

Hand-Held Operation with Rod Extension

The instrument combines a special clamp head with a 5m high-voltage insulation rod for safe remote measurement above 600V. Peak hold and data hold capture transient and steady readings during live-line work. The clamp mechanism opens and closes by pushing or pulling the rod, allowing single-person attachment and removal without direct contact.

On-Board Storage for Field Sessions

Ninety-nine data groups can be stored internally, letting technicians log multiple measurement points before downloading. The red handheld unit ships in a single box with a three-year parts and one-year labor coverage period. No wireless interface or PC software is mentioned, so recorded values are reviewed on the meter itself.

Highlights

  • Measures AC current from 0.0mA to 1200A for high and low voltage lines
  • Stores up to 99 data groups for later review and analysis
  • 48mm clamp opening fits a wide range of conductor sizes
  • Tests insulated wires up to 60kV and bare wires up to 35kV with insulation rod
  • Operates as a precision low-voltage clamp meter without the insulation rod

Specifications

BrandETCR
Model9000
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How do I install the ETCR 9000 clamp meter for high-voltage work and what step is often missed?

Connect the clamp to the supplied insulation rod before measuring lines above 600 V; the rod must be attached before clamping the conductor.

What maintenance or replacement will the ETCR 9000 need later?

The clamp unit itself has no user-replaceable parts; periodic calibration checks are the only scheduled service.

What limit appears first during sustained high-current measurement with the ETCR 9000?

The 1 200 A measurement ceiling is reached before any thermal or time restriction.
