ETCR 7350 Rogowski Coil Clamp Power Meter 0.0A~6000A

Three-phase power meter for field engineers

The ETCR 7350 uses a flexible Rogowski coil to measure three-phase AC voltage, current, active power, reactive power, apparent power, total power, phase angles, frequency, electric energy and phase sequence. It covers a current range of 0.0A~6000A and a voltage range of 0.00V~600V. Phase measurement spans 0.0°~360°. Data storage holds 200 groups for later review.

Flexible coil and USB data transfer

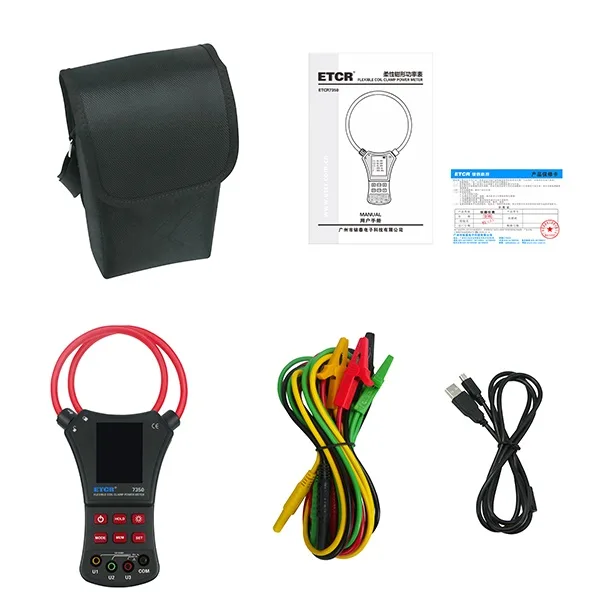

The Rogowski coil is small and light, making it convenient for field measurement around large conductors or in tight spaces. Coil size is f200mm and can be customised to user requirements. Multiple parameters appear on the same screen for easy operation. A USB interface allows stored data to be uploaded to a computer. The unit ships without batteries due to air-shipping restrictions; users must source them locally.

Upgrades from rigid clamp meters

This meter replaces rigid-jaw clamp tools when access to large busbars, crowded panels or non-standard conductor shapes is required. The flexible coil wraps where hard jaws cannot fit. The jump is worth it for technicians who regularly measure high currents up to 6000A and need simultaneous multi-parameter display with 200-group logging. It is not for users who only need basic single-phase current checks or who require an included battery pack and English manual in the box.
