White rectangular in-wall timer switch with six preset buttons and manual override, screwless wall plate included

Enerlites HET06A-R-W electrical timer switch 30 min 120 V 15 A 800 W white

SKU CH-PWKB-Z62NM MPN HET06A-R-W

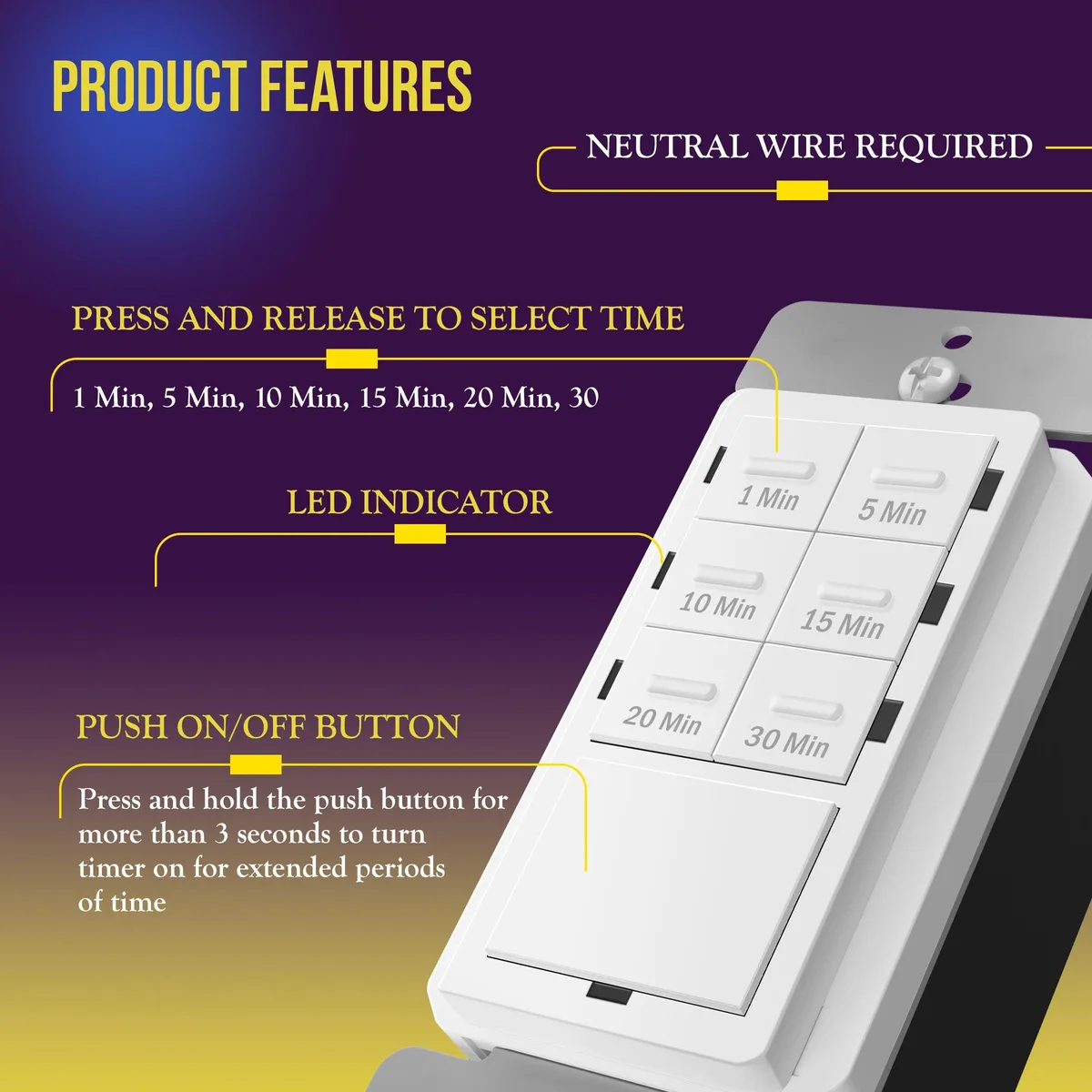

In-wall countdown timer automatically shuts off fans, motors and lights after 1, 5, 10, 15, 20 or 30 minutes with a permanent LED locator light

  • TypeEmbedded, Wire Leads, In-Wall Neutral
  • Voltage12
  • Amps15
  • Compatibility/FitmentVentilation fans, ceiling fans, motors, lights (incandescent
  • Timing RangePreset Time with Manual Override
  • Pole ConfigurationSPDT
  • Automatically shuts off fans and lights after the set time to save energy
  • Six preset countdown buttons from 1 min to 30 min for flexible control
  • Replaces a standard wall switch with neutral wire required for easy installation
  • Built-in LED night-light stays on for visibility in dark rooms
  • UL Listed and CSA Certified for safe 120 V 15 A 800 W operation

In-wall countdown timer for fans and lights

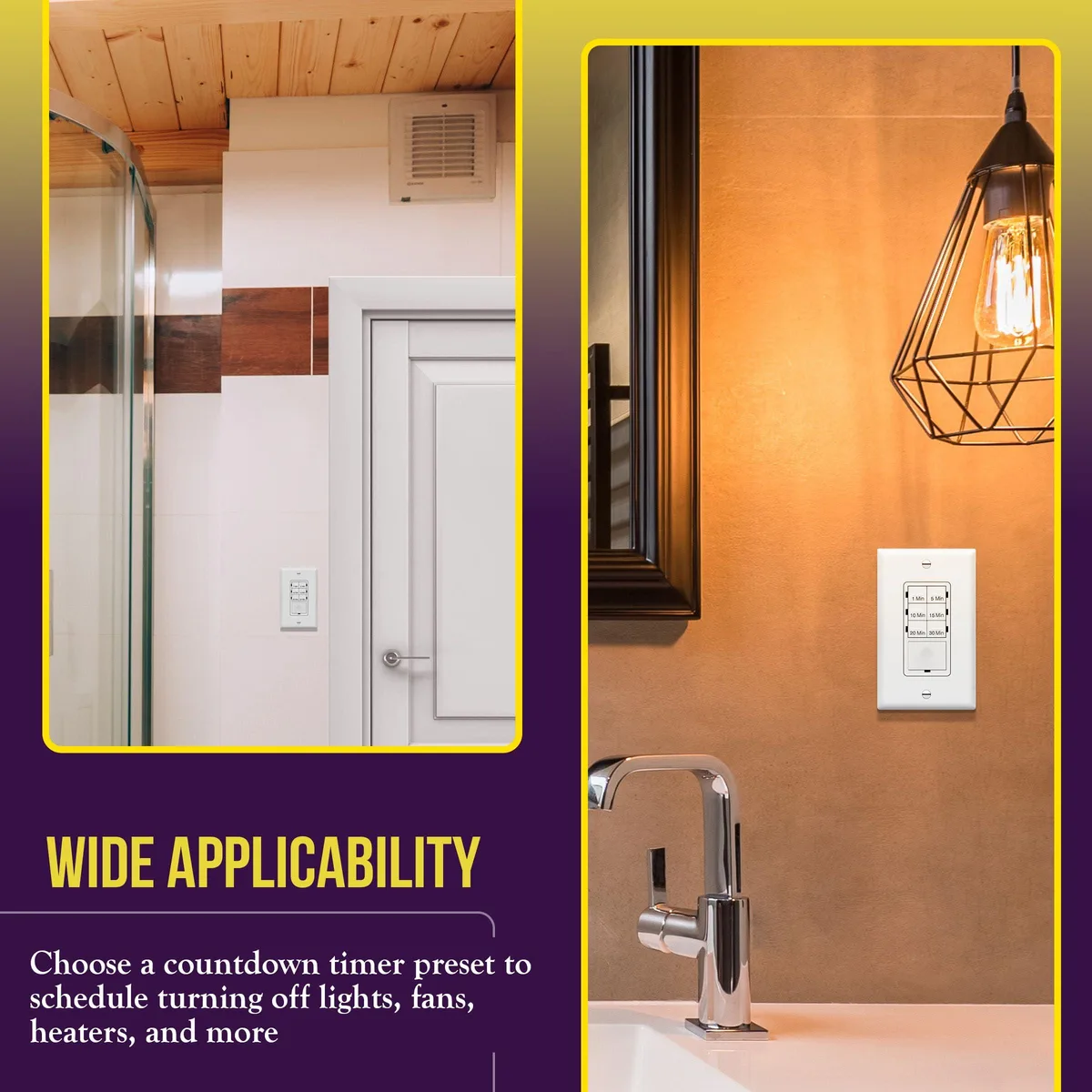

The Enerlites HET06A-R-W is a 120 V, 15 A timer switch designed to automatically shut off ventilation fans, ceiling fans, motors and lights after a preset interval. It suits residential bathrooms, laundry rooms, closets and garages where lights or fans are often left running longer than necessary.

Neutral wire required for installation

Verify that a neutral conductor is present in the switch box before ordering; the device will not operate without it. The unit fits a standard single-gang opening and includes a screwless wall plate, but it is not compatible with three-way switching circuits.

Sustained load handling up to rated limits

The switch is rated for 800 W incandescent, 800 VA fluorescent or LED/CFL, and 1/4 HP motor loads. Under continuous operation the internal relay and contacts remain within their thermal limits for the full 30-minute maximum cycle, and the always-on LED night-light draws negligible power.

Highlights

  • Automatically shuts off fans and lights after the set time to save energy
  • Six preset countdown buttons from 1 min to 30 min for flexible control
  • Replaces a standard wall switch with neutral wire required for easy installation
  • Built-in LED night-light stays on for visibility in dark rooms
  • UL Listed and CSA Certified for safe 120 V 15 A 800 W operation

Specifications

TypeEmbedded, Wire Leads, In-Wall Neutral
Voltage12
Amps15
Compatibility/FitmentVentilation fans, ceiling fans, motors, lights (incandescent, fluorescent, LED/CFL bulbs)
Timing RangePreset Time with Manual Override
Pole ConfigurationSPDT
Horsepower800 watts
Watts800 watts
Number of ReceptaclesIn-Wall Neutral, HET06A-R-W
Receptacle Type15 amps, 120 volts_of_alternating_current
Size/Dimensions1.7 in x 1.47 in x 2.75 in
Color/FinishWhite
StyleWire Leads
Standards/CertificationsUL Listed/CSA Certified
Switch TypePush Button
Maximum Time SettingPreset Time with Manual Override
Number of Poles1-way
Contact Form1-way
Enclosure TypeIP00, Embedded
Input Voltage120 volts_of_alternating_current
MountingEmbedded
Operating Temperature Range32 degrees_fahrenheit to 131 degrees_fahrenheit
FeaturesVentilation fans, ceiling fans, motors, lights (incandescent, fluorescent, LED/CFL bulbs)
BrandENERLITES
ModelHET06A-R-W
Item Count12 pack
Selling UnitIn-Wall Neutral
Commercial/ResidentialVentilation fans, ceiling fans, motors, lights (incandescent, fluorescent, LED/CFL bulbs)
Part NumberHET06A-R-W

Questions about this item

What is in the box and does the neutral wire come with it?

The package includes the timer switch, a screwless wall plate and wire leads for connection; a neutral wire must already exist in the wall box and is not supplied.

Which timing option should I choose for a bathroom fan?

The switch offers six preset countdown buttons — 1, 5, 10, 15, 20 and 30 minutes — press the one that matches the run time you want.

What does the 800 W rating mean for my LED bulbs?

It is the maximum load the switch can control; your LED or CFL circuit must not exceed 800 watts total.
