Six black PCIe 1X to 16X riser cards with red USB 3.0 cables and SATA power connectors

EN-Labs

EN-Labs 009S PCIe 1X to 16X Riser Cable 60cm USB 3.0 SATA 6-Pack

SKU CH-14FM-TE7SK

Connects a graphics card to a PCIe x1 slot using a 60 cm USB 3.0 cable and includes SATA power input

  • TypeGraphics Extension Adapter Card
  • ColorBlack
  • SpecificationsVer 009S PCIe 1X to 16X Riser Card 4 High Quality Solid Capa
  • FeaturesThe perfect solution for setting up Ethereum mining rigs, wh

Style 6-Pack

  • Extends GPU reach with 60 cm USB 3.0 cable
  • Stable power delivery via four solid capacitors
  • Triple power input: Molex, SATA and 6-pin PCI-E
  • Fits x1, x4, x8 and x16 PCIe slots
  • Plug-and-play setup with no driver installation needed

PCIe 1X to 16X riser kit

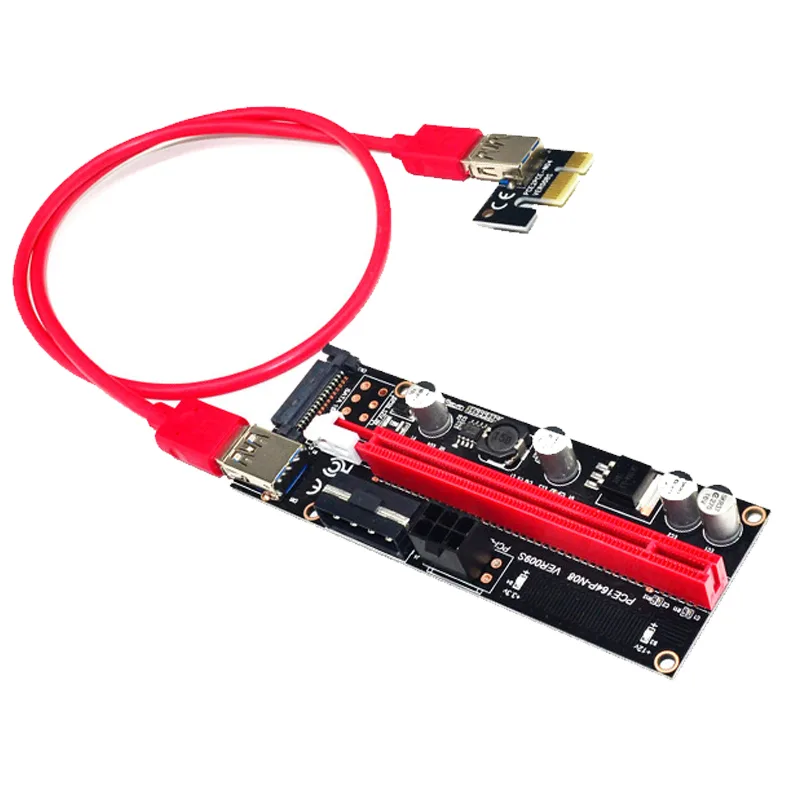

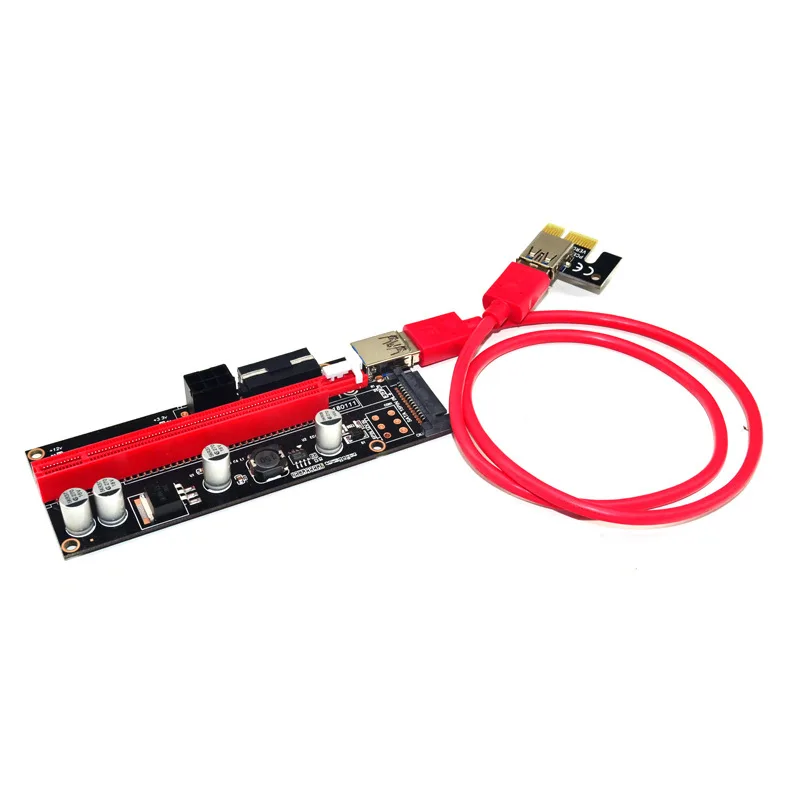

The EN-Labs 009S kit provides six riser cables that convert a single PCIe x1 slot into a full-length x16 connection for graphics cards. Each unit includes a 60 cm USB 3.0 cable and a powered adapter board fitted with four solid capacitors. The pack is aimed at builders assembling multi-GPU mining rigs or test benches where motherboard slot spacing is limited.

Capacity and headroom

Every adapter accepts one x1, x4, x8 or x16 graphics card and draws auxiliary power through a single Molex, SATA or 6-pin PCIe connector integrated on the board. The four onboard capacitors and voltage-regulation components deliver stable current for typical mining workloads, while the surface-mounted fuse protects against short circuits. Running multiple high-power cards simultaneously will exceed the adapter’s current rating and trip the protection.

USB 3.0 cable limits

The 60 cm USB 3.0 link carries the PCIe signalling between the motherboard and the riser board, so signal integrity depends on cable quality and length. The supplied cable supports the 3.0 data rate but cannot be extended further without risking link errors or reduced bandwidth. Only one of the three power inputs should be connected at any time; plugging two or more together will cause a short.

Highlights

  • Extends GPU reach with 60 cm USB 3.0 cable
  • Stable power delivery via four solid capacitors
  • Triple power input: Molex, SATA and 6-pin PCI-E
  • Fits x1, x4, x8 and x16 PCIe slots
  • Plug-and-play setup with no driver installation needed

Specifications

BrandEN-Labs
Model009s
TypeGraphics Extension Adapter Card
ColorBlack
SpecificationsVer 009S PCIe 1X to 16X Riser Card 4 High Quality Solid Capacitors, Integrate Molex 4pin, SATA and 6-pin PCI-E interface on PCB 2FT USB 3.0 Cable USB cable color of Red, Blue,Black or white will be sent randomly- Function is the same 6 Pack/Lot
FeaturesThe perfect solution for setting up Ethereum mining rigs, whether small open air rigs or large rack based miners. 4 High Quality Solid Capacitors for stable and safe power delivery. Multiple Voltage Regulation Components (Voltage Regulating Diode and Linear Regulator) Overcurrent Protection (Surface Mounted Fuse) to safeguard your components in the event of a short circuit. Thin and fast USB 3.0 cable available to connect PCI-E 1X and PCI-E 16X sides for more free installation and faster data transfer for graphics card. Integrate Molex 4pin, SATA and 6-pin PCI-E power interface on PC

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this riser cable work with the PCIe x1 slots on my older motherboard?

The card fits x1, x4, x8 and x16 PCIe slots and connects through a 60cm USB 3.0 cable.

How can I verify the 4 solid capacitors and overcurrent protection are functioning after installation?

The board includes 4 high-quality solid capacitors, voltage regulation components and a surface-mounted fuse; stable GPU operation under load indicates they are working.

Which power connectors come on the 6-pack riser boards and what must I supply separately?

Each board integrates Molex 4-pin, SATA and 6-pin PCI-E interfaces; you only need to connect one of them from your power supply per riser.
