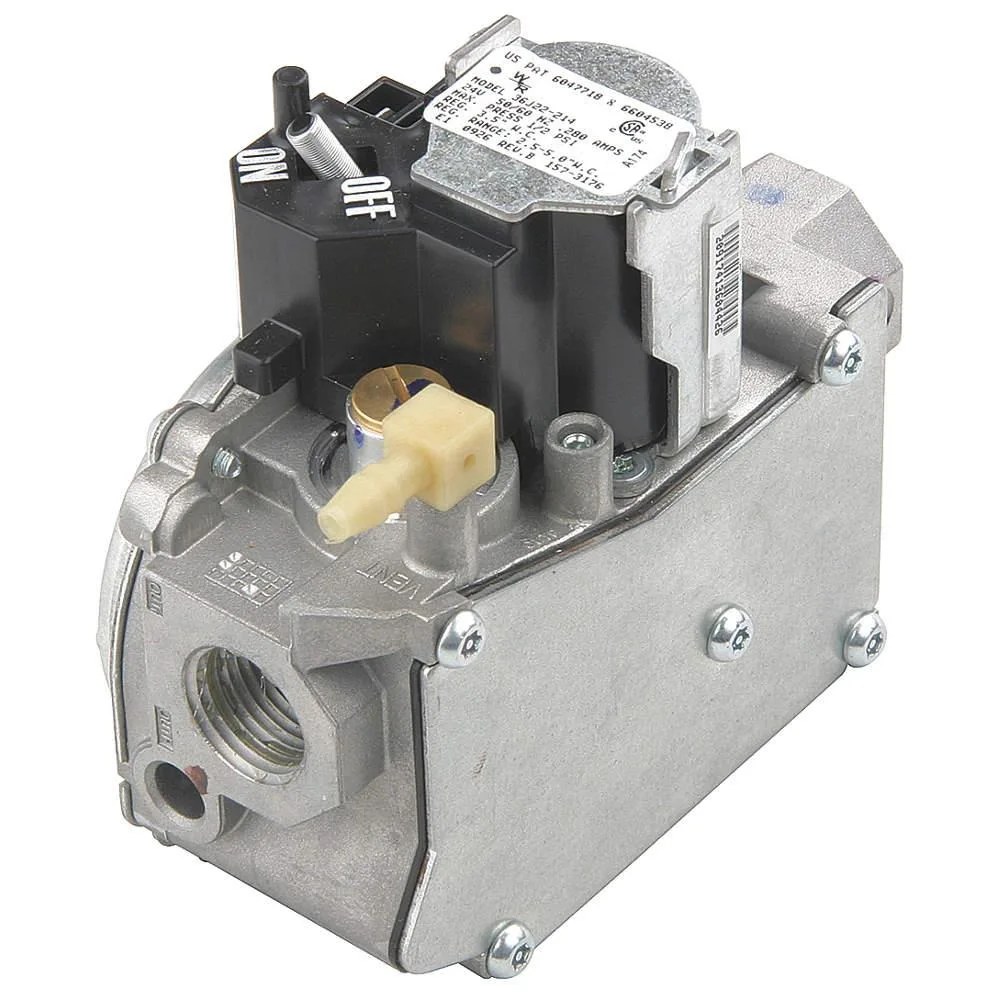

White-Rodgers 36J24-214 gas valve, compact metal body with quick-connect terminals and conversion kit

Emerson Climate Technologies

Emerson Climate Technologies White-Rodgers 36J24-214 HVAC Control

SKU CH-CF1S-GBN2K

A gas valve for natural gas or liquid propane with hot-surface ignition, 24 V operation, slow-opening action and a straight-through flow path

  • Hot-surface ignition lights burners reliably without a standing pilot
  • Dual-fuel design operates on natural gas or liquid propane with included conversion kit
  • Slow-opening action at 24 V reduces ignition surge and noise
  • Straight-through flow path with 140 000 BtuH capacity serves larger heating loads
  • Quick-connect terminals and built-in pressure taps simplify installation and service

Gas Valve for Natural Gas and LP

The White-Rodgers 36J24-214 is a combination gas valve designed for residential and light commercial heating systems. It accepts both natural gas and liquid propane with a maximum heating capacity of 140,000 BtuH. A conversion kit is included for fuel switching.

Upgrade from Single-Fuel or Fast-Opening Valves

This model replaces valves limited to one fuel type or those lacking slow-opening operation. The 24 V control and 0.3 A current draw suit modern integrated furnace boards. The jump is worth it when a system requires dual-fuel flexibility and regulated ignition timing.

Steady Flow with Integrated Regulation

Under sustained demand the built-in pressure regulator maintains consistent outlet pressure. Quick-connect terminals and straight-thru flow simplify wiring and piping. Inlet and outlet pressure taps allow verification without extra fittings.

Highlights

  • Hot-surface ignition lights burners reliably without a standing pilot
  • Dual-fuel design operates on natural gas or liquid propane with included conversion kit
  • Slow-opening action at 24 V reduces ignition surge and noise
  • Straight-through flow path with 140 000 BtuH capacity serves larger heating loads
  • Quick-connect terminals and built-in pressure taps simplify installation and service

Specifications

BrandWHITE-RODGERS

Questions about this item

What pipe size and flow direction does the 36J24-214 gas valve require?

The valve uses a straight-thru flow pattern and connects to 1/2 in piping for both natural gas and liquid propane installations.

How do I wire the 24 V quick-connect terminals and set the slow-opening feature?

Connect 24 V power to the quick-connect terminals; the valve draws 0.3 A and its slow-opening function is factory-set, so no field adjustment is needed.

When should the pressure regulator or conversion kit be replaced on this valve?

Replace the included pressure regulator if outlet pressure drifts from spec, and use the supplied conversion kit only when switching between natural gas and liquid propane.
