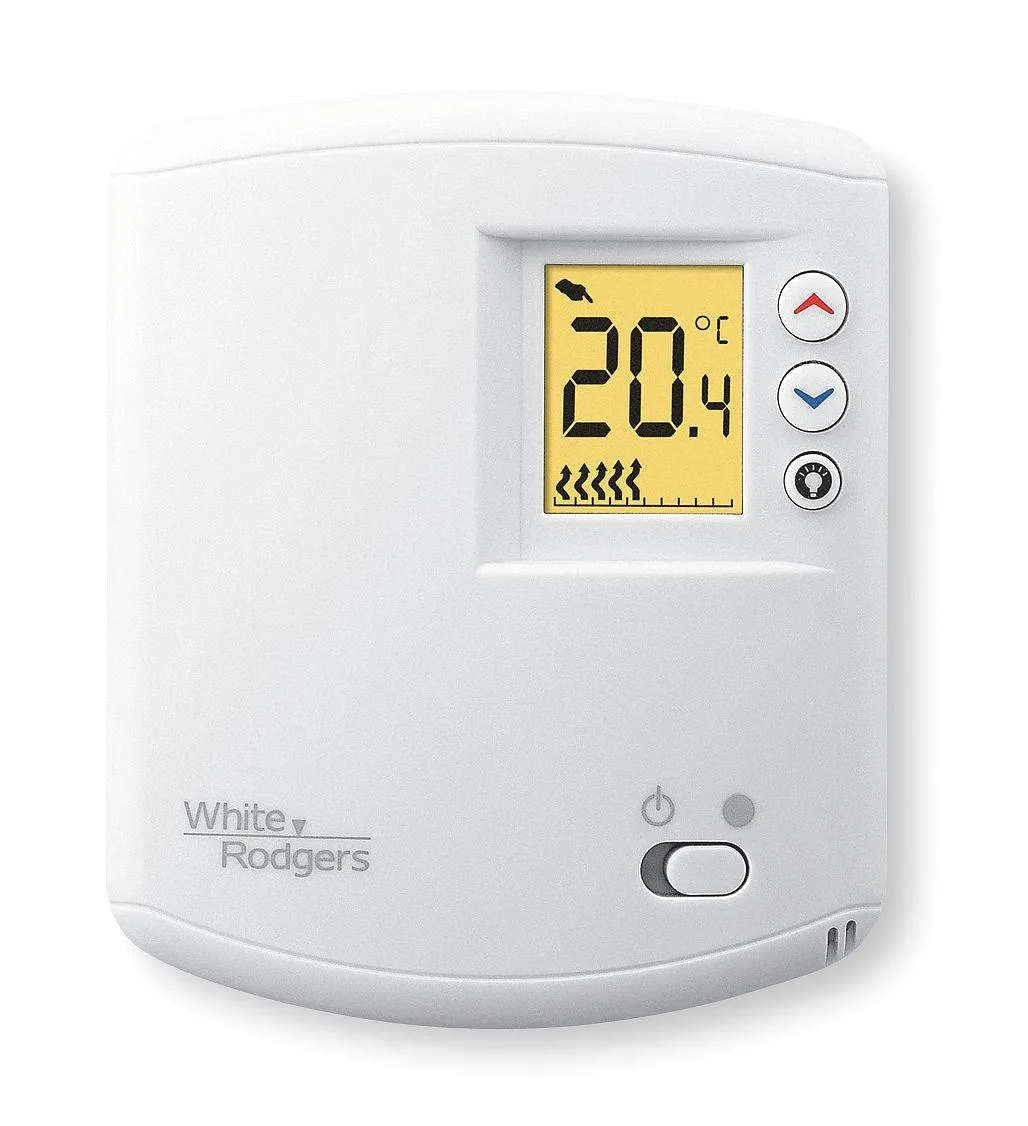

Emerson Climate Technologies 1E65-144 HVAC Control, Open on Rise, SPST, 45-90°F, 120-240V AC, 16.7A

Purpose and Fit

The Emerson 1E65-144 is a line-voltage thermostat built for electric heating systems that run on 120 to 240 V AC. It suits installers and facility managers who need a simple, single-stage control with a 45 to 90 °F range and a 16.7 A switching capacity. The vertical-mount, SPST switch opens on temperature rise, making it a direct fit for baseboard heaters, unit heaters and similar resistive loads.

Replacement Context

This unit replaces older mechanical line-voltage stats that lack digital readout or tighter differential control. The 1 °F differential and 0.2 °F sensitivity reduce temperature swing compared with vintage bimetal models, so the upgrade is worthwhile when occupants notice wide cycling or when a failed mechanical switch must be swapped without rewiring. It is not for low-voltage (24 V) systems, multi-stage heating, cooling applications or any circuit that requires a change-over contact.

Interface Limits

The SPST contact set handles up to 16.7 A at the rated voltage, so the connected heater load must stay within that current. The thermostat itself draws power from the line it switches; no separate transformer or low-voltage wiring is involved. Because the switch action is open-on-rise only, it cannot directly control a cooling circuit or a heating load that requires a closed-on-rise signal. The digital display shows set-point and room temperature but offers no programming, communication bus or remote-sensor input.
