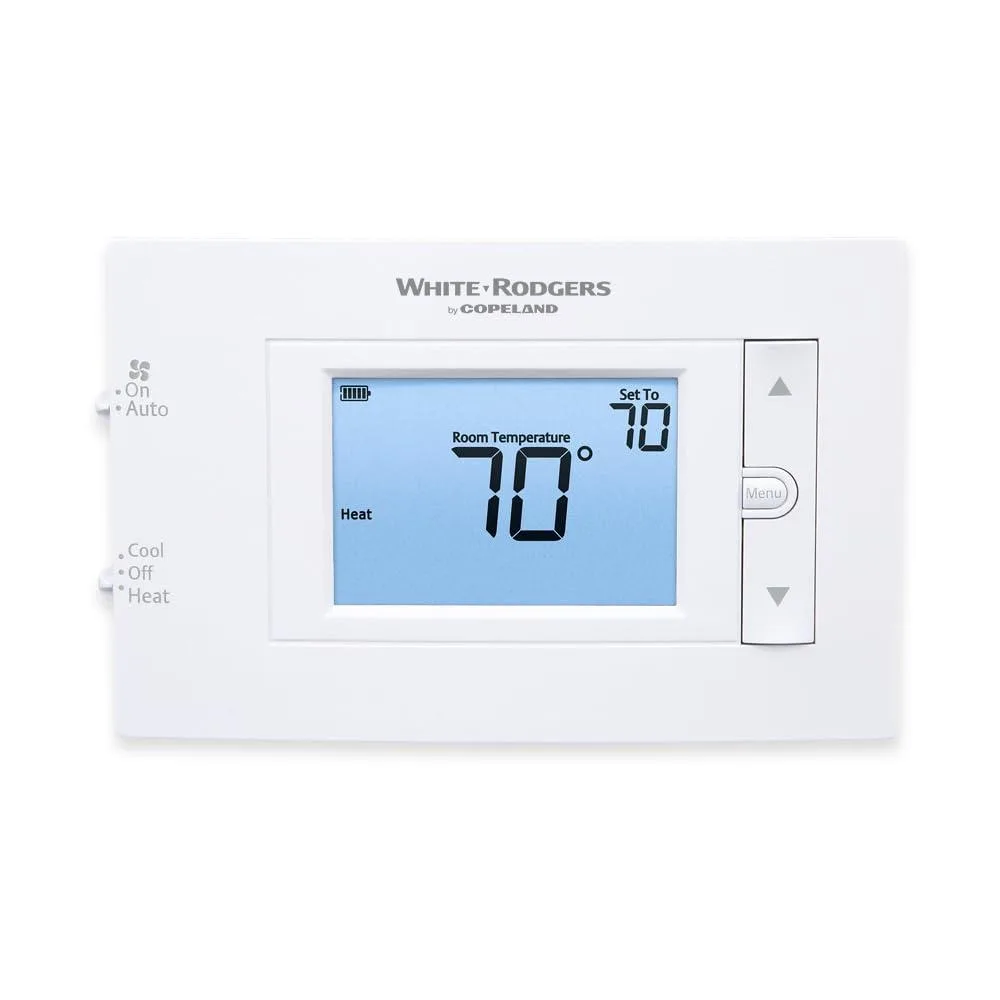

White rectangular wall thermostat with push buttons and backlit display

Emerson 1F83C-11NP Conventional (1H/1C) Non-Programmable HVAC Control, White

SKU CH-8YY0-WZFZC MPN 1F83C-11NP

Manual non-programmable thermostat for single-stage heating and cooling systems with a large backlit display and keypad lockout

  • TypeManual, Push Button

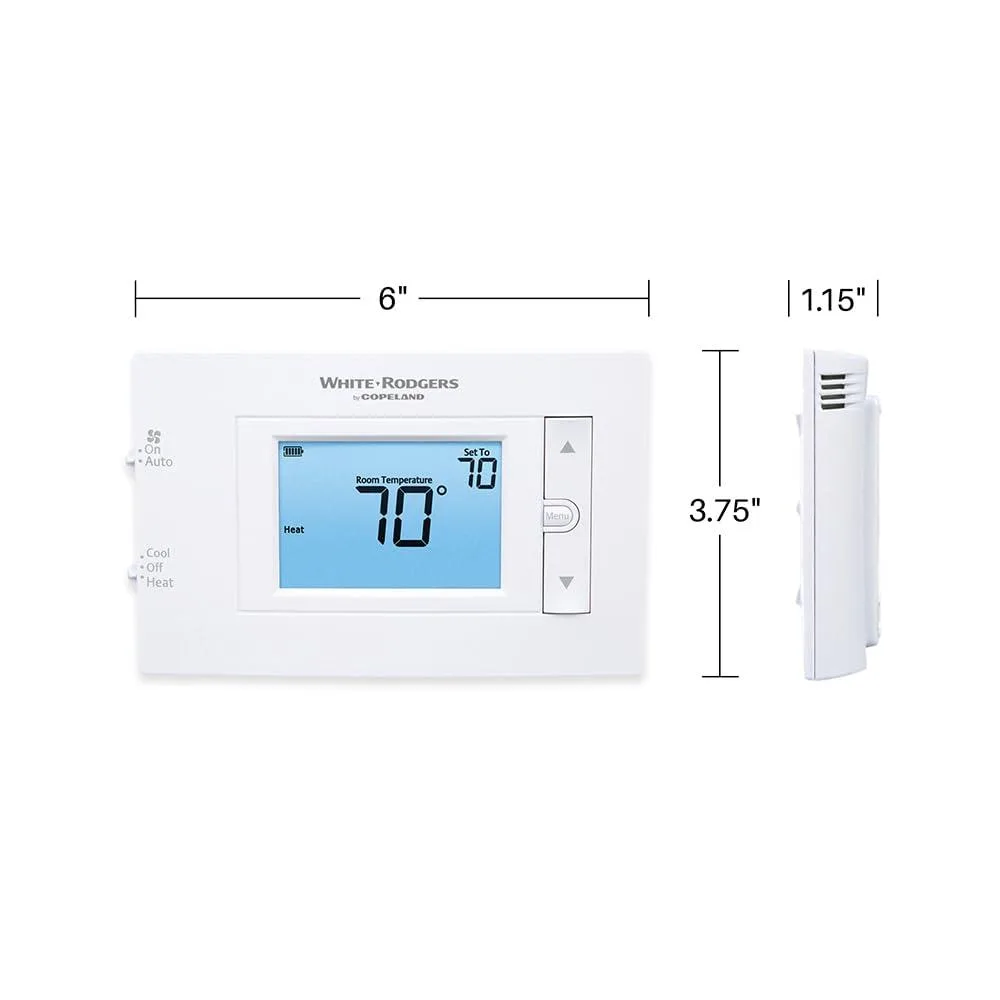

  • Size/Dimensions6 in x 1.125 in x 3.75 in
  • ColorWhite
  • Voltage125VAC
  • Mount TypeWall Mount
  • Relay Contact1F83C-11NP (new model), 24 volts
  • Simple manual control with push-button operation
  • Large backlit display for clear low-light reading
  • Compatible with single-stage heating and cooling systems
  • Built-in level and standard footprint for quick installation
  • Keypad lockout and adjustable temperature limits prevent tampering

Conventional 1H/1C HVAC control

This thermostat provides manual temperature control for single-stage heating and cooling systems. It mounts on a wall and operates at 125VAC with a 24-volt relay contact. The unit features a large backlit display and a built-in level for straight installation. It is sold in a 12-pack case.

Buyers who need scheduling or multi-stage support

The non-programmable design means there are no daily or weekly schedules and no automatic changeover periods. It does not support heat pump auxiliary heat, line voltage baseboard heating or proprietary communicating protocols. Installers requiring those functions should select a different model.

1H/1C single-stage compatibility

The thermostat works with conventional gas, oil or electric systems up to one stage of heating and one stage of cooling. It also supports heat pump systems without auxiliary heat, millivolt and three-wire zone valve applications. Compatibility with your existing wiring determines whether this is the correct part.

Highlights

  • Simple manual control with push-button operation
  • Large backlit display for clear low-light reading
  • Compatible with single-stage heating and cooling systems
  • Built-in level and standard footprint for quick installation
  • Keypad lockout and adjustable temperature limits prevent tampering

Specifications

TypeManual, Push Button
BrandWhite-Rodgers, Copeland
Model1F83C-11NP
Size/Dimensions6 in x 1.125 in x 3.75 in
ColorWhite
Voltage125VAC
Mount TypeWall Mount
Relay Contact1F83C-11NP (new model), 24 volts
Standards/Certificationsnot_capable_emitting_rf_energy
Item Count12 pack
Selling Unit1
FeaturesWhite-Rodgers
Part Number1F83C-11NP

Questions about this item

What voltage does the 1F83C-11NP thermostat require for operation?

The thermostat operates on 24-volt relay contacts and is rated for 125VAC supply voltage, suitable for conventional low-voltage HVAC systems.

How much heat does the display generate during continuous daily use?

The large backlit display uses minimal power and does not produce noticeable heat; the unit is designed for wall-mount installation with standard thermal dissipation.

Which existing wiring configurations are compatible with this thermostat?

It works with conventional 1H/1C systems, heat pump 1H/1C without auxiliary heat, gas, oil, electric, millivolt, and 3-wire zone valve systems using standard low-voltage wires.
