ECOELER YWT102 4-Hour Countdown Timer Switch 125V 15A 1800W
Wall-mount countdown timer with eight preset intervals up to four hours, 15 A rating and LED indicator for lights, fans or heaters
- TypeWall Mount, Wire Leads
- Voltage12
- Amps15
- Compatibility/FitmentLights, fans, heaters, LED/CFL/Incandescent bulbs (up to 800
- Timing RangeManual
- Pole ConfigurationWire Leads
- Choose from 8 pre-set countdown times up to 4 hours
- Manual on/off override gives instant control of lights or fans
- LED indicator stays on for easy location in the dark
- ETL listed for safety with LED, CFL, fluorescent and motor loads
- Compact 4.72 in x 1.46 in x 1.65 in fits standard wall boxes
4-Hour Countdown Timer Switch

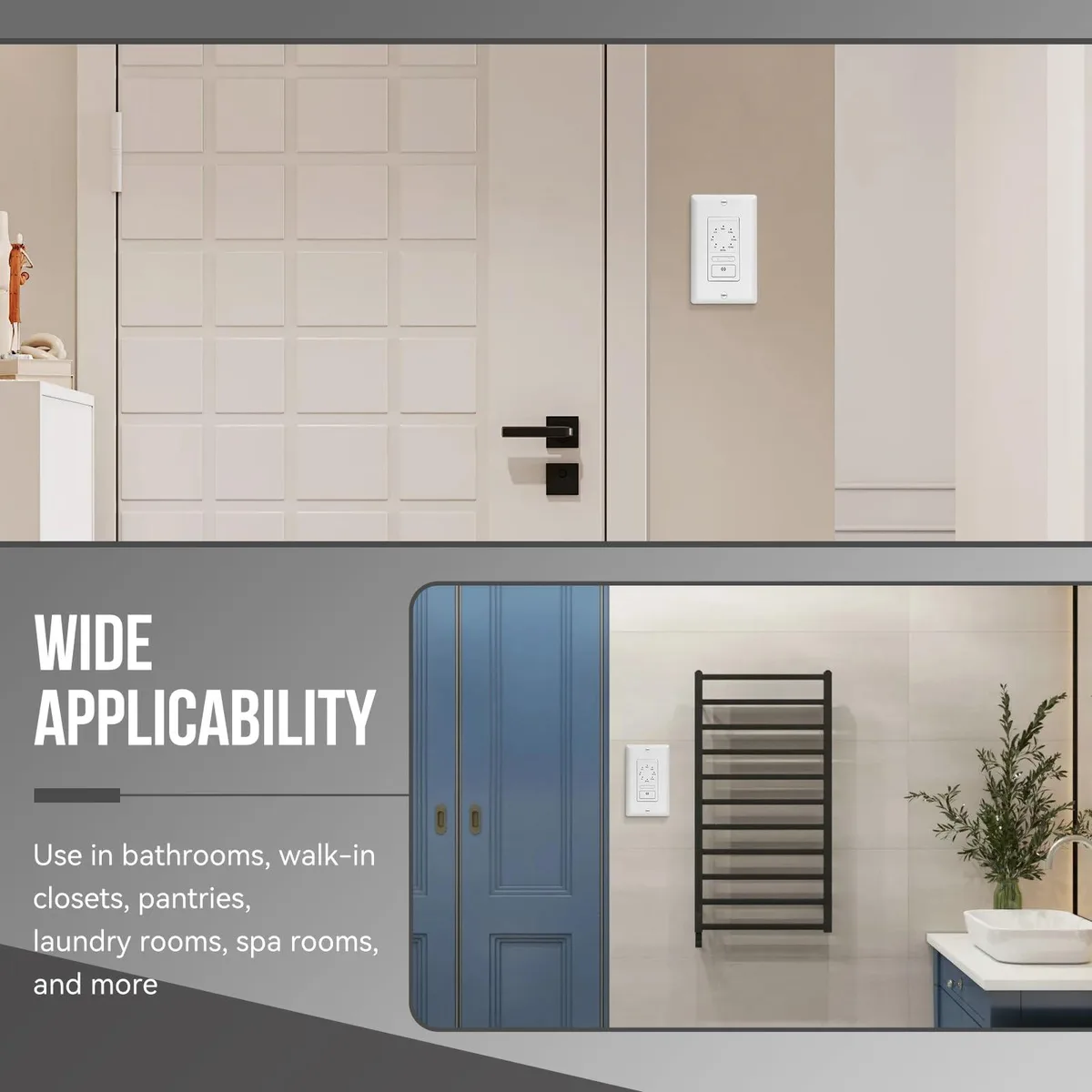

The ECOELER YWT102 is a single-pole wall switch that replaces a standard light switch to provide automatic shut-off. It suits homeowners wanting to prevent lights, fans or heaters from being left on in bathrooms, closets, garages or laundry rooms.
IP40 Wall Mount with Wire Leads
The white thermoplastic body measures 4.72 in x 1.46 in x 1.65 in and fits a standard wall box using wire leads rather than screw terminals. An LED indicator stays illuminated to locate the switch in darkness, while the IP40 enclosure resists dust ingress for indoor reliability.
Upgrade from Manual Toggle Switches

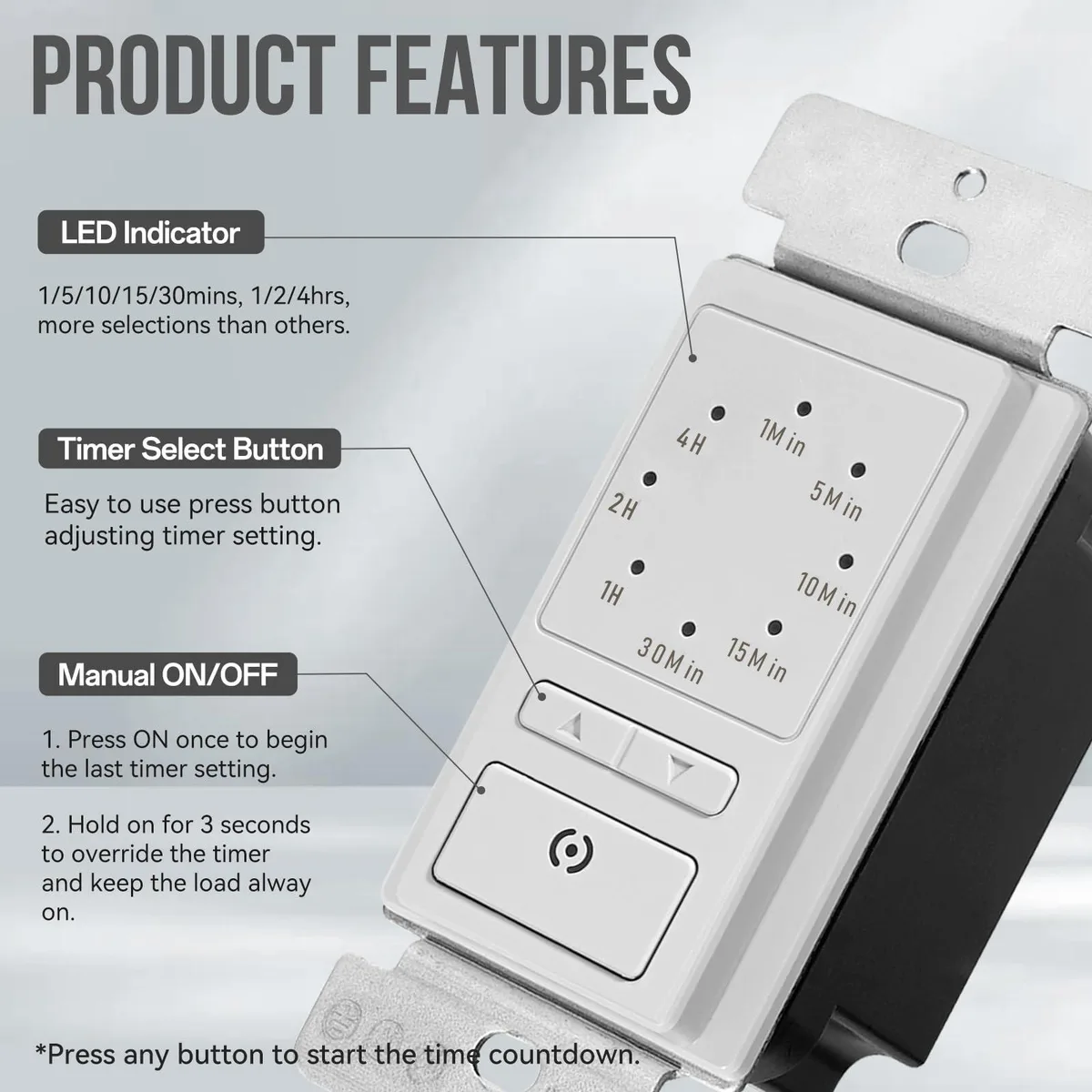

This unit replaces a basic on/off toggle, adding eight pre-set countdowns from 1 minute to 4 hours plus a constant-on mode activated by a long press. The jump is worth it when you need automatic energy saving for loads up to 800 W LED or 1/2 HP motors without rewiring the circuit.
Highlights
- Choose from 8 pre-set countdown times up to 4 hours
- Manual on/off override gives instant control of lights or fans
- LED indicator stays on for easy location in the dark
- ETL listed for safety with LED, CFL, fluorescent and motor loads
- Compact 4.72 in x 1.46 in x 1.65 in fits standard wall boxes
Specifications
| Type | Wall Mount, Wire Leads |
|---|---|
| Voltage | 12 |
| Amps | 15 |
| Compatibility/Fitment | Lights, fans, heaters, LED/CFL/Incandescent bulbs (up to 800W), Fluorescent bulbs (up to 1200VA), Motors (up to 1/2 HP) |
| Timing Range | Manual |
| Pole Configuration | Wire Leads |
| Horsepower | 1800 watts |
| Watts | 1800 watts |
| Number of Receptacles | YWT102 |
| Receptacle Type | 15 amps, 125 volts_of_alternating_current |
| Size/Dimensions | 4.72 in x 1.46 in x 1.65 in |
| Color/Finish | White |
| Style | Wire Leads |
| Switch Type | Push Button |
| Maximum Time Setting | Manual |
| Number of Poles | 1-way |
| Contact Form | 1-way |
| Enclosure Type | IP40, Wall Mount |
| Input Voltage | 125 volts_of_alternating_current |
| Mounting | Wall Mount |
| Operating Temperature Range | 32 degrees_fahrenheit to 131 degrees_fahrenheit |
| Features | Lights, fans, heaters, LED/CFL/Incandescent bulbs (up to 800W), Fluorescent bulbs (up to 1200VA), Motors (up to 1/2 HP) |
| Brand | ECOELER |
| Model | YWT102 |
| Item Count | 12 pack |
| Commercial/Residential | Lights, fans, heaters, LED/CFL/Incandescent bulbs (up to 800W), Fluorescent bulbs (up to 1200VA), Motors (up to 1/2 HP) |
| Parts | 1 Year |
| Labor | 1 Year |
| Part Number | YWT102 |
Questions about this item
What voltage and amperage does the YWT102 timer switch support?
The switch is rated for 125 volts of alternating current at 15 amps, providing a maximum load of 1800 watts for resistive devices.
What wall-box depth and wiring method does the YWT102 require?
The unit measures 4.72 in by 1.46 in by 1.65 in and uses wire leads for connection, so it fits a standard single-gang box with pigtail splices.
How do I wire the YWT102 and which step is commonly missed?
Connect the black lead to line, the red lead to load, and the white lead to neutral; the step often missed is capping the white neutral lead, which the timer needs for its internal circuitry.
