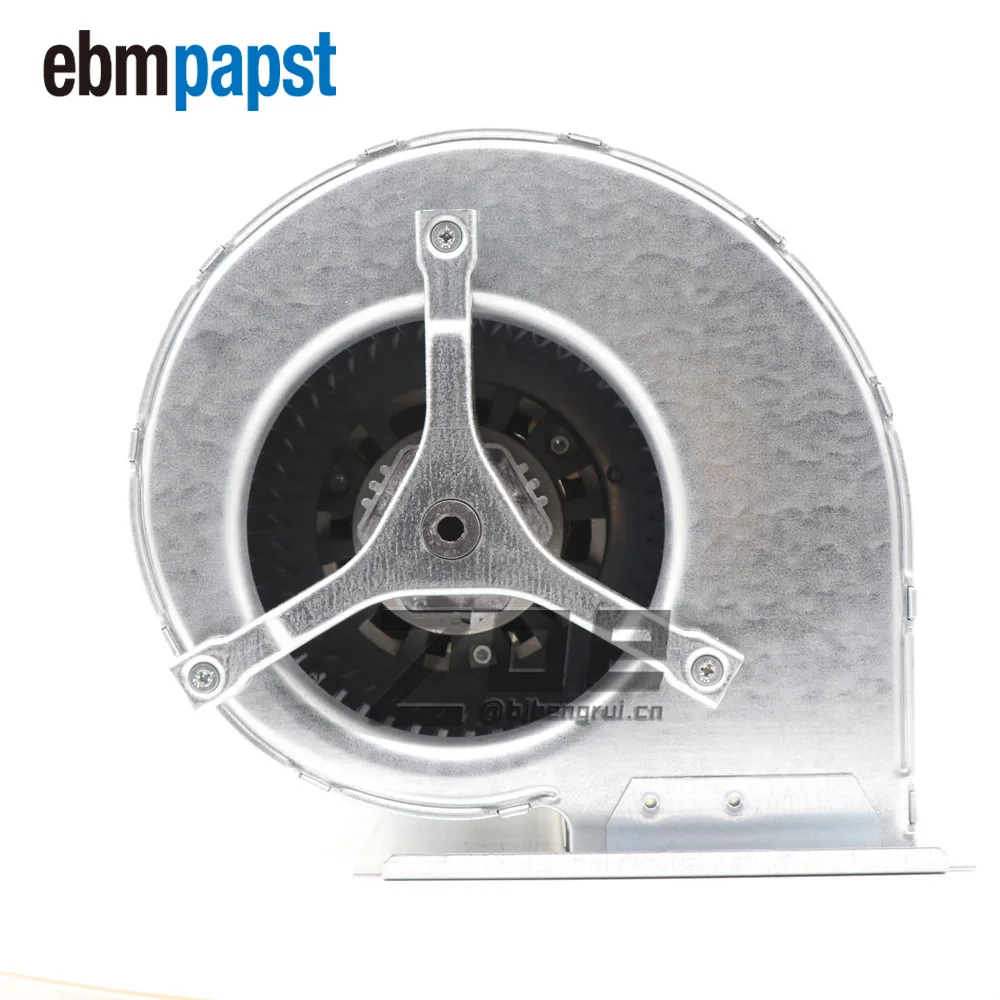

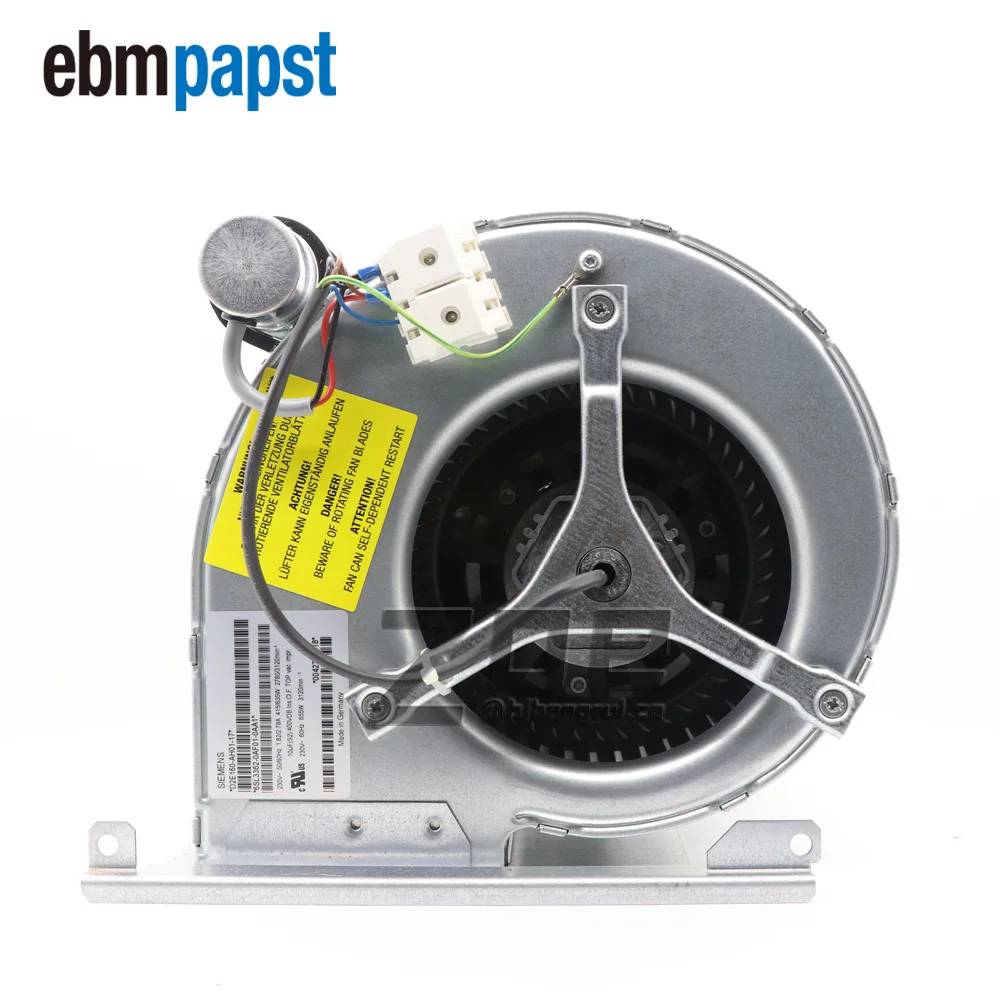

Galvanised steel centrifugal blower, 160 mm housing, ball bearing motor, IP00

Ebm-Papst

Ebm-Papst D2E160-AH01-17 M2E074-LA 230V 410W Blower

SKU CH-2RHD-E94SH MPN No.D2E146-AH01-17/6SL3362-0AF01-0AA1

230 V AC centrifugal blower with ball-bearing motor running at 2780 or 3120 rpm for 415 or 635 W

  • TypeAC centrifugal fan
  • Bearing TypeBall Bearing
  • 230 V AC nominal voltage suits industrial mains
  • 2780 rpm at 50 Hz and 3120 rpm at 60 Hz delivers variable airflow
  • Ball bearing motor ensures long service life
  • Forward-leaning centrifugal impeller generates high static pressure
  • IP00 open design simplifies integration into enclosures

Industrial blower for HVAC systems

The Ebm-Papst D2E160-AH01-17 is a 230 VAC forward-leaning centrifugal blower built for industrial heating, ventilation and air-conditioning installations. It uses a ball-bearing M2E074-LA motor rated for continuous operation across 50 Hz and 60 Hz supplies. The housing and impeller are hot-dip galvanised sheet steel rated IP00 with insulation class F.

Suits fixed 230 V installations needing high

This blower fits machinery and ductwork that can accommodate a 160 mm frame and 11 kg mass with no built-in ingress protection. It is not suited for portable equipment, low-voltage DC systems, or environments that require sealed enclosures or quieter running at lower speeds. Builders needing variable-speed control without an external frequency converter should look elsewhere.

Delivers 2780 to 3120 rpm with 415 to 635 W draw

At 50 Hz the unit runs at 2780 rpm drawing 1.82 A and 415 W; at 60 Hz it reaches 3120 rpm drawing 2.78 A and 635 W. The 400 VDB capacitor rating supports these peaks. Headroom exists for short-term overloads within the insulation class, but sustained operation above the rated current will exceed thermal limits.

Highlights

  • 230 V AC nominal voltage suits industrial mains
  • 2780 rpm at 50 Hz and 3120 rpm at 60 Hz delivers variable airflow
  • Ball bearing motor ensures long service life
  • Forward-leaning centrifugal impeller generates high static pressure
  • IP00 open design simplifies integration into enclosures

Specifications

BrandEbmpapst
ModelD2E160-AH01-17
TypeAC centrifugal fan
Bearing TypeBall Bearing

Questions about this item

What mounting points or ductwork does the 160 mm housing of this D2E160-AH01-17 blower require?

The forward-leaning centrifugal fan has a 160 mm diameter housing made of hot-dip galvanised sheet steel and an IP00 rating, so it must be installed inside a protective enclosure with matching bolt patterns and sealed duct connections.

Will the 230 VAC, 50/60 Hz motor run on my existing single-phase supply without a frequency converter?

Yes, the M2E074-LA motor is rated for 230 VAC at both 50 Hz and 60 Hz, drawing 1.82 A at 415 W on 50 Hz and 2.78 A at 635 W on 60 Hz, so it operates directly on standard single-phase mains.

How can I confirm the blower is delivering the rated airflow after installation?

Measure the motor current at the supply terminals; it should read approximately 1.82 A at 50 Hz or 2.78 A at 60 Hz, and the impeller should spin at 2780 rpm or 3120 rpm respectively, matching the nameplate values.
