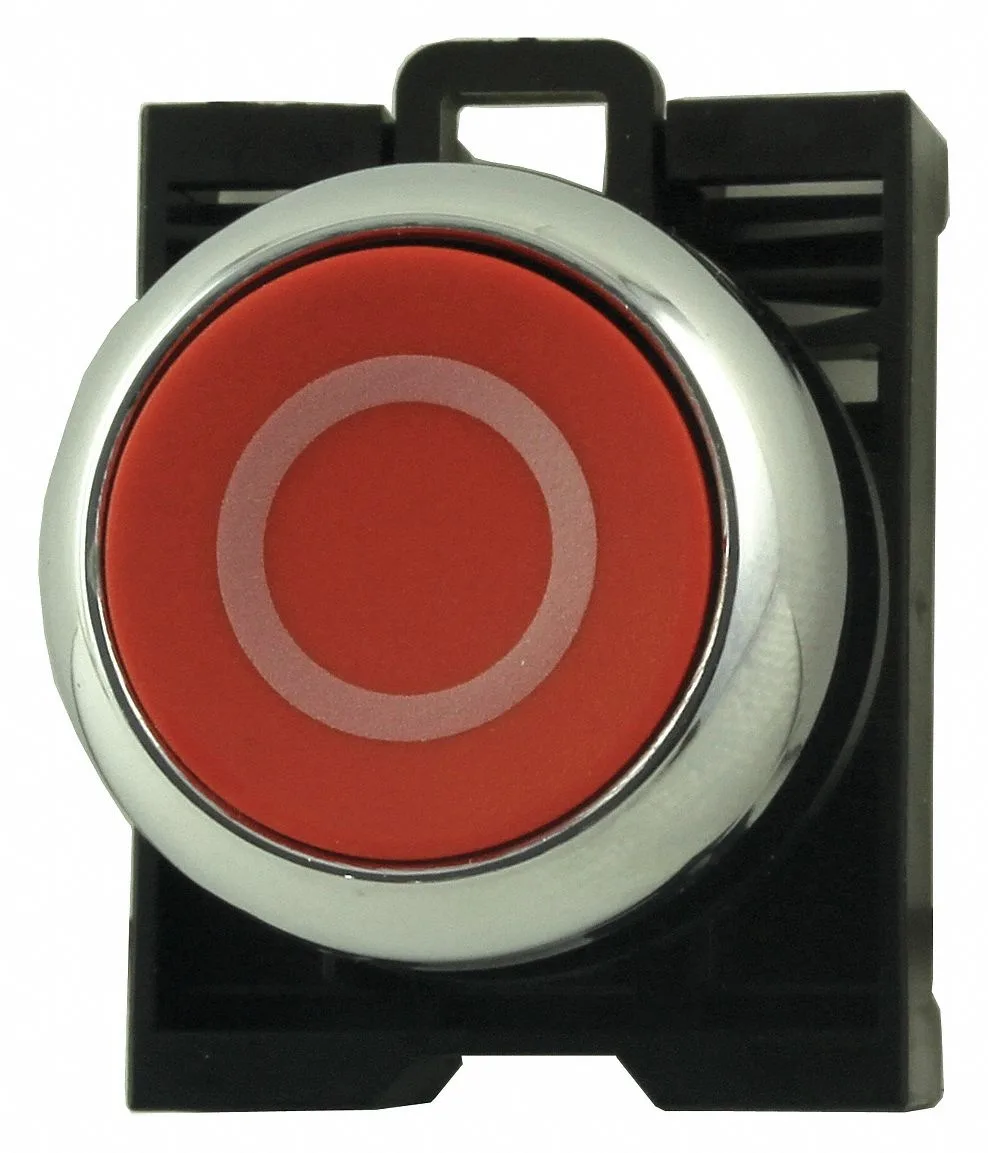

Red flush push button 22 mm metal head chrome bezel

Eaton

Eaton M22M-D-R-X0-K01 22 mm Red 1NC Push Button

SKU CH-QW9P-Y0AYJ

A 22 mm red metal flush push button with 1NC contact rated 3A at 24 DC and 6A at 230V AC, sealed to IP66, IP67 and IP69K

  • Engine BrandEATON
  • Engine Size22 mm
  • Momentary flush action gives precise control
  • Red metal head with white legend ensures clear identification
  • IP66 IP67 IP69K sealing withstands harsh environments
  • 3A at 24V DC and 6A at 230V AC handles demanding circuits
  • Certified to CE CSA UL and marine standards

22 mm Red Push Button

The Eaton M22M-D-R-X0-K01 is a 22 mm flush push button operator with a red metal head and chrome die-cast aluminium bezel. It provides a single normally closed contact rated at 3 A at 24 V DC and 6 A at 230 V AC. The unit carries NEMA ratings 1, 2, 3, 4, 4X, 13 and IP ratings IP66, IP67, IP69K for harsh environments. Standards include Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register and UL Listed.

Industrial Control Panels

This momentary action button suits panels that need a robust 22 mm cut-out with high ingress protection and a clearly visible red actuator. It is not intended for illuminated indication, maintained switching or configurations requiring multiple contacts or normally open operation. Buyers who need a pilot light, a selector switch or a different contact arrangement should look at other operator types.

Screw Clamp Terminals

Installation uses screw clamp terminals that accept standard control wiring without special tools. The flush metal head mounts securely in a 22 mm panel cut-out and the chrome bezel provides a finished appearance. Common issues include over-tightening the terminal screws, which can damage the clamp, and failing to verify the panel thickness against the mounting thread length before assembly.

Highlights

  • Momentary flush action gives precise control
  • Red metal head with white legend ensures clear identification
  • IP66 IP67 IP69K sealing withstands harsh environments
  • 3A at 24V DC and 6A at 230V AC handles demanding circuits
  • Certified to CE CSA UL and marine standards

Specifications

Engine BrandEATON
Engine Size22 mm

Questions about this item

Does this 22 mm push button need a specific mounting hole size to fit my panel?

Yes, it is designed for a standard 22 mm panel cut-out and includes the necessary mounting hardware for secure installation.

Can the 1NC contact block rated at 6A @ 230V AC work with my existing relay coil circuit?

The contact block carries an AC-15 rating suitable for controlling electromagnetic loads like relay coils at 230V AC up to 6 amperes.

How do I verify the IP66, IP67 and IP69K seals are intact after wiring the screw clamp terminals?

Inspect the flush metal head and bezel alignment; the operator should sit flat against the panel gasket with no visible gaps around the chrome die-cast bezel.
