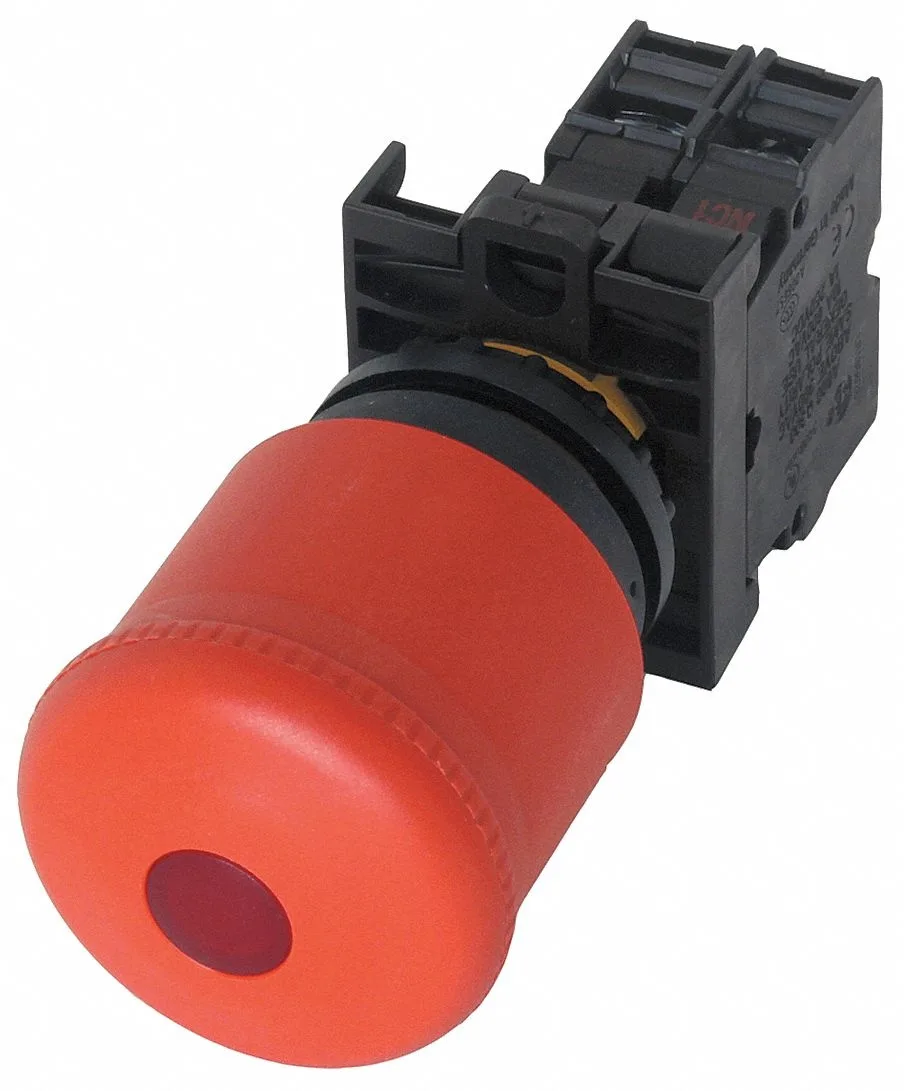

Red 22 mm emergency stop push button with 45 mm mushroom head plastic operator and polycarbonate bezel

Eaton

Eaton M22-PVL-K01-230R Emergency Stop Push Button 22 mm Red 1NC

SKU CH-D7XK-PRV6N

Emergency stop button with 22 mm mounting, 45 mm mushroom head, 1NC contact rated 6A at 230V AC, IP67 and IP69K sealed

  • Engine BrandEATON
  • Engine Size22 mm
  • Instant emergency stop with maintained-action mushroom head
  • 22 mm mounting fits standard industrial panels
  • IP67 and IP69K sealing resists water and high-pressure washdown
  • 1NC screw-clamp contact rated 6 A at 230 V AC
  • Certified to UL, CE, CSA, CCC and marine standards

22 mm Emergency Stop Button

The Eaton M22-PVL-K01-230R is a maintained-action emergency stop push button with a 45 mm mushroom head. It is designed for industrial machinery and panels where a single, clearly marked operator must halt a process immediately. The red polycarbonate bezel provides high visibility in harsh environments.

Panel mounting and circuit integration

The 22 mm mounting diameter fits standard industrial cut-outs and the screw-clamp terminals accept field wiring without special tools. One normally closed contact rated at 6 A at 230 V AC and 3 A at 24 V DC breaks the control circuit directly. NEMA 1, 2, 3, 4, 4X and 13 plus IP67 and IP69K ratings allow installation in wash-down and outdoor locations.

Sustained actuation behaviour

Maintained action keeps the contact open after the button is pressed until it is deliberately reset, preventing automatic restart after a fault. The plastic head and polycarbonate bezel resist oils and UV exposure during continuous service. Certifications from UL, CSA, CE, CCC, Bureau Veritas, GOST-R and Lloyd's Register confirm compliance for global installations.

Highlights

  • Instant emergency stop with maintained-action mushroom head
  • 22 mm mounting fits standard industrial panels
  • IP67 and IP69K sealing resists water and high-pressure washdown
  • 1NC screw-clamp contact rated 6 A at 230 V AC
  • Certified to UL, CE, CSA, CCC and marine standards

Specifications

Engine BrandEATON
Engine Size22 mm

Questions about this item

How long can the 22 mm mushroom head stay actuated before the 1NC contact overheats?

The 1NC contact is rated for continuous duty at 6 A / 230 V AC and 3 A / 24 V DC, so no separate thermal time limit applies.

How much heat does the screw-clamp terminal block generate when the button is held in all day?

Power dissipation at the rated 6 A / 230 V AC or 3 A / 24 V DC is low enough that the IP67 / IP69K enclosure stays cool to the touch during continuous operation.

What control-voltage supply must already be wired to the screw clamps for the 1NC contact to function?

The contact block accepts 24 V DC or 230 V AC control circuits directly on its screw-clamp terminals; no separate transformer or power supply is required.
