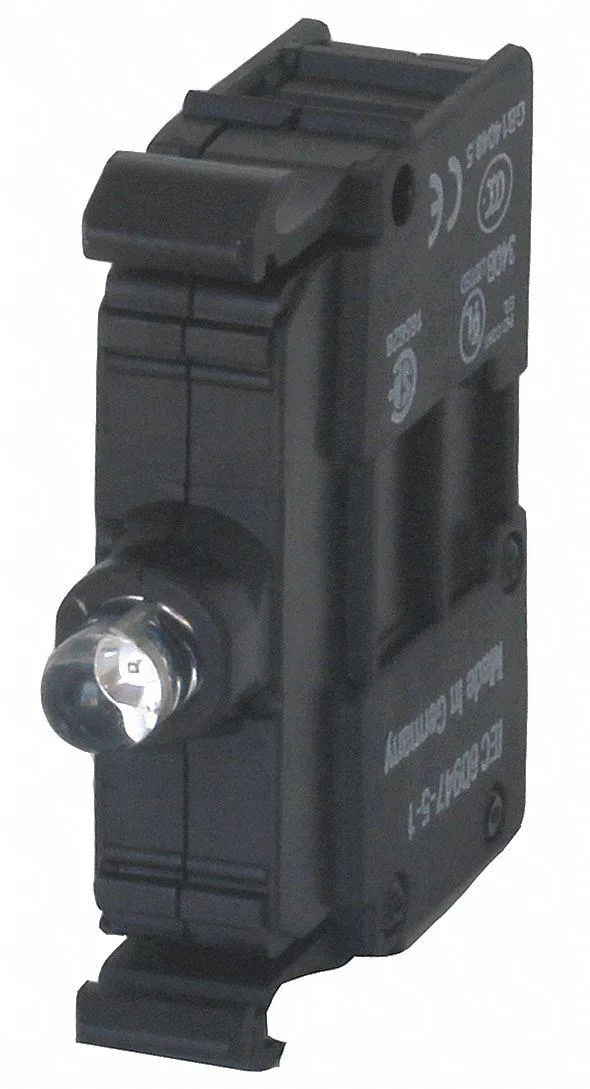

Eaton M22-LED230-R red LED lamp module 22mm screw terminals IP65 IP66 IP67 IP69K

Eaton

Eaton M22-LED230-R Lamp Module LED 264 V AC Red 22mm

SKU CH-P4NZ-AAFS2

Red LED indicator module for 85 to 264 V AC circuits, 22 mm mounting with IP65, IP66, IP67 and IP69K sealing

  • Engine BrandEATON
  • Engine Size22 mm
  • Reliable indication across wide voltage range
  • LED lamp operates from 85 to 264 V AC
  • Red 22 mm module fits standard panel cut-outs
  • Screw terminals give secure wiring connection
  • Rated IP65 IP66 IP67 IP69K and NEMA 1 2 3 4 4X 13

Industrial LED indicator for 240 V AC panels

The Eaton M22-LED230-R is a 22 mm full-voltage lamp module that operates from 85 to 264 V AC. It mounts in standard push-button cut-outs and provides a red LED signal for industrial control panels. The module carries NEMA 1, 2, 3, 4, 4X and IP65, IP66, IP67, IP69K ratings for harsh environments.

Screw terminals and sealed housing simplify wiring

A screw-terminal connection secures conductors without soldering or crimp tools. The sealed construction meets CCC, CE, CSA, IEC 60947 and Lloyd's Register requirements. These approvals allow the module to be specified in regulated machinery and marine applications.

Rated for continuous 240 V AC duty across wide

The LED maintains brightness from 85 V up to 264 V AC, covering nominal 230 V and 240 V supplies with margin. It is not suited for low-voltage DC control circuits or for applications requiring multi-colour or flashing operation. Builders needing higher voltage or different colours must select another module.

Highlights

  • Reliable indication across wide voltage range
  • LED lamp operates from 85 to 264 V AC
  • Red 22 mm module fits standard panel cut-outs
  • Screw terminals give secure wiring connection
  • Rated IP65 IP66 IP67 IP69K and NEMA 1 2 3 4 4X 13

Specifications

Engine BrandEATON
Engine Size22 mm

Questions about this item

Does the LED module itself require periodic replacement, or is the 22 mm unit sealed for life?

The 22 mm LED lamp module is a sealed full-voltage unit rated IP65, IP66, IP67 and IP69K; no user-serviceable parts inside, so the entire module is replaced only if the LED fails.

What voltage ceiling limits continuous operation of this 240 V AC rated module?

The lamp module accepts 85 to 264 V AC input, so sustained voltage above 264 V AC is the first electrical limit that would stress the LED driver.

How much heat does the red LED generate when powered 24/7 at 264 V AC?

As a low-current LED indicator, it produces minimal heat; the IP65/IP66/IP67/IP69K enclosure dissipates it passively without forced airflow or measurable temperature rise in normal panels.
