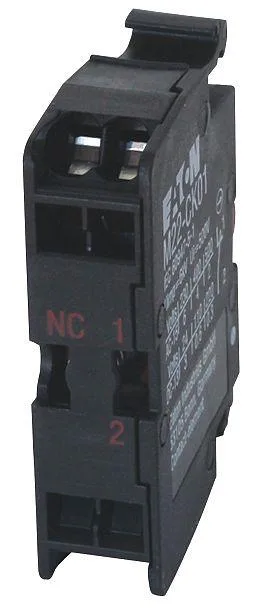

Black 22 mm Eaton contact block with 1NC momentary action and cage terminals

Eaton

Eaton M22-CK01 Contact Block 1NC 22 mm Black

SKU CH-2M2T-JECS7

A 22 mm momentary contact block with one normally-closed circuit rated 6 A at 240 V AC for Eaton M22 push-button operators

  • Engine BrandEATON
  • Engine Size22 mm
  • Momentary action gives precise operator control
  • 1NC contact form breaks circuit reliably
  • 6A at 240V AC handles demanding loads
  • 22 mm size fits standard M22 push buttons
  • Certified to CE, CSA, IEC 60947, UL, VDE 0660

Contact Block for Eaton M22 Push Buttons

This contact block provides a single normally closed circuit for Eaton M22 series push-button operators. It mounts in a 22 mm panel cut-out and is intended for industrial control panels that require a momentary action contact. The black housing identifies the contact form at a glance.

Rated 6 A at 240 V AC with A600/Q300 designation

The block carries a 6 A rating at 240 V AC and conforms to the NEMA A600/Q300 contact rating designation. It is certified to IEC 60947 and listed by Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL and VDE 0660. Cage terminals accept solid or stranded wire without special tooling.

1NC contact form decides suitability

The single normally closed contact opens when the operator is actuated, making this block suitable only for circuits that must break on push. Panels requiring a normally open contact or multiple poles need a different block.

Highlights

  • Momentary action gives precise operator control
  • 1NC contact form breaks circuit reliably
  • 6A at 240V AC handles demanding loads
  • 22 mm size fits standard M22 push buttons
  • Certified to CE, CSA, IEC 60947, UL, VDE 0660

Specifications

Engine BrandEATON
Engine Size22 mm

Questions about this item

Should I choose the 1NC contact form or a different configuration?

The 1NC contact form provides one normally closed circuit that opens when the operator is actuated, suitable for stop or safety functions on 22 mm Eaton M22 push buttons.

What does the 6A at 240 V AC rating mean when the block is installed?

It means the contacts can continuously carry 6 amperes at 240 volts AC in the control circuit, matching the A600/Q300 NEMA designation for pilot-duty loads.

Which standards does the cage-terminal block meet for panel-building compliance?

The block carries CE, CSA, UL, VDE 0660, IEC 60947, CCC, GOST-R, Bureau Veritas and Lloyd's Register approvals for global panel acceptance.
