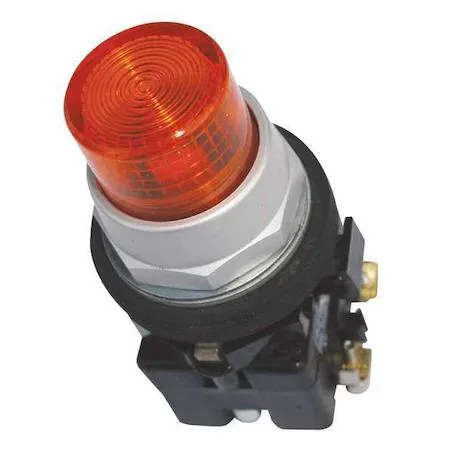

Round amber 30 mm LED pilot light with metal body and plastic Fresnel lens

Eaton

Eaton HT8GTAF7 30 mm Pilot Light Amber 120V AC

SKU CH-KD2V-9MPPQ

A 30 mm amber LED pilot light rated for 120 V AC with NEMA 1, 12, 13, 3, 3R, 4, 4X and IP10 protection

  • TypeIndustrial Electrical Controls & Automation
  • Size30 mm
  • 30 mm panel cut-out fits standard industrial enclosures
  • Amber LED lamp included provides clear status indication
  • 120 V AC full-voltage operation needs no external transformer
  • NEMA 1 3 3R 4 4X 12 13 rating suits harsh environments
  • UL listed and CSA certified meets North American safety standards

30 mm Amber Pilot Light

The Eaton HT8GTAF7 is a 30 mm round pilot light with an amber LED for 120V AC circuits. It is built for industrial control panels and automation equipment that need a clear visual status indicator. The aluminium body and plastic Fresnel lens meet NEMA 1, 3, 3R, 4, 4X, 12, 13 and IP10 ratings. UL and CSA listings confirm compliance for North American installations.

Saddle Clamp Terminals

Installation uses saddle clamp terminals that accept stripped wire without special tooling. The lamp module is a full voltage type rated for 120V AC, so no separate transformer or resistor is required. A common error is over tightening the clamps, which can crack the plastic lens or damage the conductor. Ensure the panel cutout matches the 30 mm mounting dimension before wiring.

Single Indicator Capacity

This unit provides a single amber indication point and includes the lamp and lens in the package. Replacement lamps are available under part number 39R130. It is not suited for applications needing multi colour signalling or higher voltage supplies. The NEMA 4X rating supports wash down environments, but the IP10 rating limits protection against fine dust ingress.

Highlights

  • 30 mm panel cut-out fits standard industrial enclosures
  • Amber LED lamp included provides clear status indication
  • 120 V AC full-voltage operation needs no external transformer
  • NEMA 1 3 3R 4 4X 12 13 rating suits harsh environments
  • UL listed and CSA certified meets North American safety standards

Specifications

BrandEATON
TypeIndustrial Electrical Controls & Automation
Size30 mm

Questions about this item

How can I verify the pilot light is operating correctly after installation?

Apply 120V AC power; the amber LED should illuminate steadily through the Fresnel plastic lens, confirming the full-voltage lamp module and saddle-clamp terminals are functioning.

What components are included and what must be purchased separately?

The unit ships complete with the 120V AC LED lamp, amber Fresnel lens, metal body and saddle-clamp terminals; a replacement lamp (39R130) is available separately for future maintenance.

Which version should I choose for a 30 mm panel cut-out with NEMA 4X and IP10 requirements?

This single 30 mm amber model carries NEMA 1, 3, 3R, 4, 4X, 12, 13 and IP10 ratings, matching those environmental specifications directly.
