Green flush push button, 30 mm metal head, momentary action, 1NO contact

Eaton

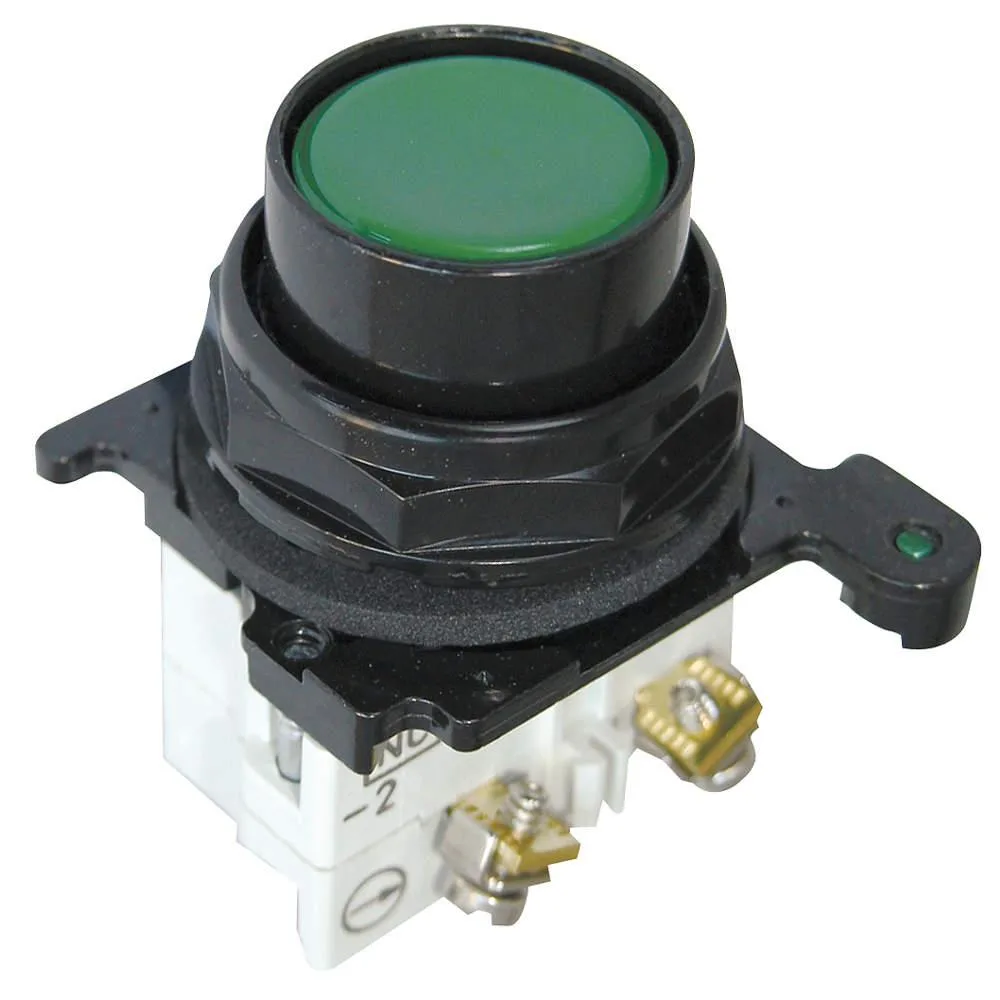

Eaton E34PB3-53X 30 mm Green Flush Push Button 1NO

SKU CH-F4VW-MWG3R

A green 30 mm flush push button with momentary action, 1NO contact rated at 10A 600V AC, IP65 and NEMA 12, 13, 3, 3R, 4, 4X protection

  • Engine BrandEATON
  • Engine Size30 mm
  • 30 mm flush operator fits standard panels
  • Green momentary button gives clear visual status
  • 1NO contact rated 10 A at 600 V AC
  • NEMA 12, 13, 3, 3R, 4, 4X and IP65 sealing
  • CE, CSA, FDA 3-A and UL listed compliance

Industrial Flush Push Button 30 mm

The Eaton E34PB3-53X is a green, non-illuminated flush push button designed for industrial control panels. It suits operators who need a momentary-action switch with a single normally open contact. The epoxy-coated metal head and bezel resist corrosion in harsh environments. This unit is factory assembled and ready for panel mounting.

NEMA 12 13 3 3R 4 4X IP65 Rating Limits

The button carries NEMA ratings 12, 13, 3, 3R, 4, and 4X plus IP65, meaning it withstands dust, water jets, and oil or coolant splash. It is not rated for prolonged submersion or high-pressure steam cleaning beyond the IP65 test conditions. The screw-clamp terminals accept standard control wiring within the 10A 600V AC contact rating. Buyers needing higher ingress protection or different terminal styles must select another device.

Single 1NO Contact Decides Fit

The defining specification is the single normally open contact block rated at 10A 600V AC. Circuits requiring a normally closed contact, multiple poles, or a different current rating cannot use this operator as supplied. The green colour and flush profile are fixed, so applications needing alternative colours, legends, or mushroom heads are not served. Confirm the 1NO configuration matches your control schematic before ordering.

Highlights

  • 30 mm flush operator fits standard panels
  • Green momentary button gives clear visual status
  • 1NO contact rated 10 A at 600 V AC
  • NEMA 12, 13, 3, 3R, 4, 4X and IP65 sealing
  • CE, CSA, FDA 3-A and UL listed compliance

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

Should I choose the green flush version or another colour for my panel?

The green flush button uses epoxy coated metal for both head and bezel, rated NEMA 12, 13, 3, 3R, 4, 4X and IP65, so it suits wash-down and outdoor panels where colour coding matters.

What does the 10A @ 600V AC contact rating mean when the button is wired into a control circuit?

The single normally open contact can switch up to 10 amps at 600 volts AC, making it suitable for motor starters, contactor coils or pilot duty loads within that limit.

How does the screw clamp terminal connection affect installation and what standards does it meet?

Screw clamp terminals accept stripped wire without ferrules, and the operator carries CE, CSA, UL Listed and FDA 3-A approvals for industrial and food-zone use.
