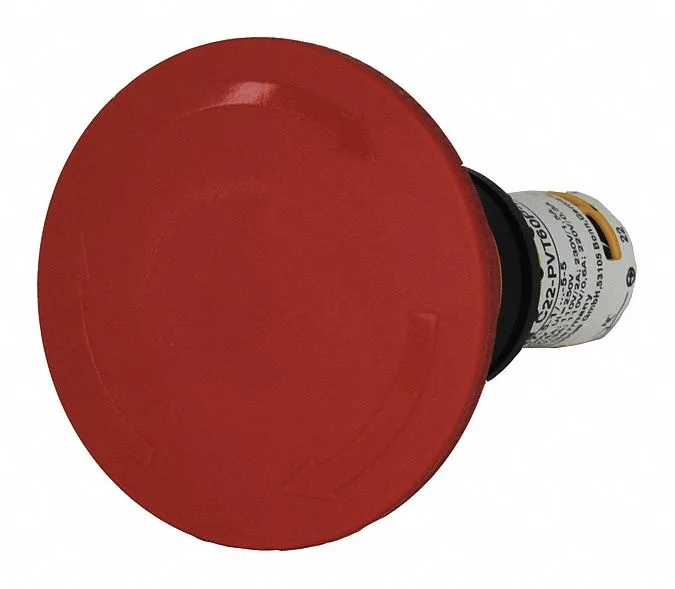

Red 22 mm emergency stop push button with 60 mm mushroom head plastic body silver nylon bezel IP67 IP69K rating

Eaton

Eaton C22-PVT60P-K11 Emergency Stop Push Button 22 mm Red 1NO/1NC

SKU CH-3SJH-NR5X8

Red 22 mm emergency stop with 60 mm mushroom head, 1NO/1NC contacts rated 1.5 A at 230 V AC and IP67/IP69K sealing

  • Engine BrandEATON
  • Engine Size22 mm
  • Immediate emergency shutdown with 22 mm maintained-action mushroom head
  • Reliable circuit control via 1NO/1NC contacts rated 1.5A at 230V AC
  • Dust and high-pressure washdown protection with IP67 and IP69K ratings
  • Compliance assured through UL listing and CSA, IEC 60947, EN 60947 standards
  • Durable sealed plastic construction suits NEMA 1, 12, 13, 3, 4X environments

Emergency Stop Button for Safety Circuits

The Eaton C22-PVT60P-K11 is a 22 mm emergency stop push button designed for industrial safety circuits. It features a maintained action with a 60 mm red mushroom head that stays activated until manually reset. The single operator provides one normally open and one normally closed contact rated at 1.5A at 230V AC and 3A at 24V DC. Its plastic construction and IP67 and IP69K ratings suit harsh environments.

Replaces Worn or Non-Compliant Stop Controls

This unit replaces damaged, corroded, or outdated emergency stop actuators that no longer meet safety standards. The jump is worth it when existing buttons lack the required NEMA 1, 12, 13, 3, 4X ratings or the sealed construction needed for washdown areas. It also upgrades installations needing compliant contact forms certified to CSA, DIN VDE 0600, EN 60947, and IEC-60947 standards with UL listing.

Limits of Screw-Clamp Terminals and Contact Ratings

The screw-clamp terminal connection accepts solid or stranded wire but requires proper torque for reliable contact. The AC-15 and DC-13 contact ratings limit switching capacity to the stated 1.5A at 230V AC and 3A at 24V DC, so heavier loads need an interposing contactor. The single-operator, single-legend design does not support illuminated indication or multiple operator stations from one device.

Highlights

  • Immediate emergency shutdown with 22 mm maintained-action mushroom head
  • Reliable circuit control via 1NO/1NC contacts rated 1.5A at 230V AC
  • Dust and high-pressure washdown protection with IP67 and IP69K ratings
  • Compliance assured through UL listing and CSA, IEC 60947, EN 60947 standards
  • Durable sealed plastic construction suits NEMA 1, 12, 13, 3, 4X environments

Specifications

Engine BrandEATON
Engine Size22 mm

Questions about this item

What panel cut-out size does the 22 mm emergency stop button require?

The operator needs a standard 22 mm mounting hole in the panel.

How is the contact block secured to the operator, and what mistake should be avoided?

The contact block snaps onto the back of the operator; ensure the latch clicks fully so the 1NO/1NC contacts align with the screw-clamp terminals.

When should the sealed IP67/IP69K mushroom head be replaced?

Replace the head if the red plastic shows cracks, UV fading or if the maintained-action mechanism no longer locks positively.
