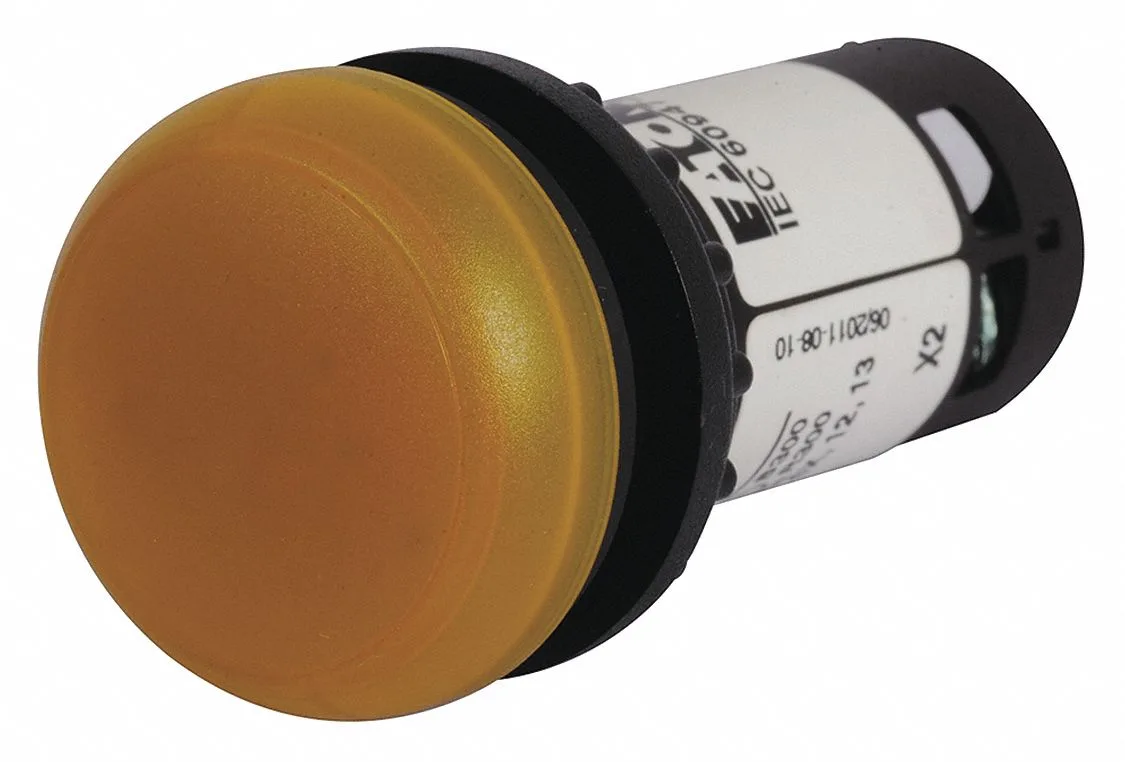

Yellow round LED indicator light, 22mm flush polycarbonate panel mount

Eaton

Eaton C22-L-Y-120 Yellow 120V AC 22mm Indicator Light

SKU CH-F4NX-C8ACM

A 22 mm yellow LED panel indicator for 120 V AC circuits with IP67 and IP69K sealing

  • Engine BrandEATON
  • Engine Size22mm Mounting dia
  • Yellow LED rated 100 000 hours average life
  • IP67 and IP69K sealing for wash-down environments
  • 22 mm mounting diameter fits standard panel cut-outs
  • NEMA 13 and 4X ratings confirm dust and water resistance
  • Terminal clamp connection simplifies 120 V AC wiring

Industrial Indicator Light

The Eaton C22-L-Y-120 is a 22mm raised indicator light designed for industrial control panels. It operates at 120V AC with a yellow LED that draws 20 mA. The polycarbonate lens and round shape suit flush panel mounting in harsh environments.

Environmental Protection Limits

This light meets NEMA 13 and 4X ratings alongside IP67 and IP69K ingress protection. It withstands high-pressure washdown and temporary immersion. The panel thickness allowance is .930 in for secure installation. It complies with CSA, EN 60947, IEC 60947 and UL Listed standards.

Service Life and Voltage Headroom

The LED offers an average life of 100, 000 hours under rated conditions. It comfortably handles continuous 120V AC operation within the specified current draw. The light is not suited for DC circuits or voltages outside the 120V AC rating. Buyers needing different colours or voltages must select another model.

Highlights

  • Yellow LED rated 100 000 hours average life
  • IP67 and IP69K sealing for wash-down environments
  • 22 mm mounting diameter fits standard panel cut-outs
  • NEMA 13 and 4X ratings confirm dust and water resistance
  • Terminal clamp connection simplifies 120 V AC wiring

Specifications

Engine BrandEATON
Engine Size22mm Mounting dia

Questions about this item

Which voltage rating should I choose for this indicator light?

The unit is rated for 120V AC only; no other voltage option is offered.

What does the 20 mA current draw mean once the light is installed?

It will draw 20 mA when illuminated, a low load for typical control circuits.

What do the IP67 and IP69K ratings cap in practice?

IP67 protects against temporary immersion; IP69K withstands high-pressure, high-temperature washdown.
