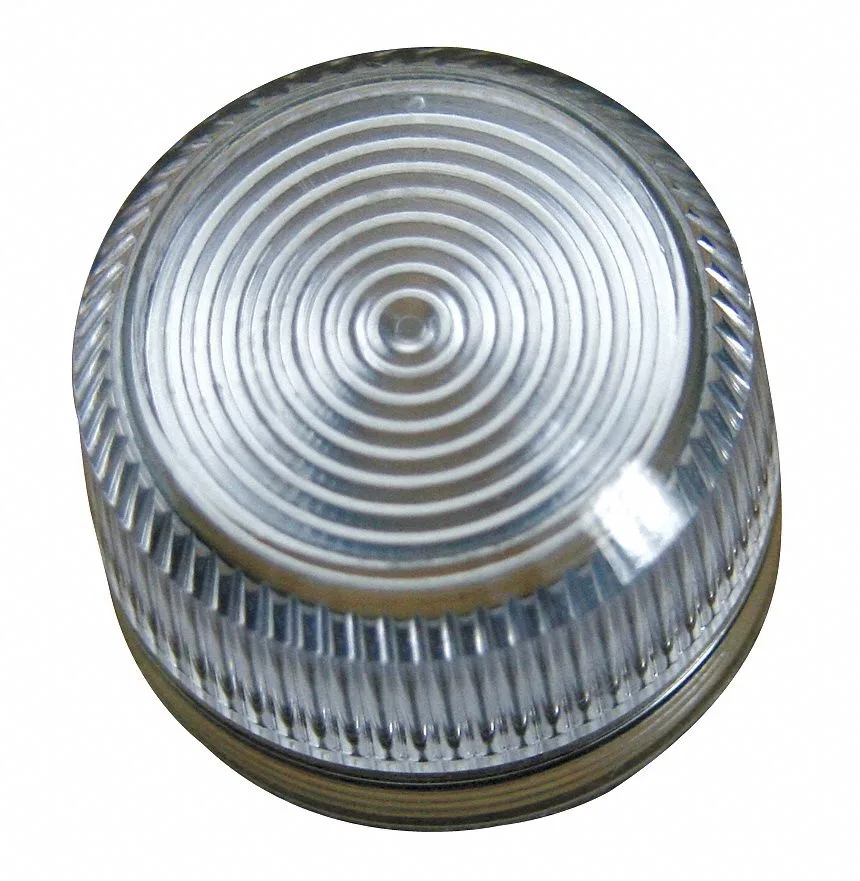

Clear plastic 30mm pilot light lens with Fresnel surface

Eaton

Eaton 10250TC5N Pilot Light Lens 30mm Clear Plastic

SKU CH-S2TC-1HPAQ

Clear 30 mm Fresnel lens fits Eaton 10250T illuminated pilot lights and meets NEMA 1, 2, 3, 3R, 3S, 4, 4X, 12, 13 and IP65 ratings

  • Engine BrandEATON
  • Engine Size30 mm
  • Clear Fresnel lens improves visibility
  • 30 mm diameter fits Eaton 10250T pilot lights
  • NEMA 1, 2, 3, 3R, 3S, 4, 4X, 12, 13 ratings suit harsh environments
  • IP65 protection resists dust and water jets
  • CE, CSA, UL Listed certifications confirm safety compliance

Clear 30 mm pilot light lens for Eaton 10250T

This clear plastic lens fits Eaton 10250T illuminated pilot lights and uses a Fresnel design to spread the indicator glow. It is rated NEMA 1, 2, 3, 3R, 3S, 4, 4X, 12 and 13 as well as IP65 for dust and water ingress. The part carries CE, CSA and UL Listed marks for compliance.

Verify your Eaton 10250T series compatibility

The lens is sized at 30 mm and intended only for the 10250T illuminated pilot light range. Confirm that your existing panel cut-out and mounting hardware match this series so the lens seats correctly. No other Eaton series or third-party pilot lights are referenced in the specifications.

Maintains clarity and sealing under continuous

The plastic construction and Fresnel profile resist yellowing and cracking when the indicator runs for long shifts. NEMA 4X and IP65 ratings confirm the seal holds against wash-down and humidity without internal condensation. Standards compliance remains valid throughout sustained operation.

Highlights

  • Clear Fresnel lens improves visibility
  • 30 mm diameter fits Eaton 10250T pilot lights
  • NEMA 1, 2, 3, 3R, 3S, 4, 4X, 12, 13 ratings suit harsh environments
  • IP65 protection resists dust and water jets
  • CE, CSA, UL Listed certifications confirm safety compliance

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

Does the Eaton 10250TC5N pilot light lens come with the illuminated pilot light body or must that be bought separately?

The lens is sold on its own; the Eaton 10250T illuminated pilot light body is not included and must be purchased separately.

Which NEMA ratings apply to the 30 mm clear plastic lens so I can match my enclosure?

The lens carries NEMA 1, 2, 3, 3R, 3S, 4, 4X, 12 and 13 ratings for use in those enclosure types.

What does the IP65 rating mean for the 30 mm clear lens once it is mounted on a panel?

IP65 means the installed lens is dust-tight and protected against water jets from any direction.
