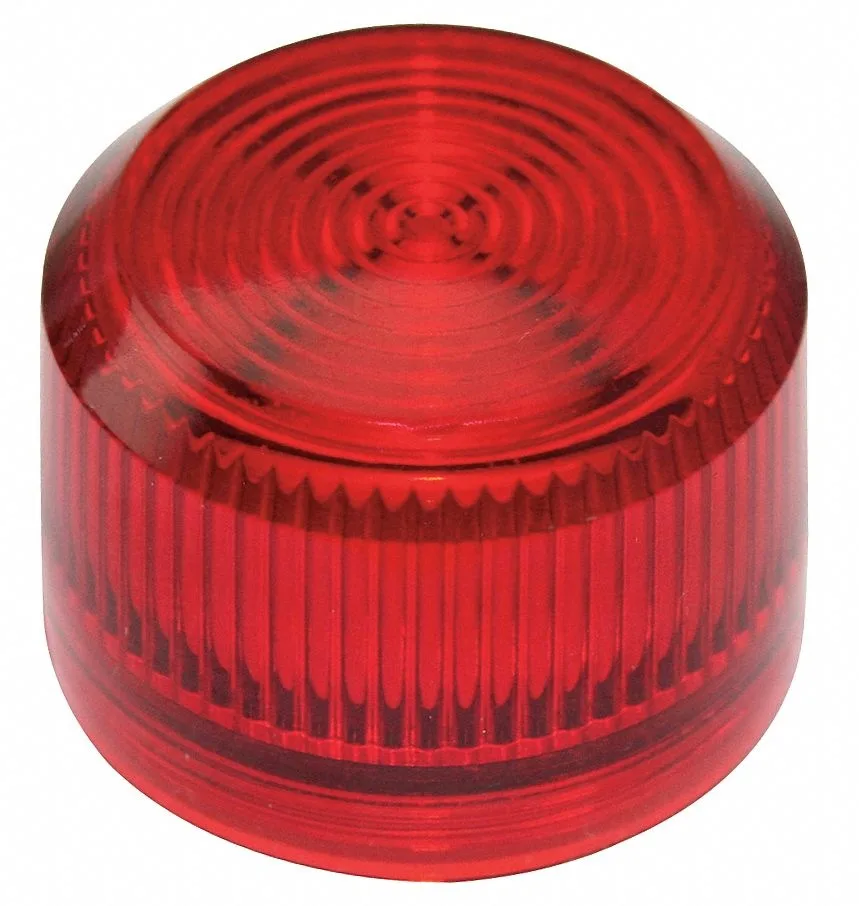

Red 30 mm plastic pilot light lens with Fresnel surface

Eaton

Eaton 10250TC1N Pilot Light Lens 30 mm Red Plastic

SKU CH-6QKK-ZSDCD

Red 30 mm Fresnel pilot-light lens for Eaton 10250T illuminated units, rated NEMA 1, 2, 3, 3R, 3S, 4, 4X, 12, 13 and IP65

  • Engine BrandEATON
  • Engine Size30 mm
  • 30 mm red Fresnel lens fits Eaton 10250T illuminated pilot lights
  • IP65 and NEMA 1, 2, 3, 3R, 3S, 4, 4X, 12, 13 ratings protect against dust and water ingress
  • UL Listed, CE and CSA certified for industrial safety compliance
  • Durable plastic construction withstands harsh panel environments
  • Direct replacement lens restores clear red indication on 30 mm pilot devices

30 mm Red Pilot Light Lens

The Eaton 10250TC1N is a 30 mm red plastic lens designed for Eaton 10250T illuminated pilot lights. It uses a Fresnel lens type to provide clear indication in industrial control panels. This component suits maintenance engineers and panel builders replacing damaged or faded lenses on existing Eaton installations.

NEMA and IP rated sealing

The lens carries NEMA ratings 1, 2, 3, 3R, 3S, 4, 4X, 12 and 13 alongside an IP65 rating. These ratings confirm protection against dust ingress and water jets during continuous operation. The plastic construction maintains its seal and optical clarity under sustained environmental exposure in approved enclosures.

30 mm mounting diameter

The single specification that decides fit is the 30 mm mounting diameter matched to Eaton 10250T series pilot lights. Panels cut for other diameters or different manufacturers will not accept this lens. Buyers needing alternative sizes, colours or brand compatibility must select a different part.

Highlights

  • 30 mm red Fresnel lens fits Eaton 10250T illuminated pilot lights
  • IP65 and NEMA 1, 2, 3, 3R, 3S, 4, 4X, 12, 13 ratings protect against dust and water ingress
  • UL Listed, CE and CSA certified for industrial safety compliance
  • Durable plastic construction withstands harsh panel environments
  • Direct replacement lens restores clear red indication on 30 mm pilot devices

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

Does the red Fresnel lens add heat when the pilot light runs continuously?

The plastic Fresnel lens is passive and does not generate heat; any warmth comes from the lamp behind it.

Which illuminated pilot light bodies accept this 30 mm lens?

It fits Eaton 10250T series illuminated pilot lights with a 30 mm mounting hole.

Will the IP65 and NEMA 4X ratings hold if I mount it in an older NEMA 12 enclosure?

Yes, the lens carries NEMA 1, 2, 3, 3R, 3S, 4, 4X, 12, 13 and IP65 ratings, so it meets or exceeds NEMA 12 sealing.
