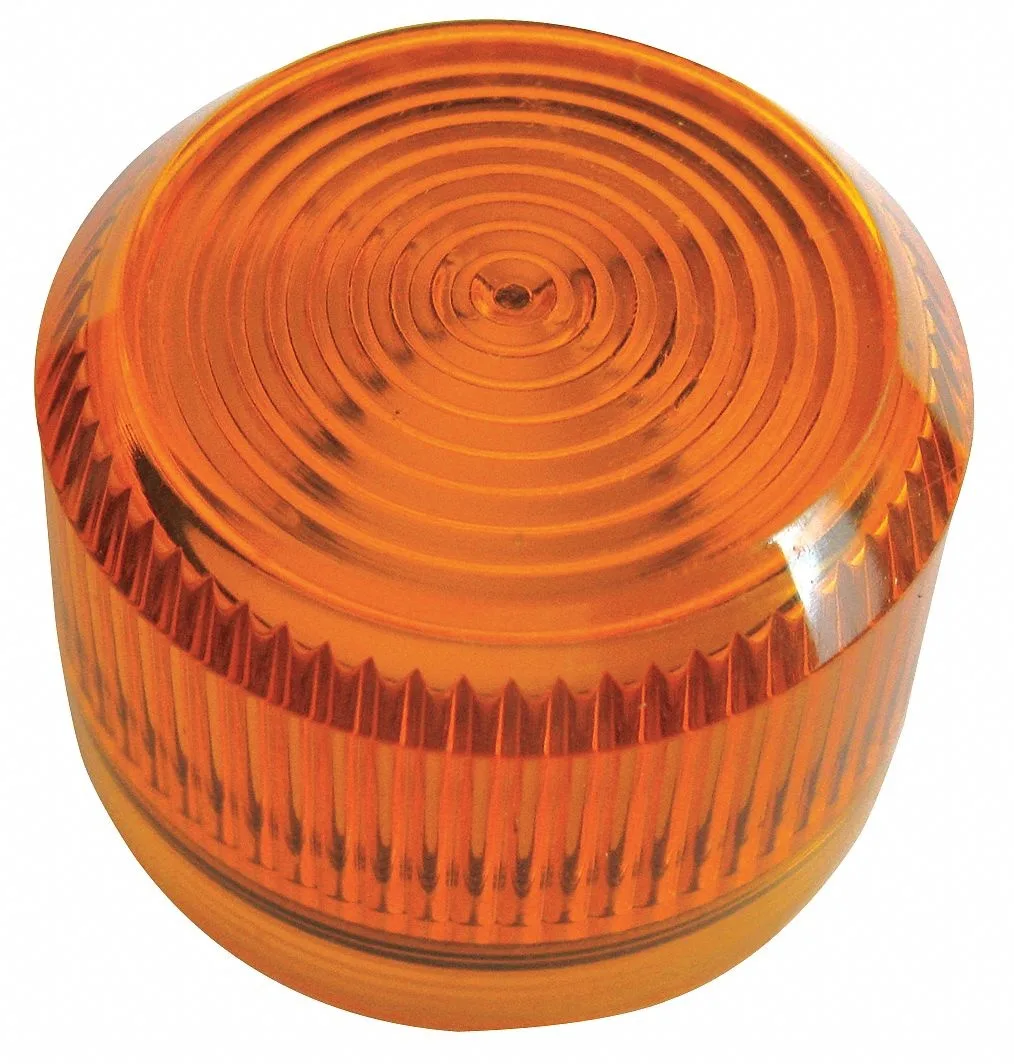

Amber pilot light lens, 30 mm plastic, Fresnel type

Eaton

Eaton 10250TC19N Amber Pilot Light Lens 30mm Plastic

SKU CH-Q7HX-YSZ1B

Amber 30 mm plastic Fresnel pilot-light lens rated NEMA 1, 2, 3, 3R, 3S, 4, 4X, 12, 13 and IP65

  • Engine BrandEATON
  • Engine Size30 mm
  • Amber lens gives clear status indication in industrial panels
  • 30 mm Fresnel design fits Eaton 10250T illuminated pilot lights
  • Plastic construction meets NEMA 1, 2, 3, 3R, 3S, 4, 4X, 12, 13 ratings
  • IP65 seal protects against dust and water jets
  • CE, CSA and UL Listed for code-compliant installations

Eaton 10250TC19N Amber Pilot Light Lens

This 30 mm amber lens fits Eaton 10250T illuminated pilot lights. It is built from plastic with a Fresnel lens type for clear signal indication. The component carries NEMA ratings 1, 2, 3, 3R, 3S, 4, 4X, 12, 13 and an IP65 rating. It meets CE, CSA and UL Listed standards for industrial environments.

Fresnel Plastic Lens for Panel Indicators

The Fresnel design concentrates light output so the amber signal remains visible across wide viewing angles. Plastic construction resists corrosion and impact in harsh settings. The lens mounts directly onto compatible Eaton 10250T operators without extra hardware. This accessory simply replaces a damaged or missing lens to restore the indicator function.

30 mm Mounting Size Determines Fit

The 30 mm diameter is the critical dimension that decides compatibility with your panel cut-out and operator base. Verify that your existing Eaton 10250T unit accepts a 30 mm lens before ordering. Buyers who need a different diameter or a clear, red, green or blue lens cannot use this part. No other dimensions or electrical ratings apply to this lens alone.

Highlights

  • Amber lens gives clear status indication in industrial panels
  • 30 mm Fresnel design fits Eaton 10250T illuminated pilot lights
  • Plastic construction meets NEMA 1, 2, 3, 3R, 3S, 4, 4X, 12, 13 ratings
  • IP65 seal protects against dust and water jets
  • CE, CSA and UL Listed for code-compliant installations

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

How often will the 30 mm amber plastic Fresnel lens need replacement under normal operation?

The lens is a passive plastic component with no moving parts or consumable elements, so it does not have a scheduled replacement interval; it only requires replacement if physically damaged or discoloured over time.

What is the first environmental limit reached when the lens is used continuously in a NEMA 4X or IP65 rated enclosure?

The lens itself has no thermal or electrical limit; the limiting factor will be the pilot light assembly's temperature rating or the enclosure's ambient temperature limit, not the lens material.

Does the amber plastic lens generate any heat or noise when the pilot light runs all day?

No, the lens is a non‑electrical plastic Fresnel element; it produces no heat, noise or power draw of its own — any warmth comes from the lamp behind it.
