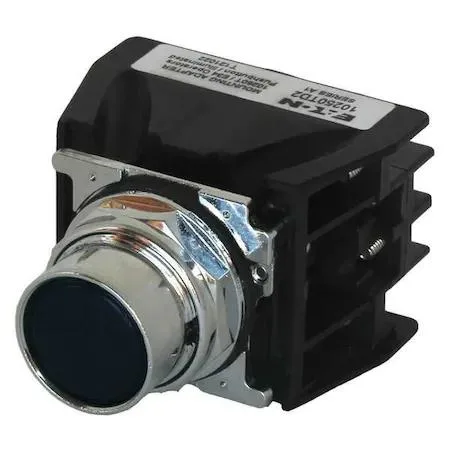

Black 30 mm metal push button with flush operator and screw terminals

Eaton

Eaton 10250T706B Hazardous Location Push Button 30 mm 1NC 1NO

SKU CH-H745-DMCB8

A 30 mm hazardous-location push button rated IP65 and NEMA 4X with 1 NO and 1 NC contacts at 10 A, 600 V AC

  • Engine BrandEATON
  • Engine Size30 mm
  • Rated for hazardous areas with NEMA 12, 13, 3, 3R, 4, 4X and IP65 sealing
  • 10 A at 600 V AC and 2.5 A at 250 V DC contact capacity
  • Factory sealed body with drainage holes and grounding nibs for safety
  • 30 mm metal flush operator with screw-clamp terminals for secure wiring
  • CE marked and compliant with A600 and Q300 NEMA contact ratings

Hazardous Location Push Button 30 mm

The Eaton 10250T706B is a 30 mm momentary push button designed for hazardous and industrial environments. It features a metal head and bezel with a black finish and provides one normally open and one normally closed contact block. The operator is factory sealed with drainage holes and grounding nibs for added protection. Suitable for control panels requiring NEMA 12, 13, 3, 3R, 4, and 4X ratings.

Verify Voltage Current And Mounting Space

Before ordering, confirm that your control circuit operates within the contact rating of 10A at 600V AC or 2.5A at 250V DC. Ensure the panel cut-out accommodates a 30 mm mounting diameter and that the screw clamp terminals suit your wiring gauge. The device carries CE marking and meets NEMA A600 and Q300 designations for pilot duty applications. Check that the IP65 rating satisfies your enclosure sealing requirements.

Sustained Load Performance In Harsh Conditions

Under continuous operation the silver alloy contacts maintain reliable switching at the rated 10A 600V AC and 2.5A 250V DC without derating. The factory sealed construction prevents ingress of dust and water jets per IP65 during extended duty cycles. Metal bezel and grounding nibs preserve electrical continuity and mechanical integrity in vibrating or corrosive atmospheres. Drainage holes expel condensation that could accumulate during prolonged temperature fluctuations.

Highlights

  • Rated for hazardous areas with NEMA 12, 13, 3, 3R, 4, 4X and IP65 sealing
  • 10 A at 600 V AC and 2.5 A at 250 V DC contact capacity
  • Factory sealed body with drainage holes and grounding nibs for safety
  • 30 mm metal flush operator with screw-clamp terminals for secure wiring
  • CE marked and compliant with A600 and Q300 NEMA contact ratings

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

What does the 10250T706B push button include and what must be purchased separately?

The unit ships as a complete 30 mm hazardous-location push button with a 1NO/1NC contact block, metal bezel and factory-sealed construction; no extra contacts or mounting hardware are listed as required.

How do I choose between the available versions of this 30 mm hazardous-location push button?

The 10250T706B is offered in a single configuration — momentary flush operator, black metal head, 1NO/1NC contacts, screw-clamp terminals — so there are no alternative contact arrangements or colours to select.

What does the 10 A at 600 V AC rating mean when the button is installed in a control panel?

Each contact pair can switch up to 10 A at 600 V AC (A600) or 2.5 A at 250 V DC (Q300), suitable for standard industrial control circuits within NEMA 12, 13, 3, 3R, 4, 4X and IP65 enclosures.
