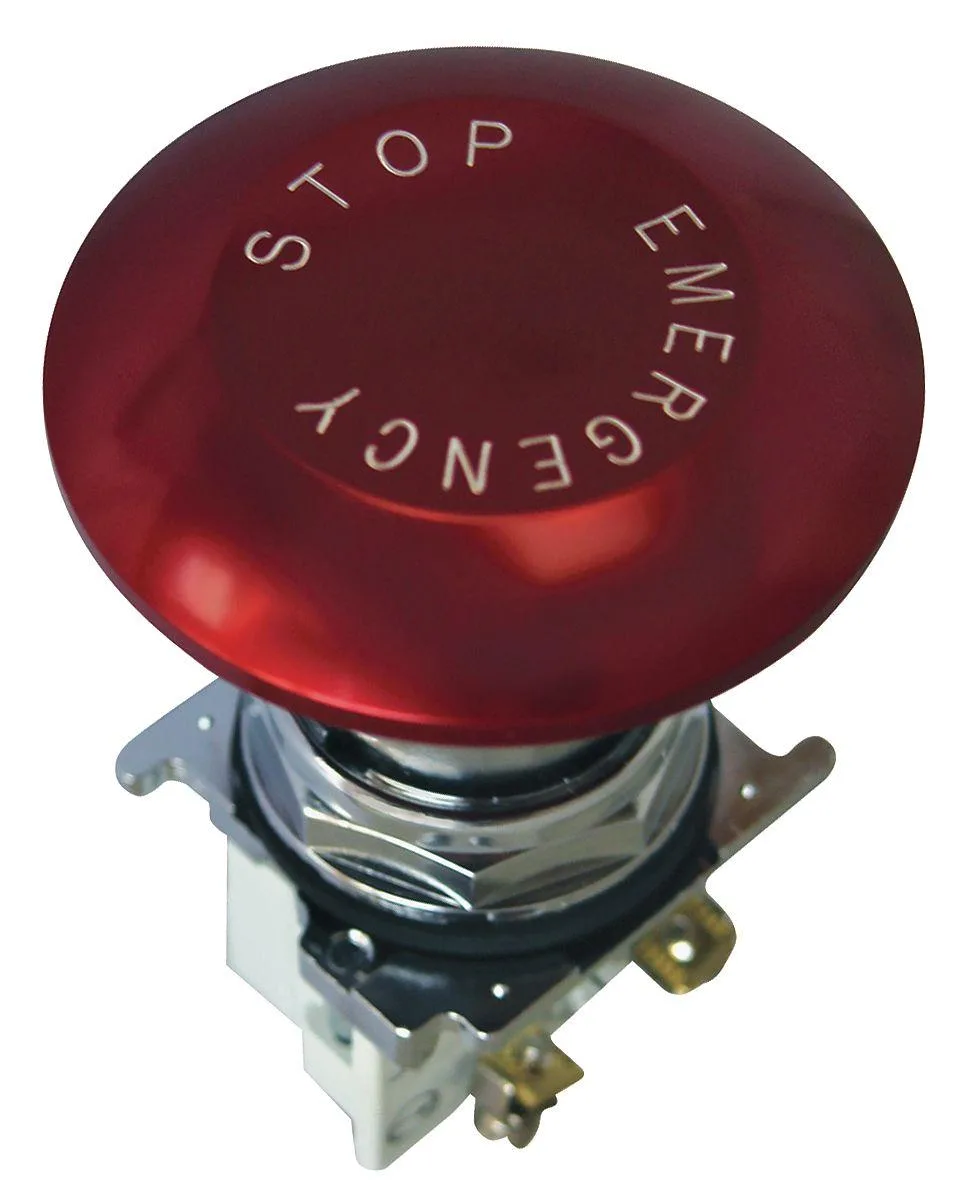

Red metal emergency stop push button 30 mm mushroom head chrome bezel

Eaton

Eaton 10250T5J63-71X Cutler-Hammer Emergency Stop Push Button 30 mm Red

SKU CH-YR95-H84MS

Emergency stop push button with a 30 mm metal mushroom head, 1NC contact rated 10 A at 600 V AC, and NEMA 4X / IP65 sealing

  • Engine BrandEATON
  • Engine Size30 mm
  • Immediate emergency stop with 30 mm mushroom head
  • 10 A contact rating at 600 V AC for reliable circuit interruption
  • NEMA 4X and IP65 sealing resists wash-down and dust
  • Chrome-plated zinc die-cast bezel withstands harsh industrial environments
  • CE, CSA and UL listed for code-compliant installations

Emergency Stop Button for Industrial Panels

The Eaton 10250T5J63-71X is a 30 mm maintained-action push button built for emergency-stop circuits on machinery and control panels. Its red metal mushroom head and chrome-plated zinc die-cast bezel meet NEMA 12, 13, 3, 3R, 4 and 4X ratings plus IP65 for wash-down environments. The single 1NC contact block is rated 10A at 600V AC for direct load switching.

Sustained Load Behaviour

Enclosed silver contacts with reliability nibs resist carbon tracking during repeated emergency actuations. Diaphragm seals and drainage holes prevent moisture ingress that can degrade contact resistance over long service periods. The maintained action holds the circuit open until the operator intentionally resets the button, ensuring the safety function remains engaged under continuous vibration or shock.

Build Quality and Mounting Implications

A metal head and grounding nibs provide a robust earth path directly at the operator. Screw-clamp terminals accept solid or stranded wire without special tooling, simplifying field wiring in tight enclosures. The 65 mm mushroom diameter offers a large target for gloved hands while the compact 30 mm mounting footprint fits standard panel cut-outs. CE, CSA and UL listings confirm compliance for North American and European installations.

Highlights

  • Immediate emergency stop with 30 mm mushroom head
  • 10 A contact rating at 600 V AC for reliable circuit interruption
  • NEMA 4X and IP65 sealing resists wash-down and dust
  • Chrome-plated zinc die-cast bezel withstands harsh industrial environments
  • CE, CSA and UL listed for code-compliant installations

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

Does the 30 mm emergency stop button draw any power or generate heat when it is held in the maintained position all day?

The push button is a passive mechanical switch; it draws no power and produces no heat during continuous operation.

What mounting cut-out and panel thickness are required to install the 30 mm red mushroom head on my control panel?

It fits a standard 30 mm panel cut-out with the supplied chrome-plated zinc die-cast bezel and screw-clamp terminals.

Will the screw-clamp terminals on this 10 A, 600 V AC contact accept the same wire gauges as my older NEMA-rated stations?

Yes, the screw-clamp terminals are compatible with standard industrial wire sizes used in NEMA 12, 13, 3, 3R, 4 and 4X enclosures.
