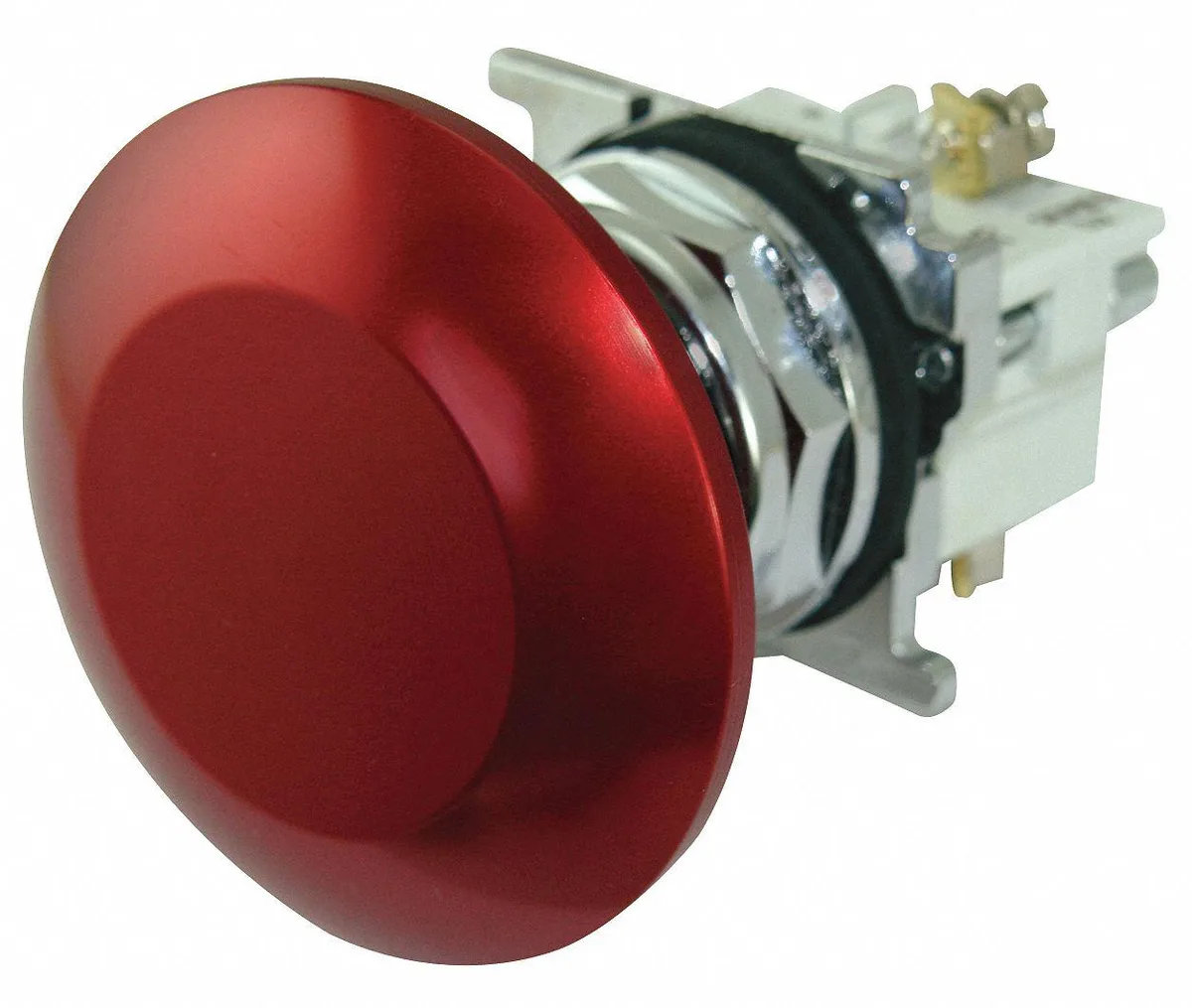

Red 30 mm emergency stop push button with 65 mm mushroom head, chrome bezel, metal construction

Eaton

Eaton 10250T5J62-71X Emergency Stop Push Button 30 mm Red

SKU CH-X32J-SAFF9

30 mm red emergency stop push button with maintained action, 65 mm metal mushroom head, 1NC contact rated 10 A at 600 V AC, and NEMA 4X and IP65 protection

  • Engine BrandEATON
  • Engine Size30 mm
  • 30 mm mushroom head enables fast emergency actuation
  • 1NC contact rated 10 A at 600 V AC breaks power reliably
  • IP65 and NEMA 4X ratings seal against dust and water jets
  • Chrome-plated zinc die-cast bezel resists corrosion in harsh environments
  • Factory-assembled unit with screw-clamp terminals speeds installation

Emergency Stop Button 30 mm Red

The Eaton 10250T5J62-71X is a 30 mm emergency stop push button with a red 65 mm mushroom head. It features a maintained action and a single normally closed contact rated at 10A at 600V AC. The metal construction and chrome-plated zinc die-cast bezel suit industrial control panels requiring a clear emergency disconnect.

Replaces worn or non-compliant stop operators

Upgrade when an existing button lacks the required NEMA 12, 13, 3, 3R, 4, 4X or IP65 ratings for dust and water ingress. The jump is worth it when safety standards demand CE, CSA and UL Listed markings that older or damaged units no longer provide. Factory-assembled delivery eliminates component-mismatch risk during replacement.

Panel mount with screw-clamp terminals

Installation uses a standard 30 mm cut-out and screw-clamp terminals for secure wiring without specialised tools. The single-operator layout simplifies alignment, but verify panel thickness compatibility before cutting. Miswiring the 1NC contact or insufficient torque on the terminal screws are the most common errors that prevent proper circuit interruption.

Highlights

  • 30 mm mushroom head enables fast emergency actuation
  • 1NC contact rated 10 A at 600 V AC breaks power reliably
  • IP65 and NEMA 4X ratings seal against dust and water jets
  • Chrome-plated zinc die-cast bezel resists corrosion in harsh environments
  • Factory-assembled unit with screw-clamp terminals speeds installation

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

What panel cut-out diameter does the 30 mm operator require?

The operator is a 30 mm unit, so the panel cut-out must match that diameter for the mushroom head to seat correctly.

How is the contact block secured, and what torque should be used on the screw-clamp terminals?

The contact block mounts with a screw-clamp terminal connection; tighten the terminal screws to the manufacturer's specified torque to avoid loose wiring.

When should the IP65 seal be inspected or replaced on this emergency-stop button?

Inspect the IP65 seal during routine safety checks and replace it if the gasket shows cracking, compression set, or after any wash-down that could degrade the seal.
