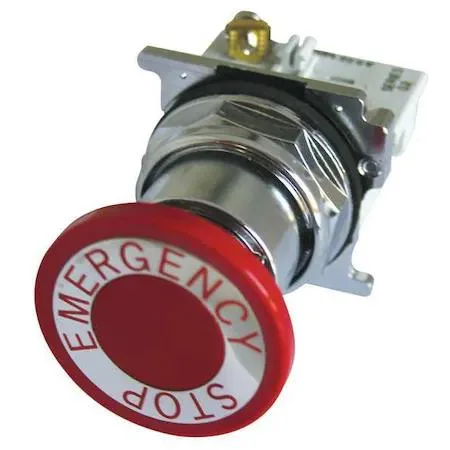

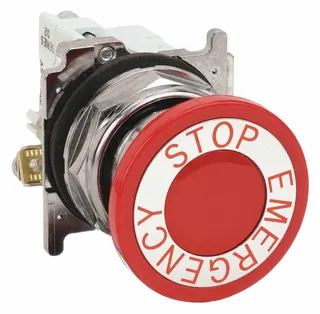

Red metal mushroom-head emergency stop button, 30 mm, chrome bezel

Eaton

Eaton 10250T5B63-71X Emergency Stop Push Button 30 mm Red

SKU CH-WY5M-94QS6

A 30 mm red emergency stop push button with maintained action, 40 mm mushroom head, 1NC contact rated 10A at 600V AC, NEMA 12/13/3/3R/4/4X and IP65 protection

  • Engine BrandEATON
  • Engine Size30 mm
  • 30 mm mushroom head enables fast emergency activation
  • 10 A at 600 V AC contact rating handles heavy industrial loads
  • IP65 and NEMA 4X ratings protect against dust and water ingress
  • Enclosed silver contacts with reliability nibs ensure dependable switching
  • CE, CSA and UL listed for compliance with safety standards

Emergency Stop Button 30 mm

This Eaton 10250T5B63-71X is a 30 mm emergency stop push button designed for industrial control panels and machinery safety circuits. Its red 40 mm mushroom head provides clear visual identification for operators who need to halt equipment quickly.

Maintained action with 1NC contact

The operator uses a maintained action that stays engaged until manually reset and carries a single normally closed contact rated at 10A @ 600V AC. This contact form is the deciding specification for safety circuits that require a positive break when the button is pressed.

Panel mount with IP65 and NEMA ratings

The chrome-plated zinc die-cast bezel mounts in a standard 30 mm cutout and achieves IP65 plus NEMA 12, 13, 3, 3R, 4 and 4X protection. Screw clamp terminals accept field wiring while diaphragm seals and drainage holes preserve the enclosure rating in wet or dusty environments.

Highlights

  • 30 mm mushroom head enables fast emergency activation
  • 10 A at 600 V AC contact rating handles heavy industrial loads
  • IP65 and NEMA 4X ratings protect against dust and water ingress
  • Enclosed silver contacts with reliability nibs ensure dependable switching
  • CE, CSA and UL listed for compliance with safety standards

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

What does the 30 mm size mean when I install this emergency stop button?

The 30 mm figure is the standard mounting-hole diameter, so the operator fits a 30 mm panel cut-out and secures with the supplied locking nut.

How do the NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings limit where I can mount the button?

Those ratings certify the enclosure against dust, water jets, oil and coolant, so the button can be mounted on outdoor or wash-down machinery without additional sealing.

What physical space does the 40 mm mushroom head and chrome bezel need behind the panel?

The 40 mm metal mushroom head projects above the panel, while the screw-clamp terminal block and grounding nibs require roughly 50 mm depth behind a 30 mm cut-out.
