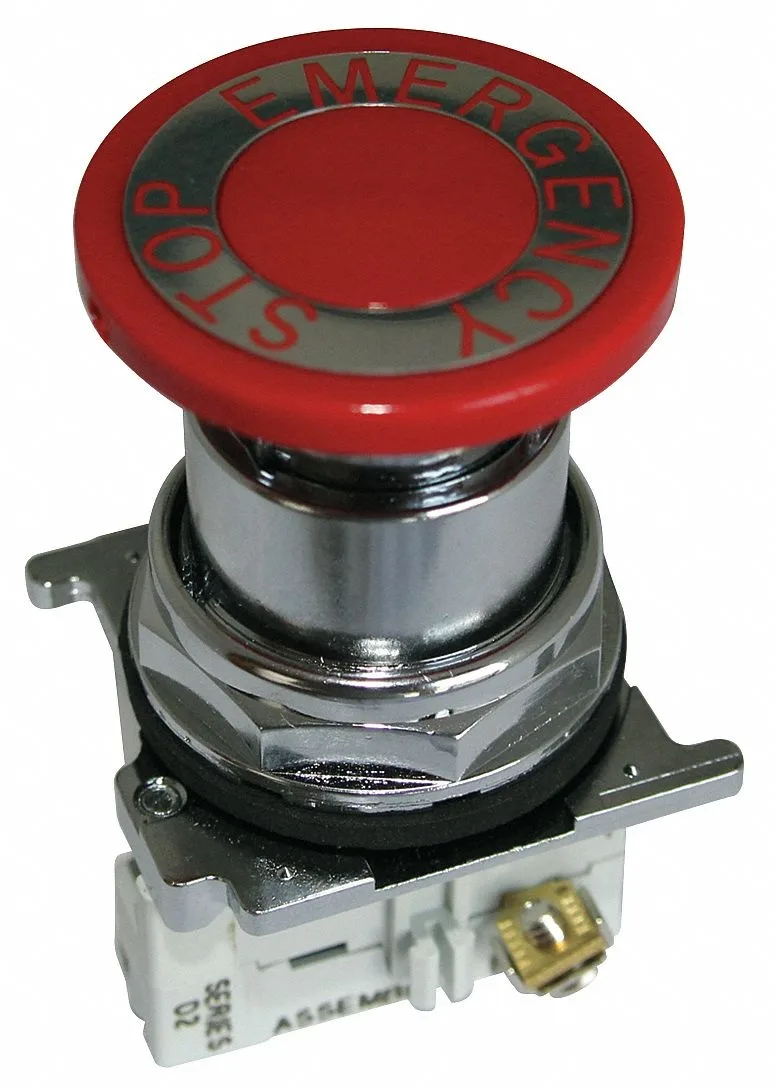

Red 30 mm metal emergency stop push button with 40 mm mushroom head and chrome bezel

Eaton

Eaton 10250T5B63-1X Emergency Stop Push Button 30 mm Red 1NO/1NC IP65

SKU CH-4X3A-CAFVT

30 mm red emergency-stop push button with 40 mm mushroom head, metal construction, 1NO/1NC contacts rated 10 A at 600 V AC, IP65 and NEMA 4X protection

  • Engine BrandEATON
  • Engine Size30 mm
  • Maintained action mushroom head stays latched until manually reset
  • 30 mm metal operator rated IP65 for wet environments
  • 1NO/1NC contacts rated 10 A at 600 V AC
  • NEMA 4X and 13 enclosure ratings suit wash-down areas
  • CE, CSA and UL listed for code-compliant installations

Emergency Stop Button 30 mm Red

This Eaton 10250T5B63-1X emergency stop push button is a 30 mm industrial control device with a red 40 mm mushroom head. It provides a maintained action and a 1NO/1NC contact form rated at 10A @ 600V AC. The unit carries NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings plus CE, CSA and UL listings for safety compliance.

Factory Assembled Screw Clamp Terminals

The button arrives factory assembled with screw clamp terminals for straightforward wiring. Installers should ensure the 30 mm mounting cutout matches the panel and that the chrome plated zinc die cast bezel seats evenly to maintain the IP65 seal. Over tightening the screws can damage the terminal block or compromise the metal head alignment.

Panel Cutout Voltage and Environment Checks

Before ordering, verify that your panel accommodates a 30 mm cutout and that the 10A 600V AC contact rating suits your control circuit. Confirm the operating environment fits within the NEMA 12, 13, 3, 3R, 4, 4X and IP65 protection classes. This device is not suitable for applications requiring momentary action or different contact configurations.

Highlights

  • Maintained action mushroom head stays latched until manually reset
  • 30 mm metal operator rated IP65 for wet environments
  • 1NO/1NC contacts rated 10 A at 600 V AC
  • NEMA 4X and 13 enclosure ratings suit wash-down areas
  • CE, CSA and UL listed for code-compliant installations

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

How can I verify the 30 mm emergency stop button is operating correctly after installation?

Press the red 40 mm mushroom head until it latches, then confirm the 1NO/1NC contacts change state at the screw-clamp terminals using a multimeter; the button should stay latched until twisted or pulled to reset.

What comes with the Eaton 10250T5B63-1X and what must be purchased separately?

The unit ships factory-assembled with a chrome-plated zinc die-cast bezel, metal 40 mm mushroom head and 1NO/1NC contact block; mounting hardware, legend plates and wiring are not included.

Which contact rating version should I choose for a 600 V AC control circuit?

The listed model provides a 10 A @ 600 V AC rating with 1NO/1NC contacts, suitable for standard emergency-stop circuits at that voltage.
