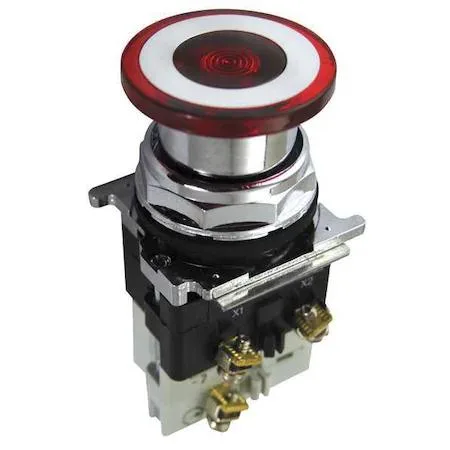

Red 30 mm emergency stop push button with 40 mm mushroom head and chrome bezel

Eaton

Eaton 10250T597LRD24-71X Emergency Stop Push Button 30mm Red 1NC

SKU CH-SZRA-KEF2J

Emergency stop push button with a 30 mm metal mushroom head, 1NC contact rated 10A at 600V, and IP65 protection

  • Engine BrandEATON
  • Engine Size30 mm
  • 30 mm mounting fits standard panels
  • 1 NC contact rated 10 A at 600 V
  • IP65 and NEMA 4X for harsh environments
  • 40 mm red mushroom head for quick actuation
  • CE, CSA and UL Listed compliance

Emergency Stop Button 30 mm Red 1NC

The Eaton 10250T597LRD24-71X is a maintained-action emergency stop push button designed for industrial safety circuits. Its 40 mm red mushroom head provides clear visibility and deliberate actuation for machine operators and maintenance personnel.

Verify Control Voltage

Confirm the control circuit operates within the 10A at 600V AC/DC contact rating. Ensure a 30 mm panel cut-out is available for the chrome-plated zinc die-cast bezel and that the screw-clamp terminals suit your wiring method.

Rated IP65 And NEMA 4X For Continuous Harsh

The sealed construction meets IP65 and NEMA 12, 13, 3, 3R, 4, 4X standards, resisting dust, water jets and corrosion during prolonged exposure. Factory-assembled contacts maintain reliable 1NC switching without degradation under sustained industrial use.

Highlights

  • 30 mm mounting fits standard panels
  • 1 NC contact rated 10 A at 600 V
  • IP65 and NEMA 4X for harsh environments
  • 40 mm red mushroom head for quick actuation
  • CE, CSA and UL Listed compliance

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

Does the 30 mm red emergency stop button ship with any mounting hardware or contacts, or must those be ordered separately?

The unit is factory assembled with a 1NC screw-clamp contact block and a chrome-plated zinc die-cast bezel, so no additional parts are required for basic installation.

How do I decide between the maintained-action mushroom head and other operator styles for this 10250T series?

This model uses a maintained 40 mm metal mushroom head that stays latched until manually reset, which is the standard choice for emergency-stop functions requiring deliberate restart.

What does the 10 A at 600 V AC/DC contact rating mean when the button is wired into a control circuit?

The single normally-closed contact can safely break up to 10 amps at 600 volts AC or DC, making it suitable for direct control of contactors, relays or small motors in the protected circuit.
