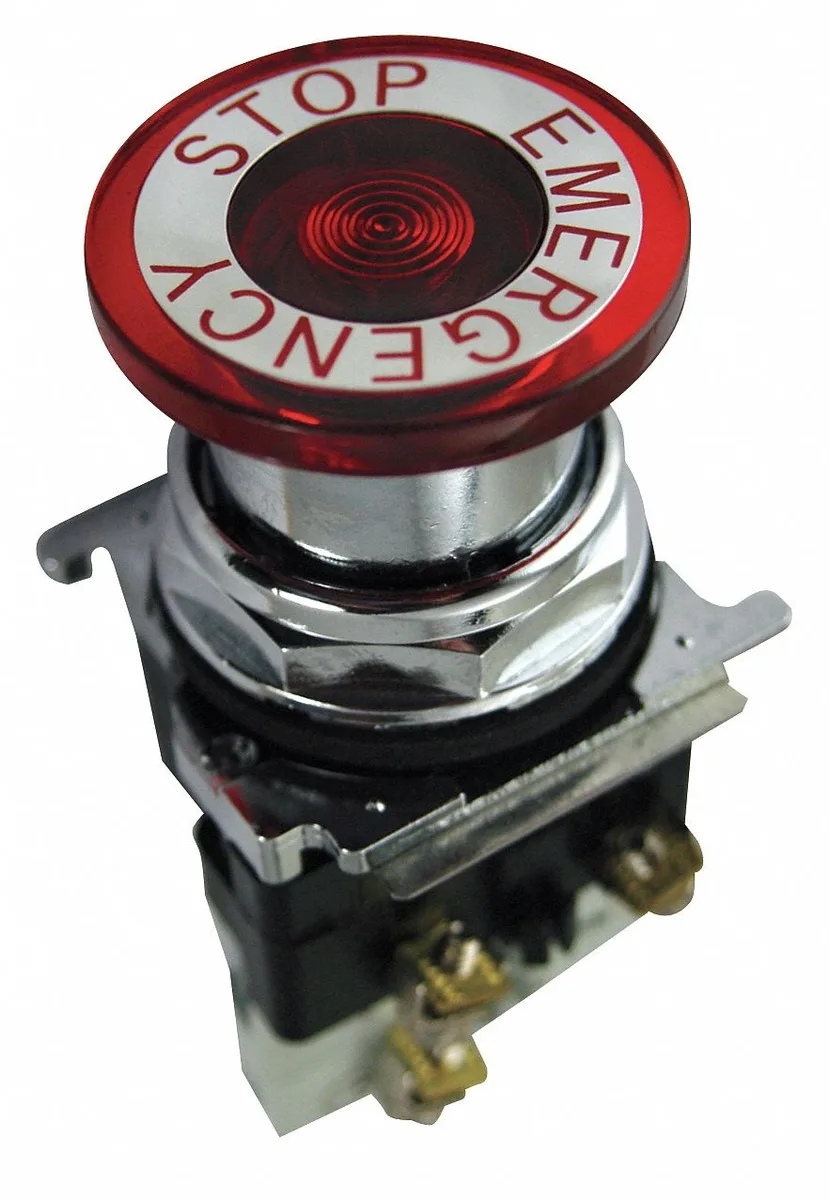

Red 30 mm emergency stop push button with 40 mm mushroom head, chrome bezel, 1NC contact

Eaton

Eaton 10250T580C53-71X Emergency Stop Push Button 30mm Red 1NC

SKU CH-WV8N-GQG8C

30 mm red emergency-stop push button with 40 mm mushroom head, 1 NC contact rated 10 A at 600 V, IP65 and NEMA 4X enclosure

  • Engine BrandEATON
  • Engine Size30 mm
  • 30 mm operator fits standard panels
  • 40 mm red mushroom head for fast identification
  • 1NC contact rated 10 A at 600 V AC/DC
  • IP65 and NEMA 4X enclosure resists dust and water jets
  • CE, CSA and UL Listed for code compliance

Product Identity

The Eaton 10250T580C53-71X is a 30 mm emergency stop push button designed for industrial safety circuits. It features a red 40 mm mushroom head with maintained action and a single normally closed contact rated at 10A at 600V AC/DC.

Installation Checks

Verify that the mounting panel accommodates a 30 mm cut-out and that the screw clamp terminals suit your wiring gauge. Confirm the NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings match the enclosure environment and that the chrome plated zinc die cast bezel meets grounding requirements.

Suitability

This unit suits panels requiring a single 1NC safety contact with diaphragm seals and drainage holes for harsh conditions. It is not for applications needing normally open contacts, multiple operators, or a different head colour or legend. Buyers who want more contact blocks or a momentary action should look at something else.

Highlights

  • 30 mm operator fits standard panels
  • 40 mm red mushroom head for fast identification
  • 1NC contact rated 10 A at 600 V AC/DC
  • IP65 and NEMA 4X enclosure resists dust and water jets
  • CE, CSA and UL Listed for code compliance

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

Does the Eaton 10250T580C53-71X include mounting hardware or a legend plate in the box?

The unit ships as a complete 30 mm emergency-stop operator with a 40 mm red mushroom head, chrome-plated zinc die-cast bezel, 1NC contact block rated 10 A at 600 V AC/DC, screw-clamp terminals and built-in grounding nibs.

When should I choose the 1NC contact version instead of a 1NO or 2NC alternative?

Select the 1NC configuration when your safety circuit requires a normally-closed contact that opens immediately on actuation, providing a direct break in the control circuit for Category 0 or 1 stop functions.

What does the 10 A at 600 V rating mean once the button is wired into a panel?

It confirms the silver contacts can continuously carry 10 amperes and safely interrupt that current at up to 600 volts AC or DC, so the device is suitable for standard industrial control circuits without additional derating.
