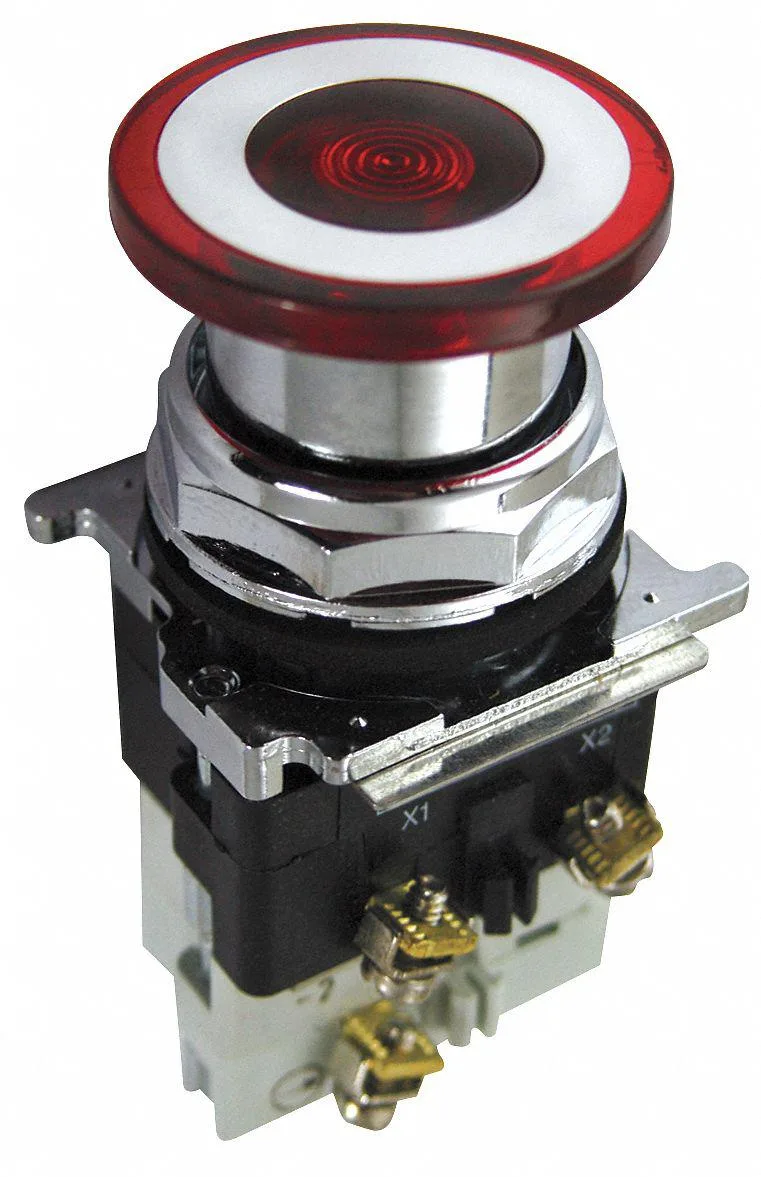

Red 30 mm emergency stop push button with 40 mm mushroom head chrome bezel 1NC contact

Eaton

Eaton 10250T580C47-71X 30 mm Emergency Stop Push Button Red 1NC

SKU CH-SM9Z-41VMC

30 mm emergency stop push button with 40 mm mushroom head, metal construction, 1NC contact, 10 A at 600 V, IP65 and NEMA 12, 13, 3, 3R, 4, 4X ratings

  • Engine BrandEATON
  • Engine Size30 mm
  • 30 mm mushroom head enables fast emergency actuation
  • 1NC contact rated 10 A at 600 V AC/DC breaks power reliably
  • IP65 and NEMA 4X ratings protect against dust and water jets
  • Chrome-plated zinc die-cast bezel resists corrosion in harsh environments
  • Factory-assembled unit with screw-clamp terminals simplifies installation

Emergency Stop Button 30 mm

The Eaton 10250T580C47-71X is a 30 mm emergency stop push button with a red 40 mm mushroom head and a single normally closed contact. It is built for industrial control panels that require a maintained-action safety stop with a metal operator head.

Panel Mounting and Wiring

The button uses screw clamp terminals for secure wiring and fits a standard 30 mm panel cutout. Its chrome-plated zinc die-cast bezel and NEMA 12, 13, 3, 3R, 4, 4X ratings allow installation in indoor and outdoor enclosures exposed to dust, water or oil.

Contact Rating and Environmental Protection

The 1NC contact is rated at 10A at 600V AC/DC for reliable circuit interruption. An IP65 rating protects the mechanism from low-pressure water jets and ingress of solid particles during normal operation.

Highlights

  • 30 mm mushroom head enables fast emergency actuation
  • 1NC contact rated 10 A at 600 V AC/DC breaks power reliably
  • IP65 and NEMA 4X ratings protect against dust and water jets
  • Chrome-plated zinc die-cast bezel resists corrosion in harsh environments
  • Factory-assembled unit with screw-clamp terminals simplifies installation

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

How long will the 10 A contact rating hold up when the emergency stop is held continuously?

The contact is rated for 10 A at 600 V AC/DC; sustained operation stays within that limit as long as the circuit does not exceed the rated voltage and current.

Does the button generate noticeable heat or noise during an all-day maintained stop?

The push-button itself has no moving electrical parts that produce heat or sound; any warmth comes only from current passing through the 10 A contacts.

What mounting cut-out and wiring method are required to install this 30 mm operator?

It fits a standard 30 mm panel cut-out and uses screw-clamp terminals for wire connection.
