Red flush push button operator, 30 mm metal head, chrome bezel, momentary action

Eaton

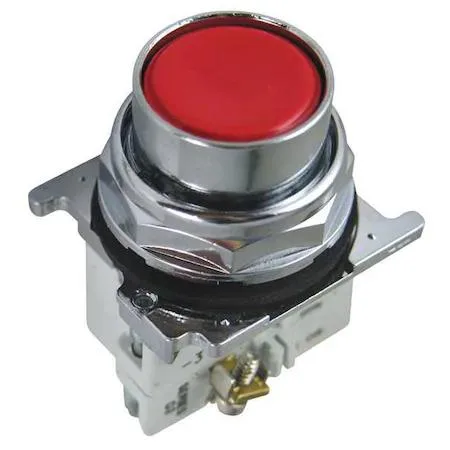

Eaton 10250T30R Flush Push Button Operator Red 1NO/1NC 30 mm

SKU CH-K7W9-YJ029

Red flush push-button operator, 30 mm, momentary action, metal head, 1NO/1NC contacts rated 10 A at 600 V AC, chrome-plated zinc die-cast bezel, IP65 and NEMA 12, 13, 3, 3R, 4, 4X.

  • Engine BrandEATON
  • Engine Size30 mm
  • Red flush operator gives clear visual status
  • 30 mm cut-out fits standard panel layouts
  • 1NO/1NC contacts switch control circuits directly
  • IP65 and NEMA 4X ratings protect against dust and water
  • 10 A at 600 V AC rating handles industrial loads

30 mm Red Flush Push Button Operator

This Eaton 10250T30R is a momentary flush push button operator with a 30 mm metal head in red. It provides one normally open and one normally closed contact rated at 10A at 600V AC. The unit carries NEMA 12, 13, 3, 3R, 4 and 4X ratings plus IP65 protection for demanding industrial environments.

Screw Clamp Terminals Simplify Wiring

Installation uses screw clamp terminals that accept standard wire gauges for secure connections. The chrome plated zinc die cast bezel mounts through a standard 30 mm panel cutout. Diaphragm seals and drainage holes maintain the IP65 seal, while enclosed silver contacts and grounding nibs reduce the risk of contamination or loose terminations during assembly.

Verify Panel Cutout and Circuit Requirements

Confirm your panel provides a 30 mm clearance hole and sufficient depth for the operator body behind the mounting surface. Ensure the control circuit does not exceed the 10A, 600V AC contact rating and that the NEMA and IP ratings match the enclosure specification. This operator is not suited for applications requiring illuminated indication or maintained latch action.

Highlights

  • Red flush operator gives clear visual status
  • 30 mm cut-out fits standard panel layouts
  • 1NO/1NC contacts switch control circuits directly
  • IP65 and NEMA 4X ratings protect against dust and water
  • 10 A at 600 V AC rating handles industrial loads

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

How do I verify the Eaton 10250T30R is operating correctly after installation?

Press the red flush button; the momentary action should close the 1NO contact and open the 1NC contact, then return to the original state when released.

What components are included with the Eaton 10250T30R and what must be purchased separately?

The package contains the 30 mm flush push button operator with metal head, chrome-plated zinc die-cast bezel, diaphragm seals, drainage holes, enclosed silver contacts, grounding nibs, reliability nibs and screw-clamp terminals; a legend plate is not included.

Which contact rating version of the Eaton 10250T30R should I select for a 600 V AC circuit?

This model is rated 10 A at 600 V AC with a 1NO/1NC contact form, making it suitable for that voltage level.
