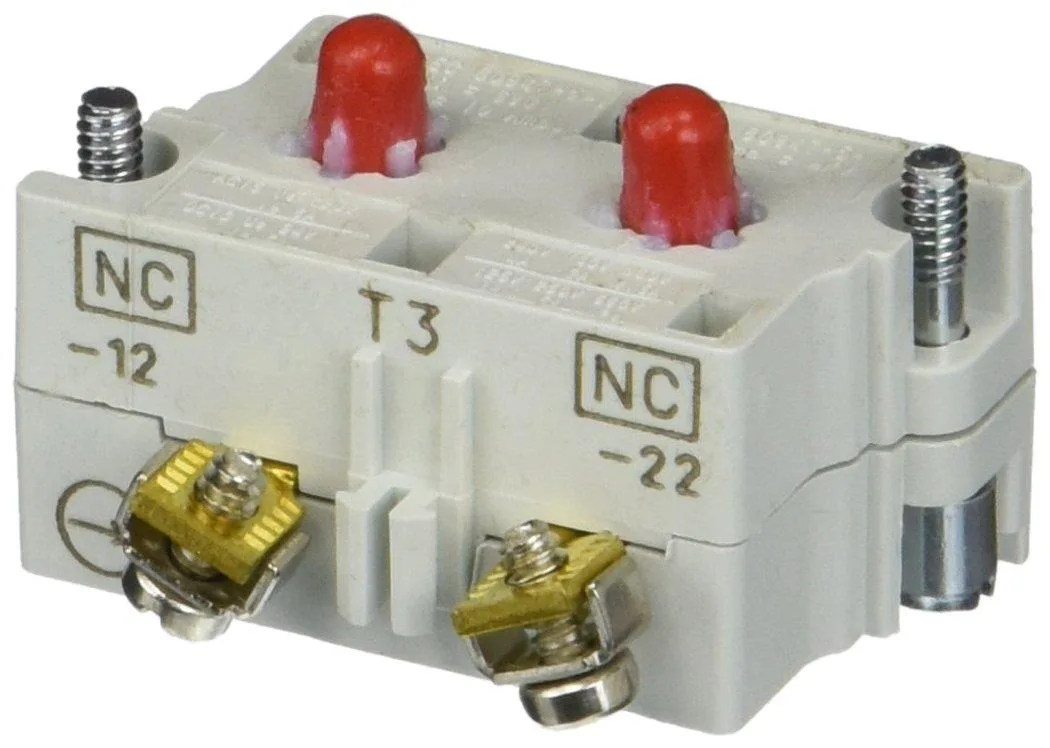

Gray rectangular contact block with two terminals 30 mm wide

Eaton

Eaton 10250T3 Contact Block 2NC 30 mm Gray

SKU CH-6PQJ-4AC6J

Gray 30 mm contact block with two normally closed contacts rated 10 A at 660 V for Eaton 10250T push buttons and indicating lights

  • Engine BrandEATON
  • Engine Size30 mm
  • 2NC momentary action for reliable control circuits
  • 10 A at 660 V AC/DC handles demanding loads
  • 30 mm mounting fits Eaton 10250T operators
  • Pressure terminals simplify wiring
  • CE, CSA and UL listed for compliance

30 mm Gray Contact Block for 10250T Operators

This Eaton 10250T3 contact block fits 30 mm push buttons and indicating lights from the 10250T series. It provides two normally closed contacts in a gray housing. The unit is designed for industrial control panels where momentary action is required. It carries CE, CSA and UL listings for compliance.

10 A at 660 V rating with A600/P600 designation

The block handles 10 A at up to 660 V AC or DC, suitable for standard control-circuit voltages. The NEMA A600/P600 rating confirms performance across typical pilot-duty loads. Pressure terminals accept solid or stranded wire without special tooling. It is not intended for high-power switching beyond the stated contact rating.

Pressure terminals and direct 30 mm mounting

Pressure-terminal connections speed up wiring and reduce loose-conductor faults. The 30 mm form factor mounts directly onto compatible Eaton operators without adapters. Gray colour matches standard 10250T series aesthetics for visual consistency. No additional accessories or software are included with this contact block.

Highlights

  • 2NC momentary action for reliable control circuits
  • 10 A at 660 V AC/DC handles demanding loads
  • 30 mm mounting fits Eaton 10250T operators
  • Pressure terminals simplify wiring
  • CE, CSA and UL listed for compliance

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

Will the 30 mm Eaton 10250T3 contact block fit my existing 10250T 30 mm push-button operators?

Yes, the block is built for Eaton 10250T 30 mm push buttons and indicating lights, so it mounts directly on those operators.

How can I verify the 2NC contacts are operating correctly after wiring?

Press the momentary operator and measure continuity across each normally-closed circuit; both should open cleanly when actuated and close again on release.

Does the package include mounting hardware or only the gray contact block itself?

The block ships with pressure-terminal connectors installed; mounting screws and operator hardware are sold separately.
