Red mushroom-head push button, 30 mm chrome bezel, 40 mm metal cap

Eaton

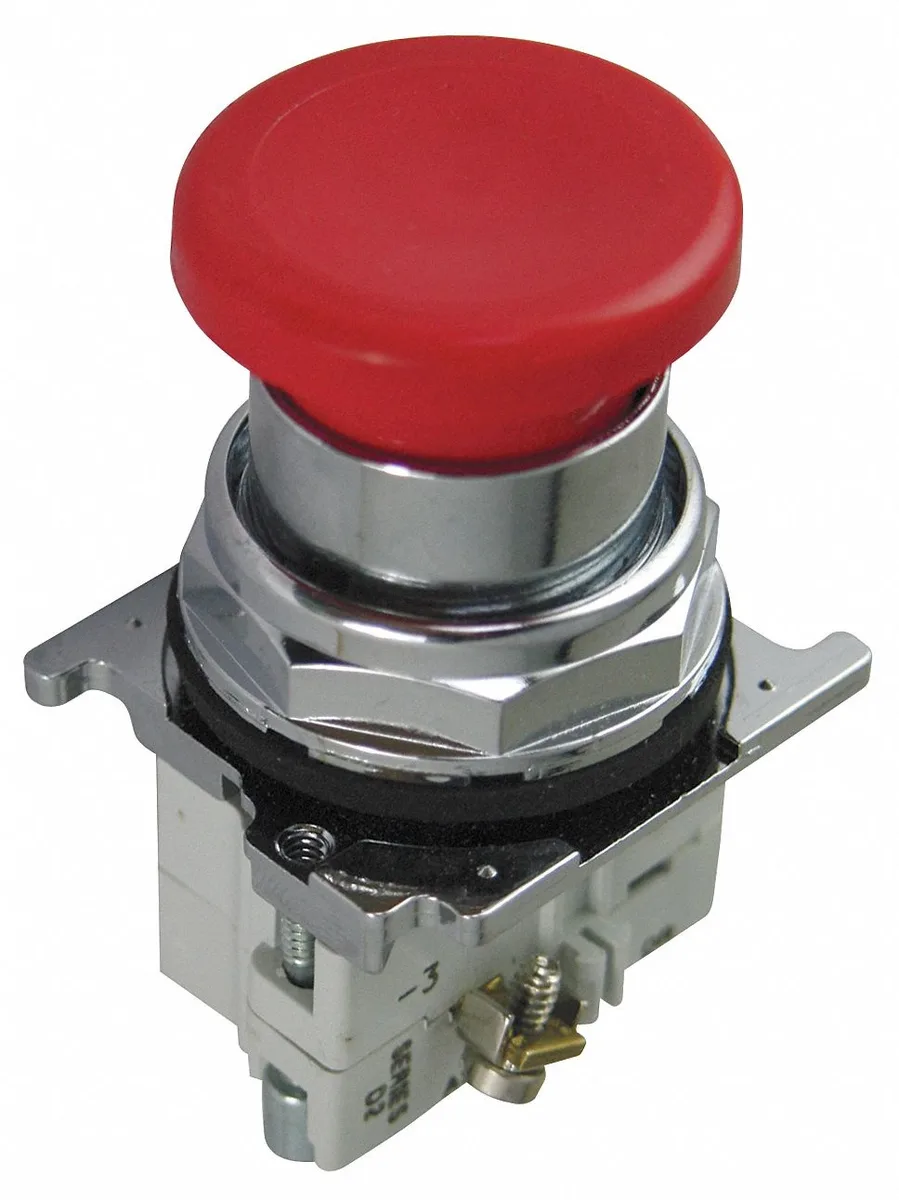

Eaton 10250T26R Mushroom Head Push Button 30 mm Red 1NC

SKU CH-BJRW-8M30N

A 30 mm red mushroom-head push button with momentary action, 1NC contact rated 10A @ 600V AC, IP65 and NEMA 12, 13, 3, 3R, 4, 4X protection

  • Engine BrandEATON
  • Engine Size30 mm
  • Momentary action for precise control
  • 40 mm metal mushroom head, 30 mm mounting
  • 1NC contact rated 10 A at 600 V AC
  • NEMA 4X and IP65 sealing with gasket and drainage
  • UL, CSA and CE listed for industrial safety

30 mm Mushroom-Head Emergency Stop

The Eaton 10250T26R is a 30 mm red mushroom-head push button built for industrial control panels. It provides a single normally-closed contact rated at 10A @ 600V AC for momentary emergency-stop or safety-interlock duties. The metal operator head and chrome-plated zinc die-cast bezel withstand harsh environments while the enclosed silver contacts ensure reliable switching over long service life.

Panel-mount safety device for NEMA 12/13/3/3R/4/4X

The operator fits a standard 30 mm cut-out and uses screw-clamp terminals for secure wiring without special tools. A compression sealing gasket, diaphragm seals and drainage holes maintain IP65 protection against dust and water ingress, while grounding nibs simplify panel bonding. The momentary action returns automatically when released, freeing the operator to reset the circuit without a maintained latch mechanism.

No legend plate or illumination included

The button ships without a legend, so the installer must supply or engrave identification to meet site labelling requirements. Absence of an internal lamp means a separate indicator or illuminated operator is needed if visual status feedback is required. CE, CSA and UL Listed markings confirm compliance for North American and European installations without additional certification effort.

Highlights

  • Momentary action for precise control
  • 40 mm metal mushroom head, 30 mm mounting
  • 1NC contact rated 10 A at 600 V AC
  • NEMA 4X and IP65 sealing with gasket and drainage
  • UL, CSA and CE listed for industrial safety

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

How many amps can the 1NC contact handle at 600V AC before it becomes the limiting factor?

The single normally-closed contact is rated for 10A at 600V AC, so sustained loads above 10 amps will exceed its rating.

Will the IP65-rated enclosure and silver contacts stay cool and quiet during continuous daily operation?

The push-button has no moving fan or active cooling; heat rise depends on the 10A contact current, and operation is silent because the momentary action only moves when pressed.

What panel cut-out size and mounting hardware must I already have to install this 30 mm operator?

You need a standard 30 mm panel hole; the chrome-plated zinc die-cast bezel includes grounding nibs and a compression sealing gasket, so no extra flange or adapter is required.
