Eaton 30 mm red metal push button with chrome bezel

Eaton

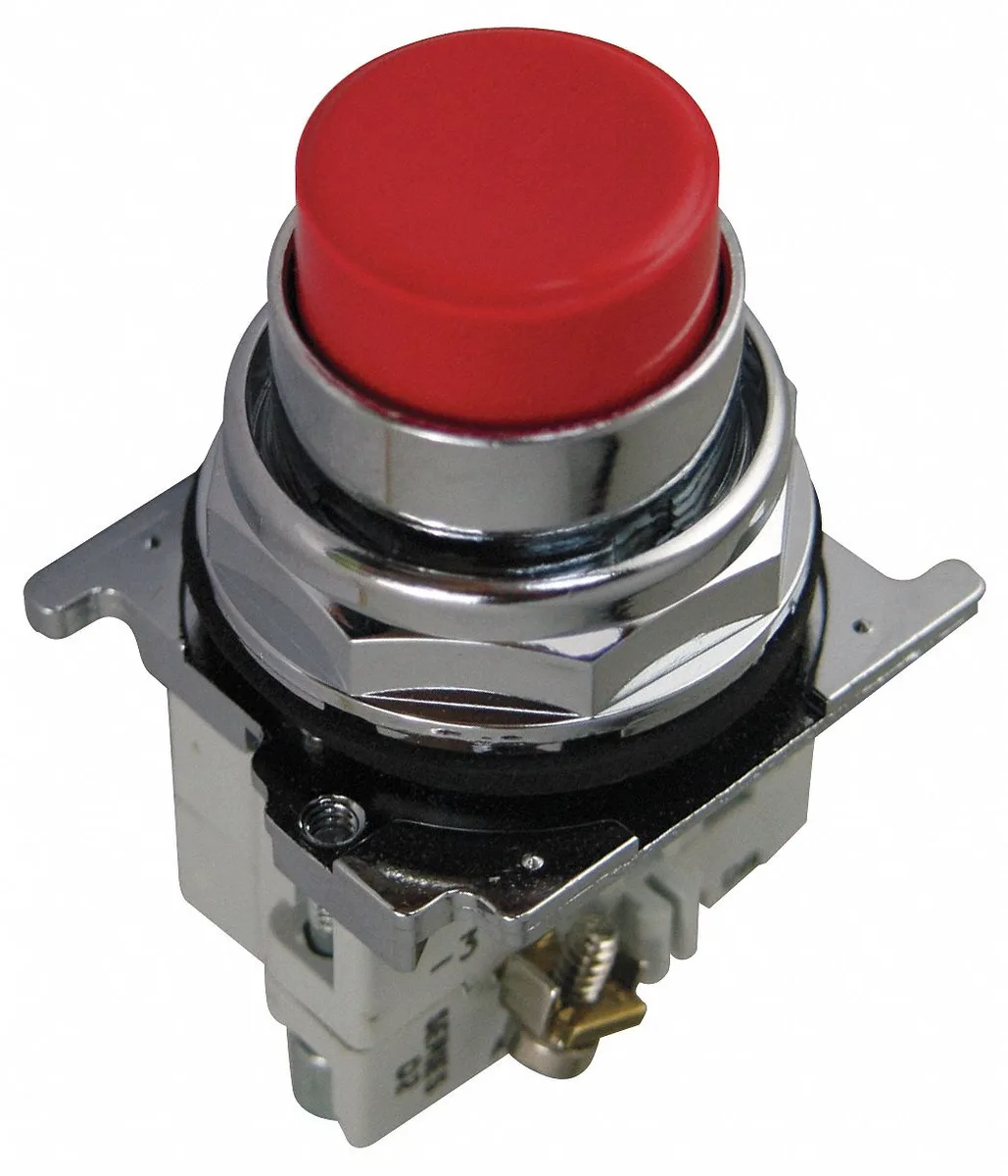

Eaton 10250T25R 30mm Red Metal Push Button

SKU CH-CM46-MFP2G

A 30 mm momentary push button with metal head, chrome bezel, 1NO contact rated 10A at 600V AC, IP65 and NEMA 4X protection

  • Engine BrandEATON
  • Engine Size30 mm
  • Red metal operator rated 10A @ 600V AC for reliable control
  • IP65 and NEMA 12, 13, 3, 3R, 4, 4X sealing resists dust and water
  • Momentary extended button with diaphragm seal and drainage holes
  • Enclosed silver contacts and grounding nibs ensure safe operation
  • CE, CSA and UL Listed for industrial compliance

Industrial 30 mm Red Metal Push Button

The Eaton 10250T25R is a non-illuminated industrial push button designed for control panels and machinery interfaces. It features a 30 mm metal operator with momentary action and a red extended head. The unit carries NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings for harsh environments.

Contact Rating 10A at 600V AC

The single specification that decides fit is the contact rating of 10A at 600V AC with a 1NO contact form. Screw clamp terminals accept standard wiring and the operator includes enclosed silver contacts with reliability nibs. Diaphragm seals and drainage holes maintain the ingress protection rating.

Suits Panels Needing a Single Momentary Operator

This button suits panels requiring one rugged momentary operator with high environmental sealing. It is not for applications needing illuminated indication or maintained latching action. Buyers who want multiple operators in one housing or a different contact configuration should look at something else.

Highlights

  • Red metal operator rated 10A @ 600V AC for reliable control
  • IP65 and NEMA 12, 13, 3, 3R, 4, 4X sealing resists dust and water
  • Momentary extended button with diaphragm seal and drainage holes
  • Enclosed silver contacts and grounding nibs ensure safe operation
  • CE, CSA and UL Listed for industrial compliance

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

What does the 10A @ 600V AC rating mean for the circuits I can control?

The contacts are rated to switch up to 10 amps at 600 volts AC, so they can directly control motor starters, contactors or similar loads within that limit.

What NEMA and IP ratings does the 30 mm push button carry?

It meets NEMA 12, 13, 3, 3R, 4 and 4X as well as IP65, making it suitable for indoor and outdoor use with protection against dust, water jets and corrosion.

How does the 30 mm metal operator mount in a panel?

The 30 mm metal body fits a standard 30 mm panel cut-out and secures with a chrome-plated zinc die-cast bezel and screw-clamp terminals for wiring.
