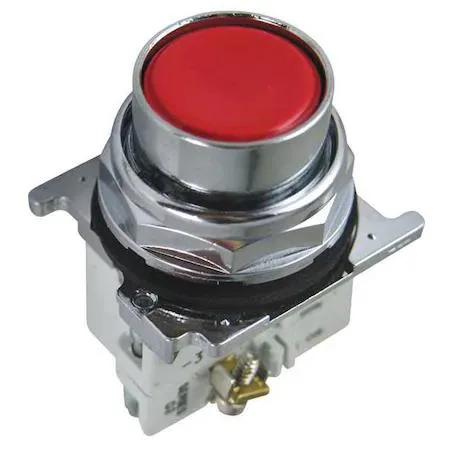

Eaton 30mm metal push button, red flush head, chrome bezel

Eaton

Eaton 10250T23R Cutler-Hammer 30mm Metal Push Button

SKU CH-5NZ3-DN8HQ

A 30 mm metal flush push button with momentary action, 10 A at 600 V AC contact rating, and IP65 protection for industrial control panels

  • Engine BrandEATON
  • Engine Size30 mm
  • Metal construction withstands harsh environments
  • IP65 and NEMA ratings resist water and dust ingress
  • Momentary flush action suits control-panel operation
  • 10 A at 600 V AC handles industrial loads
  • CE, CSA and UL listings confirm safety compliance

30 mm Industrial Push Button

The Eaton 10250T23R is a 30 mm flush metal push button designed for industrial control panels. It suits operators who need a momentary action switch rated for 10A at 600V AC in a single-operator format. The red chrome-plated zinc die-cast head provides clear visual identification on machinery. This non-illuminated unit fits standard 30 mm panel cut-outs for direct mounting.

NEMA and IP Environmental Limits

The operator carries NEMA ratings 12, 13, 3, 3R, 4 and 4X plus an IP65 rating, sealing it against dust, water jets and oil. These standards define the practical environmental ceiling for the device. The screw-clamp terminals accept standard wiring but the contact rating of 10A at 600V AC sets the electrical limit. No legend plate is included so custom labelling must be sourced separately.

Panel Mount Installation Notes

Installation uses the standard 30 mm panel cut-out with the included mounting hardware. Diaphragm seals and drainage holes help maintain the IP65 seal but require correct torque on the locking nut to prevent ingress. Enclosed silver contacts and grounding nibs reduce wiring faults if terminals are fully tightened. The momentary action returns automatically so no mechanical latch adjustment is needed.

Highlights

  • Metal construction withstands harsh environments
  • IP65 and NEMA ratings resist water and dust ingress
  • Momentary flush action suits control-panel operation
  • 10 A at 600 V AC handles industrial loads
  • CE, CSA and UL listings confirm safety compliance

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

Should I choose the 1NO or a different contact form for this push button?

This model is supplied with a 1NO contact form; select it when you need a single normally-open circuit that closes only while the button is pressed.

What does the 10A at 600V AC rating mean when the button is installed in a control panel?

The contacts are rated to switch up to 10 amps at 600 volts AC, so the button can directly control loads such as motor starters or contactor coils within those limits.

Which NEMA and IP ratings apply, and what environmental protection do they provide?

The operator meets NEMA 12, 13, 3, 3R, 4 and 4X plus IP65, giving protection against dust, water jets, oil and corrosion in indoor and outdoor industrial settings.
