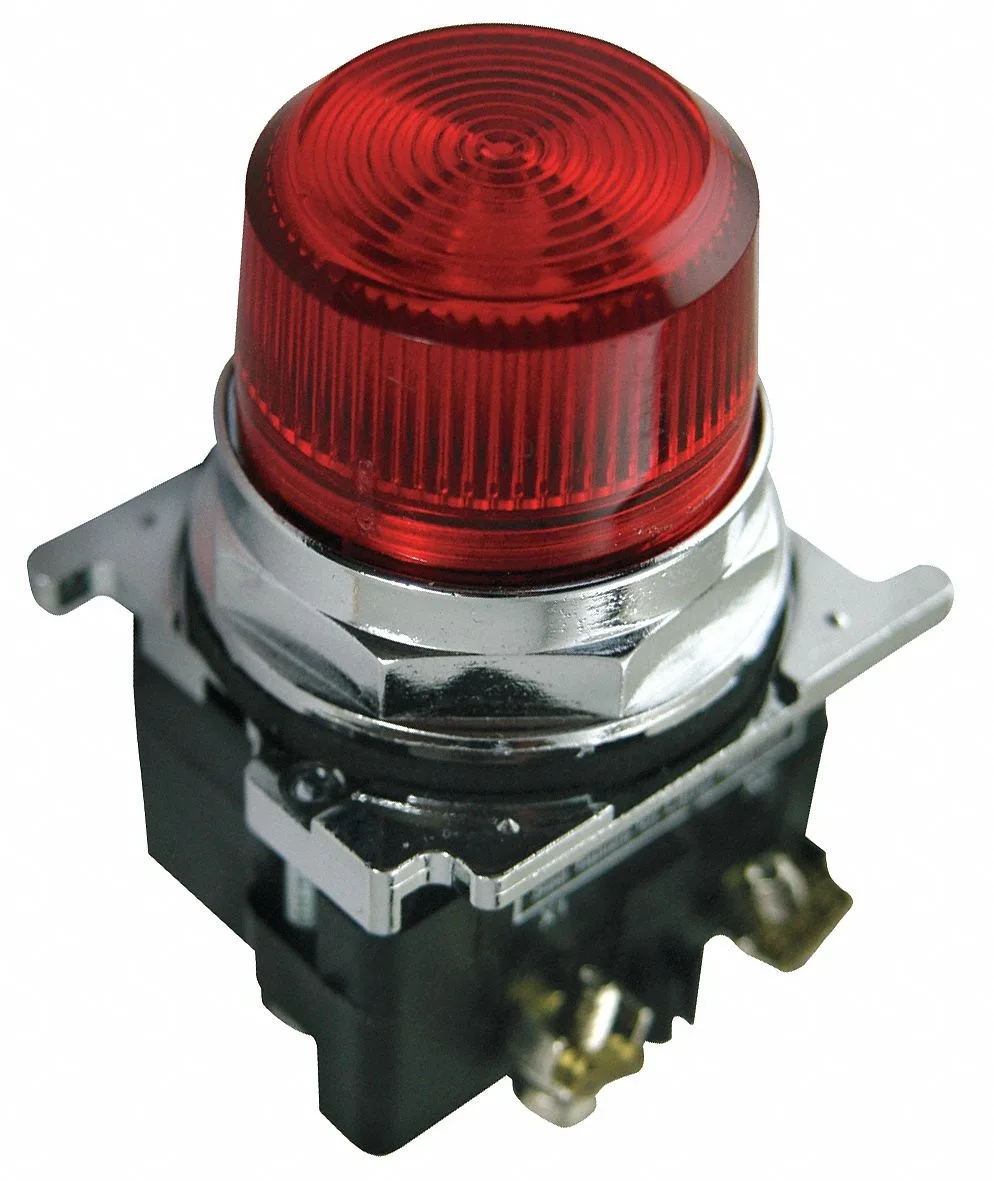

Chrome pilot light with red Fresnel lens 30 mm round metal body

Eaton

Eaton 10250T197LRP2A Pilot Light 120V AC Red 30 mm

SKU CH-8M1M-597E2

30 mm red LED pilot light, 120 V AC, NEMA 4X and IP65 rated for industrial panels

  • Engine BrandEATON
  • Engine Size30 mm
  • Red LED pilot light for clear status indication at 120 V AC
  • 30 mm mounting fits standard industrial panel cut-outs
  • NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings protect against dust and water ingress
  • Chrome-plated zinc die-cast body with Fresnel plastic lens resists corrosion and impact
  • Full-voltage LED module included with 39R129 replacement lamp reference

30 mm Pilot Light for 120 V AC Panels

The Eaton 10250T197LRP2A is a complete pilot-light assembly built for 120 V AC control circuits. It mounts in a standard 30 mm cut-out and uses a red LED lamp module behind a Fresnel plastic lens. The chrome-plated zinc die-cast body carries NEMA 12, 13, 3, 3R, 4 and 4X ratings plus IP65 ingress protection. CE, CSA and UL listings confirm compliance for industrial panels.

Pressure-Plate Terminals and Replaceable Lamp

Pressure-plate terminals accept solid or stranded wire without specialised tooling, speeding panel wiring. The full-voltage LED module (part 39R129) plugs into the operator so a burnt-out lamp can be swapped in seconds without removing the whole unit. Metal construction and the sealed lens resist oil, coolant and wash-down environments common in machine-tool and process-plant settings.

Suited for New Builds and Direct Replacements

This unit fits panels that specify a 30 mm round red indicator at 120 V AC with the listed NEMA and IP ratings. Buyers needing a different voltage, colour, lens style or a smaller cut-out diameter should look at other models. It is not intended for low-voltage DC control circuits or for applications requiring a flashing or multi-colour function.

Highlights

  • Red LED pilot light for clear status indication at 120 V AC
  • 30 mm mounting fits standard industrial panel cut-outs
  • NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings protect against dust and water ingress
  • Chrome-plated zinc die-cast body with Fresnel plastic lens resists corrosion and impact
  • Full-voltage LED module included with 39R129 replacement lamp reference

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

Which replacement lamp fits the 10250T197LRP2A pilot light?

Use the 39R129 lamp module; it matches the 120 V AC LED and full-voltage design of this 30 mm unit.

What environmental rating limits continuous operation first?

The NEMA 12, 13, 3, 3R, 4, 4X and IP65 ratings protect against dust and water; the 120 V AC LED runs cool, so the enclosure rating is the practical limit.

How much heat or noise does the 120 V AC LED produce during all-day use?

The LED lamp generates minimal heat and no audible noise; the chrome-plated zinc body dissipates what little warmth there is without a fan.
