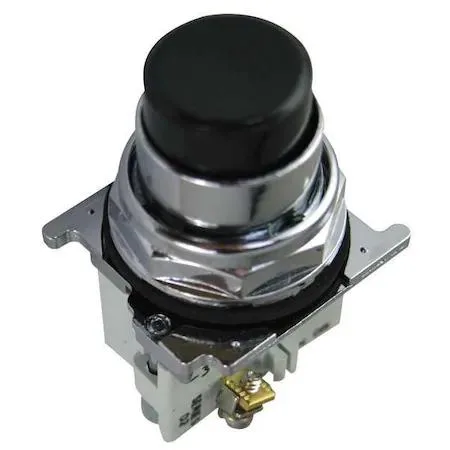

Black 30 mm extended push button with zinc bezel and plastic head

Eaton

Eaton 10250T111 Extended Push Button 30 mm Black Non-Illuminated

SKU CH-BJNT-N6HGR

A 30 mm momentary push button with IP65 sealing and NEMA 4X rating for industrial panels

  • Engine BrandEATON
  • Engine Size30 mm
  • 30 mm extended push button for easy actuation
  • Momentary metal operator with plastic head withstands industrial use
  • Zinc die-cast bezel resists corrosion in harsh environments
  • IP65 and NEMA 4X ratings seal out dust and water
  • One-piece body with grounding nibs simplifies panel mounting

Extended 30 mm Push Button

The Eaton 10250T111 is a 30 mm extended push button designed for industrial control panels. Its momentary action and non-illuminated black head suit operators who need tactile, visible actuation in machinery or process environments. The one-piece metal body with a zinc die-cast bezel provides structural rigidity for repeated use.

Panel Cut-Out and Environmental Fit

Verify that your panel accommodates a 30 mm mounting hole and the extended button profile before ordering. The device carries NEMA 12, 13, 3, 3R, 4 and 4X ratings plus IP65, so it fits indoor and outdoor enclosures exposed to dust, water spray or hose-directed water. Drainage holes and grounding nibs are integrated into the body.

Replaces Worn or Lower-Rated Operators

This unit replaces damaged, corroded or lower-rated push buttons in existing Eaton 10250 series stations or compatible cut-outs. The jump is worth it when the application demands the combined NEMA and IP65 sealing, metal-body durability and CE, CSA and UL Listed compliance for safety-critical circuits.

Highlights

  • 30 mm extended push button for easy actuation
  • Momentary metal operator with plastic head withstands industrial use
  • Zinc die-cast bezel resists corrosion in harsh environments
  • IP65 and NEMA 4X ratings seal out dust and water
  • One-piece body with grounding nibs simplifies panel mounting

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

What is included with the Eaton 10250T111 push button and what must be purchased separately?

The unit is a one-piece metal body with a black plastic head and zinc die-cast bezel. It includes grounding nibs and drainage holes. Contact blocks and legend plates are not included and must be bought separately.

Which NEMA or IP rating version of the 30 mm Eaton 10250T111 should I select for my environment?

This single model carries NEMA 12, 13, 3, 3R, 4 and 4X plus IP65. Choose it when you need protection against dust, water jets, oil and corrosion in indoor or outdoor industrial settings.

What does the 30 mm panel cutout mean when installing the Eaton 10250T111 in a control panel?

The operator requires a standard 30 mm mounting hole. Its extended momentary head protrudes for easy actuation, while the integrated grounding nibs and drainage holes simplify panel assembly and maintain NEMA 4X and IP65 sealing.
