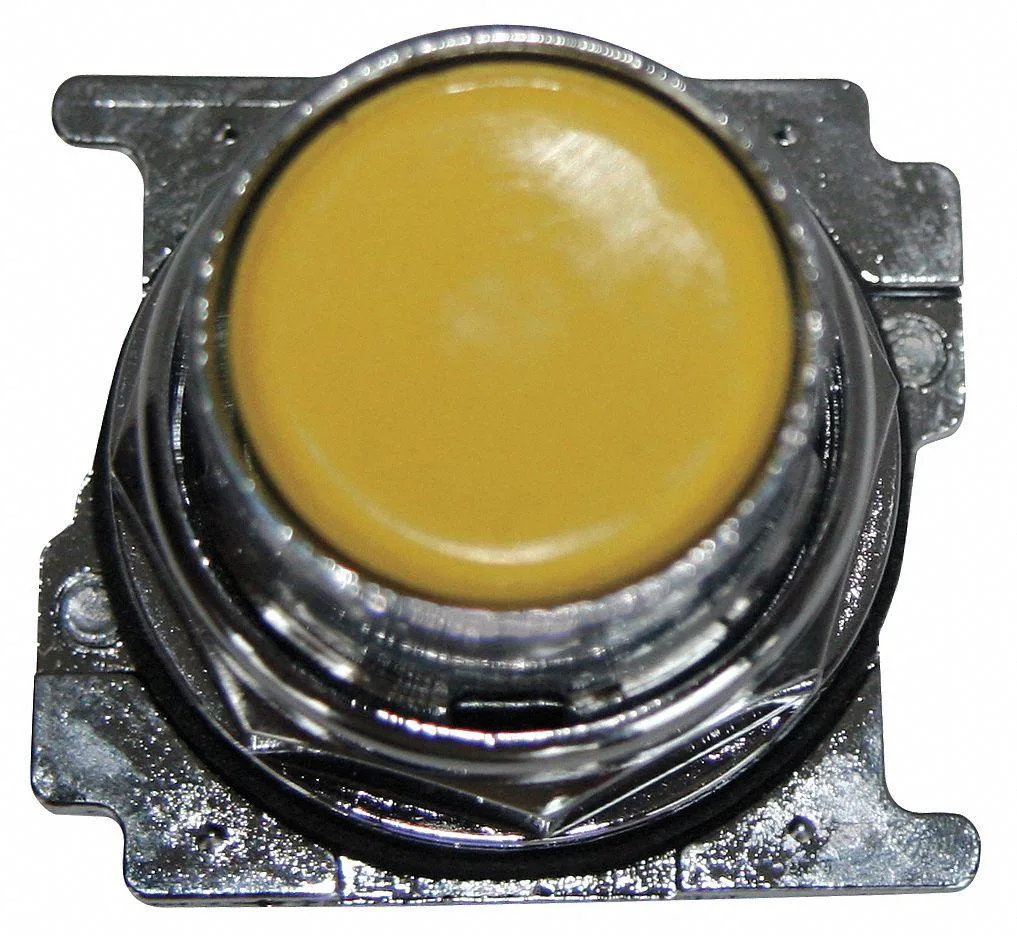

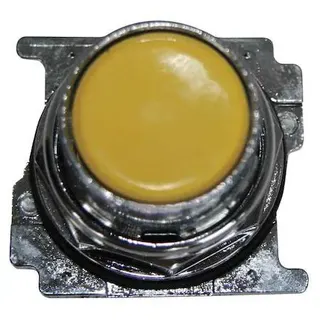

Yellow 30 mm flush push button with metal body and zinc die cast bezel

Eaton

Eaton 10250T104 Cutler-Hammer 30 mm Yellow Push Button Operator

SKU CH-2KPB-NYM5R

A 30 mm yellow flush push-button operator rated NEMA 12, 13, 3, 3R, 4, 4X and IP65 with a metal body, plastic head, zinc die-cast bezel, drainage holes, grounding nibs and one-piece construction, CE.

  • Engine BrandEATON
  • Engine Size30 mm
  • Flush yellow button for clear emergency identification
  • 30 mm metal body with zinc die-cast bezel withstands heavy industrial use
  • IP65 and NEMA 4X ratings protect against dust, water and corrosion
  • Momentary flush action with one-piece construction simplifies panel installation
  • CE, CSA and UL listed for compliance in regulated environments

30 mm Yellow Push Button Operator

The Eaton 10250T104 Cutler-Hammer is a flush, momentary operator built with a metal body and a yellow plastic head. It carries a zinc die-cast bezel and achieves NEMA ratings 12, 13, 3, 3R, 4 and 4X alongside IP65 protection. The one-piece construction includes drainage holes and grounding nibs for reliable panel mounting in demanding industrial environments.

Replaces worn or damaged 30 mm operators

This unit serves as a direct replacement when an existing flush button fails or its sealing degrades. The jump is worth it when the panel cut-out matches the 30 mm standard and the application requires the full NEMA and IP rating set listed. It is not suited for illuminated switching needs or for panels cut to a different diameter.

Fits standard 30 mm panel cut-outs

The operator mounts into a 30 mm opening and the one-piece body simplifies installation without separate adapters. Drainage holes help prevent moisture ingress while grounding nibs support electrical continuity. Buyers needing an illuminated head or a different colour code should look elsewhere.

Highlights

  • Flush yellow button for clear emergency identification
  • 30 mm metal body with zinc die-cast bezel withstands heavy industrial use
  • IP65 and NEMA 4X ratings protect against dust, water and corrosion
  • Momentary flush action with one-piece construction simplifies panel installation
  • CE, CSA and UL listed for compliance in regulated environments

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

What size panel cut-out does the 30 mm push button operator need?

The operator is built for a 30 mm mounting hole and fits panels that accept that diameter.

How is the one-piece body secured and what step is often missed?

Insert the operator through the cut-out, tighten the mounting nut from the rear, and ensure the grounding nibs make firm contact with the panel.

Which sealing components should be checked or replaced over time?

Inspect the drainage holes and the IP65 gasket regularly; replace the gasket if it shows cracking or compression set.
