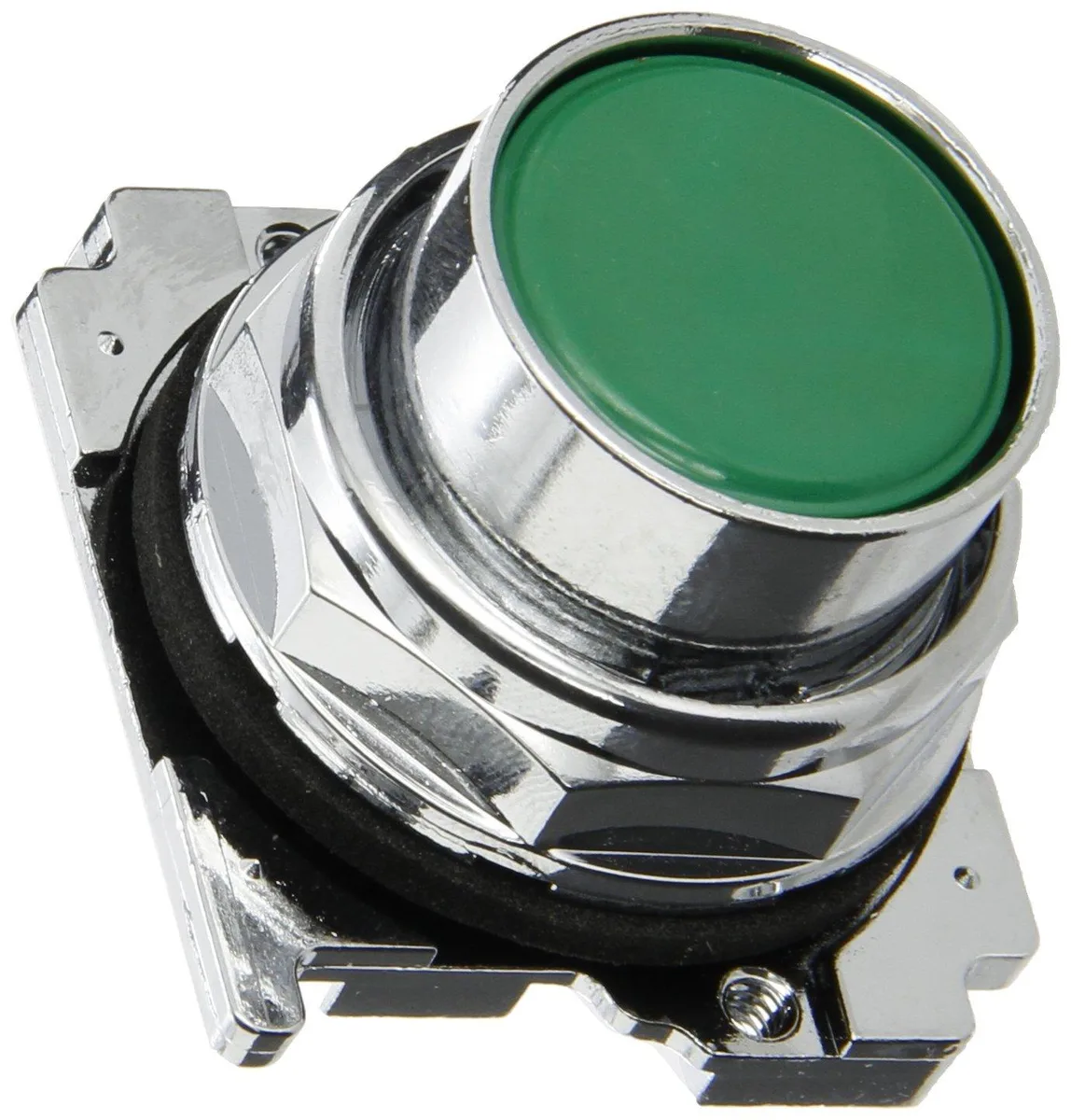

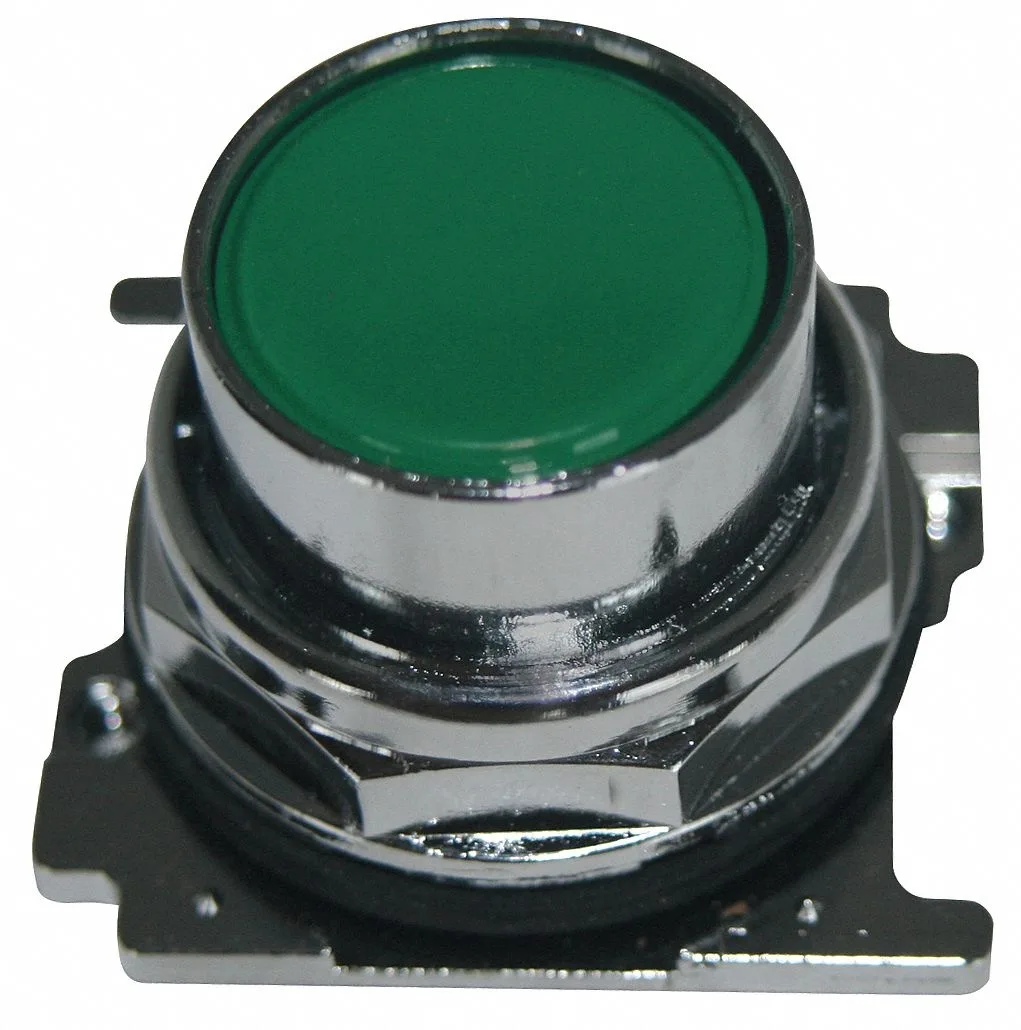

Green flush push button operator with zinc die cast bezel and plastic head 30 mm

Eaton

Eaton 10250T103 Cutler-Hammer 30 mm flush push button operator green

SKU CH-D0CM-DB44T

30 mm flush green push button operator with momentary action, metal body, plastic head, zinc die-cast bezel, IP65 and NEMA 12, 13, 3, 3R, 4, 4X ratings, plus drainage holes and grounding nibs

  • Engine BrandEATON
  • Engine Size30 mm
  • 30 mm flush mount fits standard panels
  • Green momentary button for clear visual status
  • IP65 and NEMA 4X rated for wet environments
  • Zinc die-cast bezel with metal body resists impact
  • One-piece construction with grounding nibs simplifies wiring

30 mm Green Flush Push Button

This Eaton Cutler-Hammer operator is a momentary flush push button designed for industrial control panels. It features a 30 mm mounting diameter with a green plastic head and a zinc die-cast bezel. The one-piece metal body includes grounding nibs and drainage holes for robust installation. It carries NEMA ratings 3, 3R, 4, 4X, 12, 13 and an IP65 rating for dust and water protection.

Replaces worn or damaged 30 mm operators

Use this unit to replace an existing 30 mm flush push button that has failed mechanically or lost its sealing integrity. The upgrade is worth it when the panel requires the combined NEMA 4X and IP65 protection for wash-down or outdoor environments. The CE, CSA, and UL Listed markings confirm compliance for regulated machinery. It is not suited for applications requiring an illuminated actuator or a maintained contact function.

Verify 30 mm panel cut-out and voltage rating

Confirm the control panel has a standard 30 mm mounting hole before ordering. Check that the contact block voltage and current ratings match the circuit requirements, as this operator ships without a contact block. Ensure the green colour coding matches the facility's safety or operational standards. The device is restricted from sale in certain states, so verify local procurement rules.

Highlights

  • 30 mm flush mount fits standard panels
  • Green momentary button for clear visual status
  • IP65 and NEMA 4X rated for wet environments
  • Zinc die-cast bezel with metal body resists impact
  • One-piece construction with grounding nibs simplifies wiring

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

What panel cut-out diameter does the 30 mm flush push button operator require?

The operator fits a standard 30 mm panel cut-out for flush mounting.

How is the operator secured, and what step is often missed during installation?

The one-piece body mounts with a locking nut; the grounding nibs must engage the panel for proper earth connection.

Which component typically needs replacement after extended use in NEMA 4X environments?

The plastic head can wear from repeated actuation and exposure; the metal bezel and body remain serviceable.
