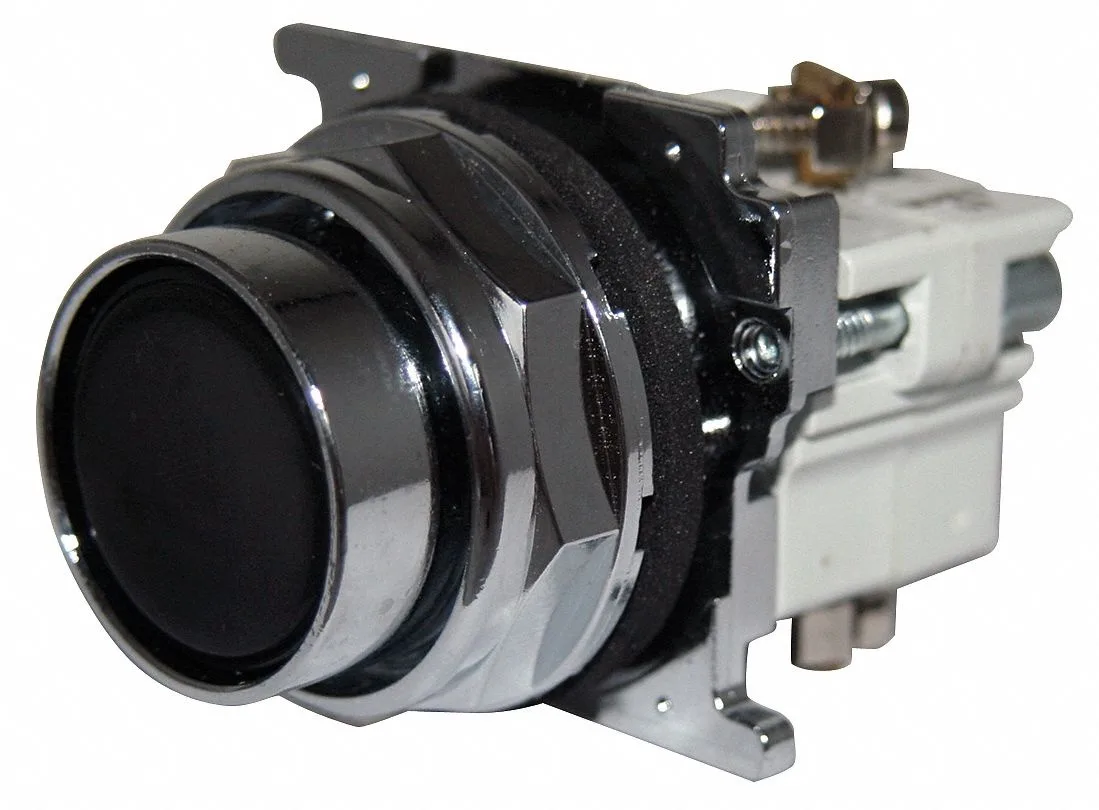

Metal industrial push button 30mm black flush head chrome bezel

Eaton

Eaton 10250T101-2 Industrial Push Button 30mm Black

SKU CH-4SKS-A5GXF

A 30 mm metal push button with momentary action, 2NO contacts rated at 10 A and 600 V AC, plus IP65 and NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 sealing

  • Engine BrandEATON
  • Engine Size30 mm
  • 30 mm flush metal operator fits standard panels
  • Momentary action with 2NO contacts rated 10 A @ 600 V AC
  • NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 enclosure ratings
  • IP65 ingress protection with diaphragm seals and drainage holes
  • UL Listed, CE and CSA certified with enclosed silver contacts

Eaton 30 mm industrial push button

The Eaton 10250T101-2 is a flush, momentary push button built for 30 mm panel cut-outs in industrial control stations. A chrome-plated zinc die-cast bezel surrounds a black metal operator head rated for 10 A at 600 V AC with a 2NO contact form. NEMA 1, 2, 3, 3R, 4, 4X and 13 plus IP65 sealing suit harsh indoor and outdoor environments. CE, CSA and UL listings confirm code compliance for panel builders and maintenance crews.

Sealed construction keeps out contaminants

Diaphragm seals and drainage holes protect the enclosed silver contacts from dust, water jets and coolant spray during normal operation. The screw-clamp terminals accept solid or stranded wire without special tools, and grounding nibs bond the operator to the panel for reliable earth continuity. No moving illumination elements mean lower heat and zero light-related failure modes in continuous-duty cycles.

Single-hole mount frees panel space

The 30 mm diameter requires only one round cut-out, leaving room for additional operators or legend plates on crowded faces. Metal construction resists impact and vibration better than plastic alternatives, while the flush profile reduces snag risk on passing cables or clothing. Buyers needing maintained action, illuminated heads or multi-operator clusters should select a different operator style.

Highlights

  • 30 mm flush metal operator fits standard panels
  • Momentary action with 2NO contacts rated 10 A @ 600 V AC
  • NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 enclosure ratings
  • IP65 ingress protection with diaphragm seals and drainage holes
  • UL Listed, CE and CSA certified with enclosed silver contacts

Specifications

Engine BrandEATON
Engine Size30 mm

Questions about this item

How do I install the 30 mm push button in a panel and what is the common mistake?

Mount the operator through a 30 mm cutout, secure the chrome-plated zinc die-cast bezel with the locking nut, then connect wires to the screw-clamp terminals; the step often missed is tightening the grounding nibs to maintain the NEMA 4X seal.

What maintenance will the 10250T101-2 need over time?

Inspect the diaphragm seals and drainage holes for debris, verify the enclosed silver contacts remain clean, and re-torque the screw-clamp terminals if vibration loosens them.

Which limit appears first during continuous operation at the 10 A 600 V AC rating?

The contact rating of 10 A at 600 V AC is the limiting factor; sustained loads at that level will reach the thermal limit of the enclosed silver contacts before the IP65 enclosure rating is challenged.
