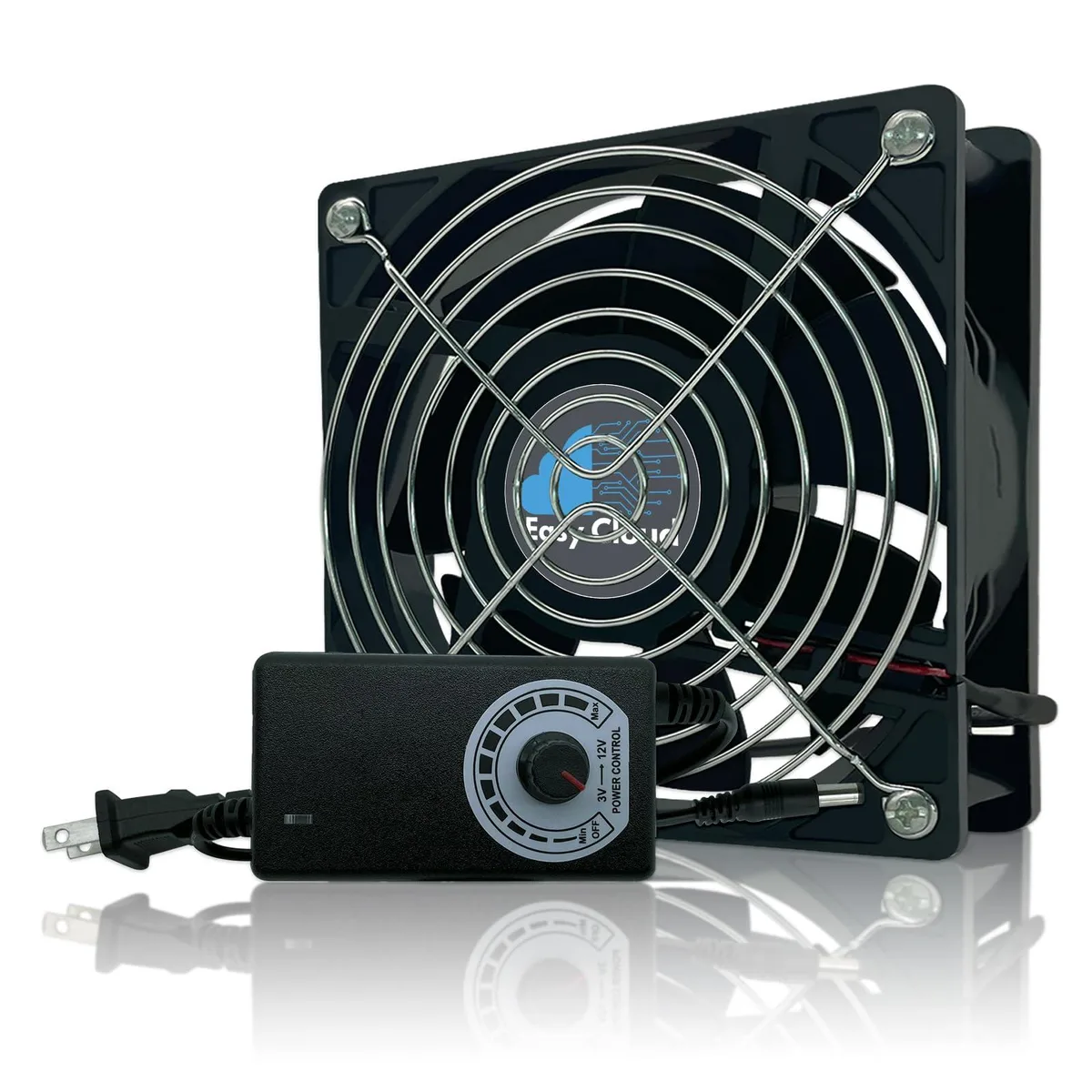

120 mm square industrial fan with 38 mm depth, black frame and blades, integrated speed controller with AC plug visible

Easy Cloud EC12038+Controller-1P 120mm 38mm Industrial Cooling Fan

SKU CH-YYSW-NHEZZ

A 120 mm × 38 mm axial fan with dual ball bearings, variable speed from 700 to 2800 RPM, 95.8 CFM airflow and an AC-powered controller for 110 V, 120 V or 220 V outlets

  • Adjustable cooling with variable speed controller
  • Dual-ball bearings rated for 50000 hours
  • 12V fan powered from AC outlet via included controller
  • 8 CFM airflow at 2800 RPM maximum speed
  • Quiet 41 dB operation at 700 RPM minimum speed

120 mm 38 mm Industrial Axial Fan

The Easy Cloud EC12038+Controller-1P is a 120 mm by 38 mm axial fan designed for industrial cooling and ventilation. It operates at a rated 12 V and draws 0.3 A for 3.3 W of power. The unit includes a multi-speed controller that powers the fan from an AC outlet at 110 V, 120 V or 220 V.

Replaces Fixed-Speed 12 V Fans

This fan replaces a fixed-speed 12 V muffin fan when variable airflow or quieter operation is needed. The controller lets you adjust speed from 700 RPM to 2800 RPM, delivering up to 95.8 CFM at the top end. Dual ball bearings rated for 50000 hours make the swap worthwhile for equipment that runs continuously.

Check Mounting Depth And Voltage

Verify that your chassis or device can accommodate the 38 mm thickness, which is 25 mm deeper than a standard 25 mm frame. Confirm the power source matches the supplied AC plug ratings of 110 V, 120 V or 220 V. The fan itself runs on 12 V DC supplied by the included controller.

Highlights

  • Adjustable cooling with variable speed controller
  • Dual-ball bearings rated for 50000 hours
  • 12V fan powered from AC outlet via included controller
  • 8 CFM airflow at 2800 RPM maximum speed
  • Quiet 41 dB operation at 700 RPM minimum speed

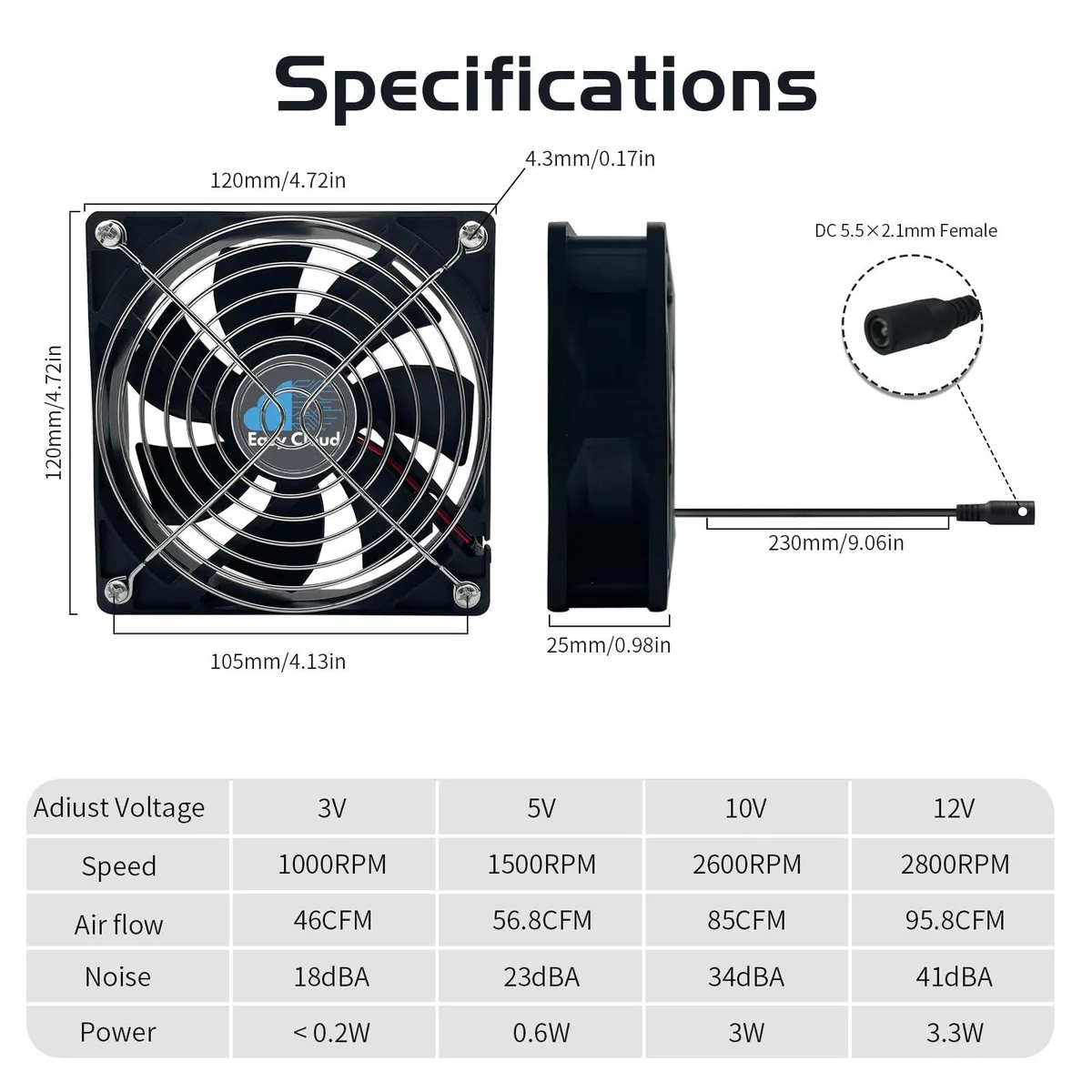

Specifications

BrandEasy Cloud
Part NumberEC12038+Controller-1P

Questions about this item

What are the exact dimensions of the 120mm fan frame?

The fan measures 120 x 120 x 25 mm (4.72 x 4.72 x 0.98 inches) and fits a standard 120mm mounting pattern.

How do I connect the controller to mains power and the fan?

Plug the controller's AC plug into a 110V or 220V outlet, then connect the fan's lead to the controller output; the dial adjusts speed from 700 to 2800 RPM.

When should the dual-ball bearings be replaced?

The dual-ball bearings are rated for 50,000 hours of operation; plan replacement when noise increases or speed drops below the 700 RPM minimum.
