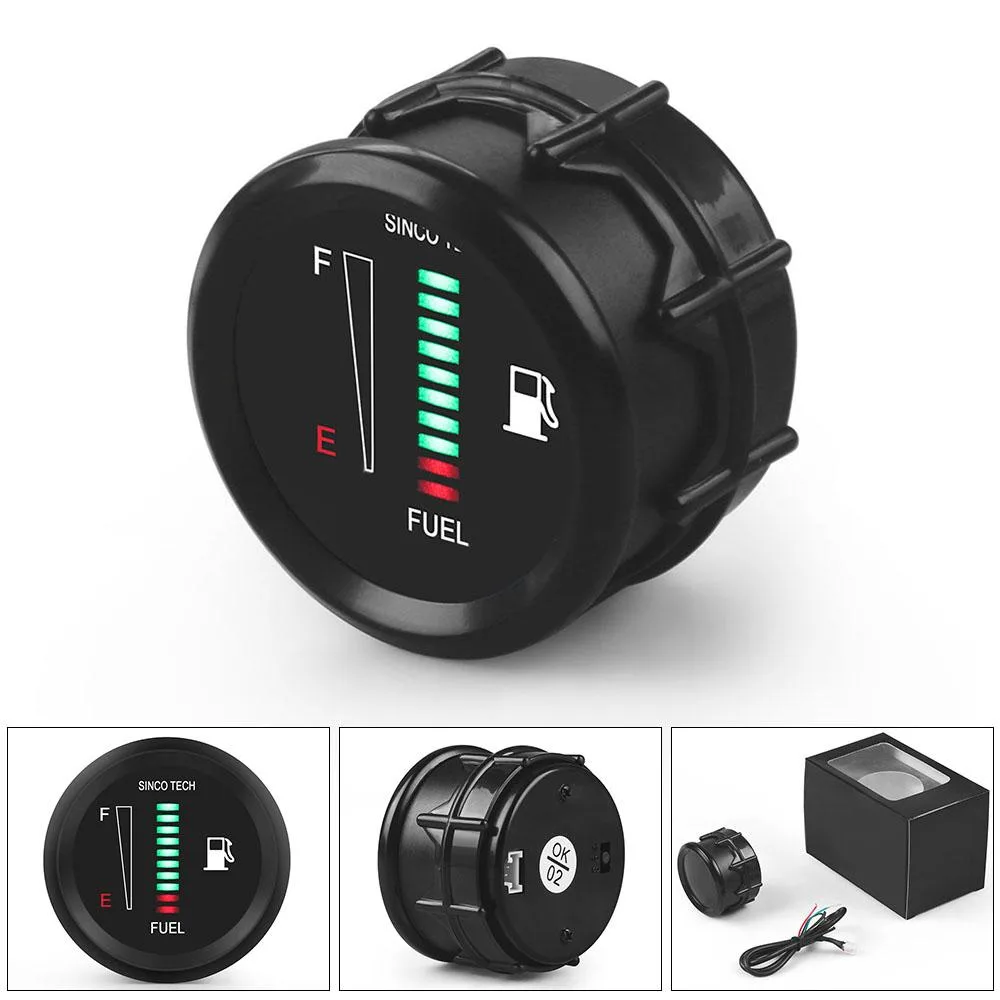

Round 52mm digital fuel gauge with black bezel and LED display

Dyno Racing

Dyno Racing 52mm Fuel Level Gauge 8-18V without Sensor

SKU CH-0MW7-WE17C

52 mm digital fuel-level gauge operates on 8-18 V and calibrates to a 2 K resistance sensor

  • TypeGauges
  • Gauge TypeAir Fuel Ratio
  • Works with 8-18V systems for broad vehicle fit

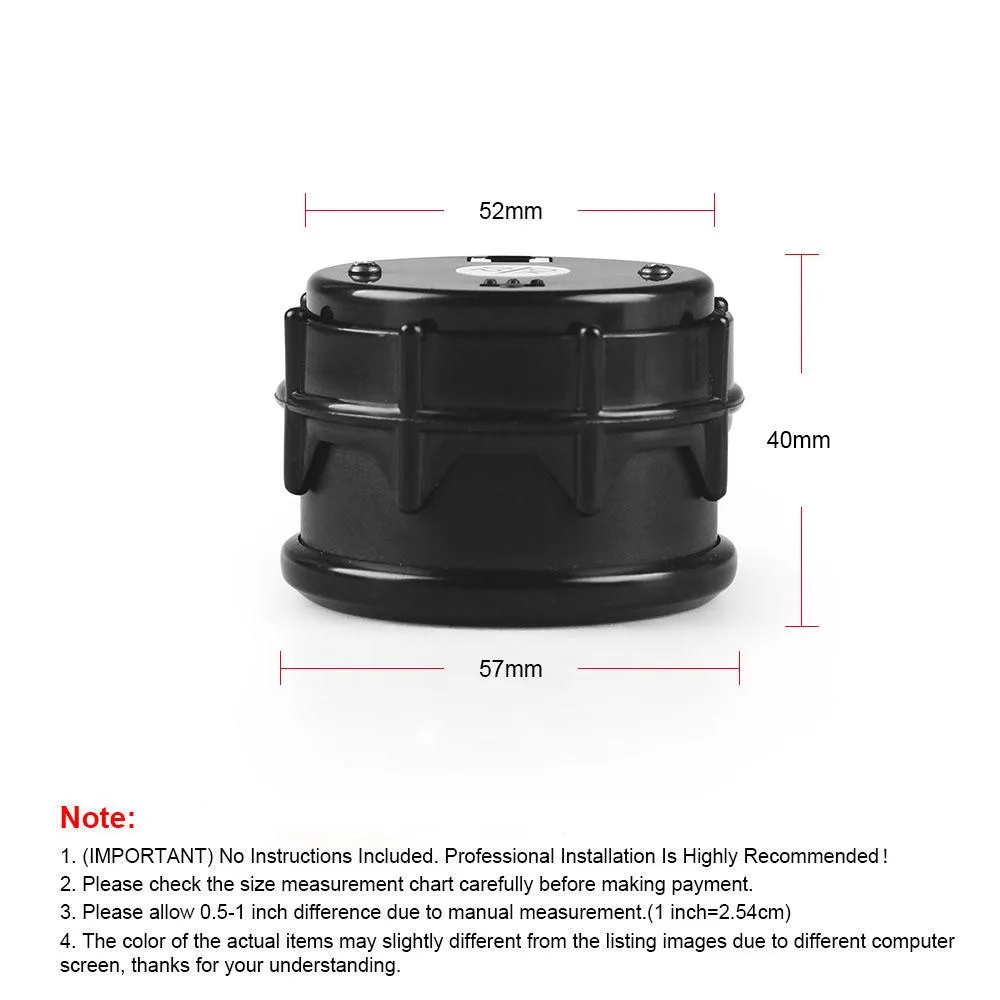

  • 52mm diameter matches standard gauge openings
  • Digital LED display shows fuel level clearly
  • Calibrates via push-button for empty and full
  • Includes power cable for direct ACC connection

52mm Universal Fuel Level Gauge

The Dyno Racing 52mm gauge provides a digital readout for fuel level in a standard 52mm diameter housing. It operates on an 8-18V electrical system and is designed for automotive interior use. The unit ships without a fuel level sensor and includes a power cable for connection. Professional installation is recommended by the supplier.

Check Sensor Compatibility Before Ordering

This gauge requires a resistance-type fuel level sensor with a measuring range of 2K ohms to function correctly. Verify that your vehicle's existing sender matches this resistance specification or source a compatible sensor separately. The wiring harness uses a red wire for ignition-switched power, a green wire for the sensor signal and a black wire for ground. No installation guide is included in the package.

Thermals Noise and Power Draw

The instrument draws minimal current from the vehicle's 8-18V supply during normal operation. As a solid-state digital display with no moving parts, it produces no audible noise and generates negligible heat inside the dashboard. The LED indication scans from empty to full during the calibration routine before settling into standard fuel level display mode.

Highlights

  • Works with 8-18V systems for broad vehicle fit
  • 52mm diameter matches standard gauge openings
  • Digital LED display shows fuel level clearly
  • Calibrates via push-button for empty and full
  • Includes power cable for direct ACC connection

Specifications

TypeGauges
Gauge TypeAir Fuel Ratio

Questions about this item

Does the package include a fuel level sensor or only the gauge and wiring?

The box contains the fuel level gauge and one power cable; a compatible resistance-type sensor with a 2K measuring range must be purchased separately.

Which sensor specification matches this gauge's 2K measuring range requirement?

Choose a resistance-type fuel level sensor rated for a 2K ohm range so the gauge can calibrate its low and high level settings correctly.

How does the 8-18V supply range affect installation in a typical vehicle?

The gauge accepts 8-18V, so it connects to the ignition switch ACC for switched power and to battery negative for ground without needing a separate regulator.
