Tall black tower workstation with front panel vents

DELL

DELL Precision T7810 Workstation 2x Xeon E5-2690 v4 28-Core 64GB DDR4 512GB SSD Quadro M5000

SKU CH-6C5E-FVRNE

Dual Xeon E5-2690 v4 workstation with 28 cores, 64GB DDR4, 512GB SSD and Quadro M5000 for CAD and rendering

  • CPU TypeIntel Xeon E5 v4
  • CPU Speed2.60 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores28-Core Processor
  • # of Processors Installed2
  • MAX Processors2
  • 28 cores across dual Xeon E5-2690 v4 CPUs accelerate multi-threaded workloads
  • 64 GB DDR4 memory keeps large assemblies and datasets resident
  • 512 GB SSD shortens application and project load times
  • Quadro M5000 with 8 GB VRAM drives professional CAD and rendering pipelines
  • Windows 10 Pro pre-installed for immediate deployment

Dual-Xeon CAD Workstation

The Dell Precision T7810 is a dual-socket tower workstation built for professional design, engineering and rendering workloads. Two Xeon E5-2690 v4 processors deliver 28 cores at 2.60 GHz, supported by 64 GB of DDR4 memory and a 512 GB SSD. An NVIDIA Quadro M5000 with 8 GB video memory handles certified CAD and visualisation applications. Windows 10 Pro is preinstalled.

Build integration

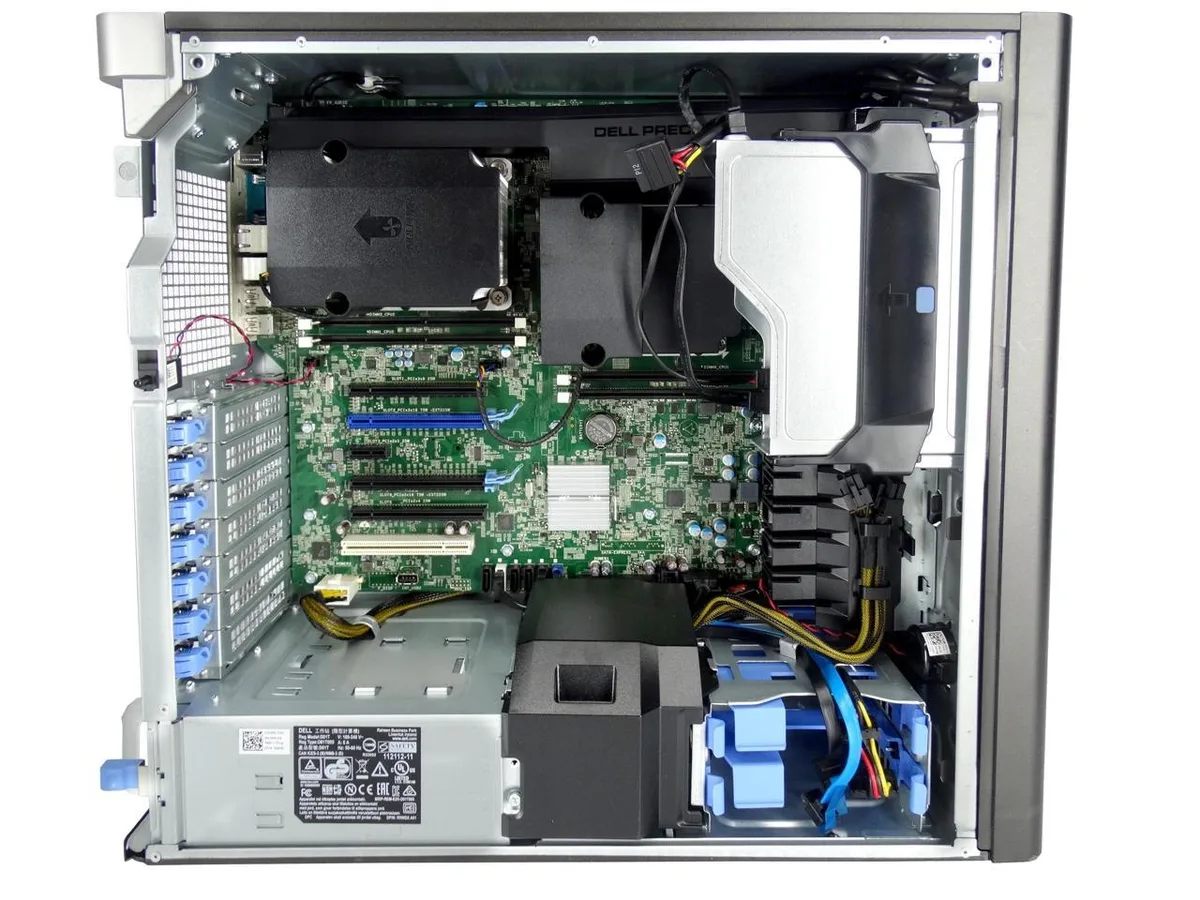

The system occupies a full tower chassis and requires a standard mains connection and suitable rack or desk space. Dual LGA 2011-3 processors are already installed at the maximum supported count of two, leaving no additional CPU sockets free. The 64 GB DDR4 configuration fills available memory slots for immediate high-capacity multitasking. The Quadro M5000 drives multiple professional displays without needing a separate graphics card.

Suitability and limits

This workstation suits engineers, designers and analysts who need certified driver stability for CAD, CAE and content-creation software on a ready-to-run platform. Buyers who require more than 512 GB of high-speed internal storage should plan for additional drives. Workloads that benefit from newer instruction sets, higher single-thread frequencies or GPU compute APIs not supported by the Quadro M5000 will need a different platform.

Highlights

  • 28 cores across dual Xeon E5-2690 v4 CPUs accelerate multi-threaded workloads
  • 64 GB DDR4 memory keeps large assemblies and datasets resident
  • 512 GB SSD shortens application and project load times
  • Quadro M5000 with 8 GB VRAM drives professional CAD and rendering pipelines
  • Windows 10 Pro pre-installed for immediate deployment

Specifications

BrandDELL
CPU TypeIntel Xeon E5 v4
CPU Speed2.60 GHz
CPU SocketLGA 2011-3
Number of CPU Cores28-Core Processor
# of Processors Installed2
MAX Processors2
Installed Memory Size64GB
Memory TypeDDR4
SSD (Installed)512GB
Video Memory8GB
Operating SystemWindows 10 Pro 64
FeaturesNvidia Quadro M5000 8GB
CPU ModelE5-2690 V4

Questions about this item

What sustained-load limit appears first on the dual Xeon E5-2690 v4 28-core configuration?

The 28 cores at 2.60 GHz will hit their thermal ceiling before memory or storage become bottlenecks during extended rendering or simulation runs.

How loud and hot does the Precision 7810 get when the Quadro M5000 and both CPUs run all day?

The workstation's chassis fans increase speed to keep the 8 GB Quadro M5000 and dual processors within safe temperatures, producing audible airflow noise in a quiet room.

Which DDR4 memory specification must the buyer already have to expand beyond the installed 64 GB?

The system uses DDR4 RDIMMs in the LGA 2011-3 platform, so any additional modules must match that generation and form factor to be recognised.
