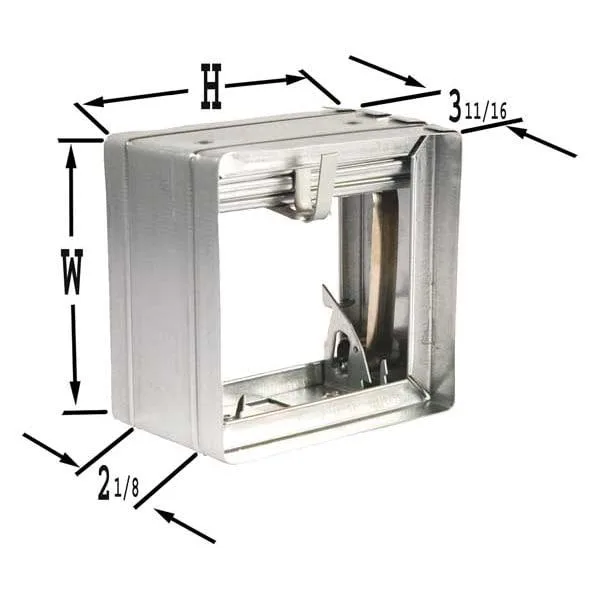

Square galvanised steel fire damper, 9-3/4 inch sides, 3-11/16 inch deep

Dayton

Dayton Square Fire Damper 9-3/4 In. W

SKU CH-XFEE-G156K

Square fire damper rated for 1-1/2 hour fire resistance with 165°F fusible link for low-pressure HVAC systems

  • TypeDynamic With Fire Resistance Rating Less Than 3 Ho
  • Dynamic fire damper rated for 1-1/2 hour protection
  • Fits 10 in. by 10 in. duct openings
  • 22 ga. galvanized steel resists corrosion
  • Fusible link activates at 165 degrees F
  • Meets UL 555, NFPA 80, 90A, 101 standards

Square Fire Damper for HVAC Systems

This Dayton square fire damper fits nominal 10 in. by 10 in. ducts and installs in vertical or horizontal orientations. It is built from 22 ga. galvanized steel and carries a 1-1/2 hour fire rating. The dynamic design suits low-pressure HVAC systems in commercial and institutional buildings.

Fusible Link Activates at 165 Degrees F

The damper releases automatically when the fusible link reaches 165 degrees F, closing the opening to limit fire spread. This single temperature rating determines whether the unit matches the fire-protection plan for the space. Verify the required link temperature before specifying.

Mounts With Retaining Angle 2TGG7

Installation uses the recommended retaining angle 2TGG7 to secure the 3-11/16 in. deep frame within the duct opening. The assembly provides 0.422 sq. ft. of free area for airflow when open. Compliance includes UL 555, NFPA 80, 90A, 101, IBC, CSFM and NYC MEA standards.

Highlights

  • Dynamic fire damper rated for 1-1/2 hour protection
  • Fits 10 in. by 10 in. duct openings
  • 22 ga. galvanized steel resists corrosion
  • Fusible link activates at 165 degrees F
  • Meets UL 555, NFPA 80, 90A, 101 standards

Specifications

BrandDAYTON
TypeDynamic With Fire Resistance Rating Less Than 3 Ho

Questions about this item

How does the 1-1/2 hour fire rating apply once the damper is installed in a duct?

The damper meets UL 555 and NFPA standards for a 1-1/2 hour fire resistance rating when mounted vertically or horizontally in low-pressure HVAC systems.

What does the UL 555 standard cover for this damper?

UL 555 certifies the fire damper for dynamic closure under airflow, with a 165 °F fusible link and 1-1/2 hour fire rating in ducts up to 10 inches wide and high.

What duct opening does the 9-3/4 inch damper fit?

It fits a nominal 10 inch by 10 inch duct; the damper itself measures 9-3/4 inches square and 3-11/16 inches deep, requiring retaining angle 2TGG7 for mounting.
