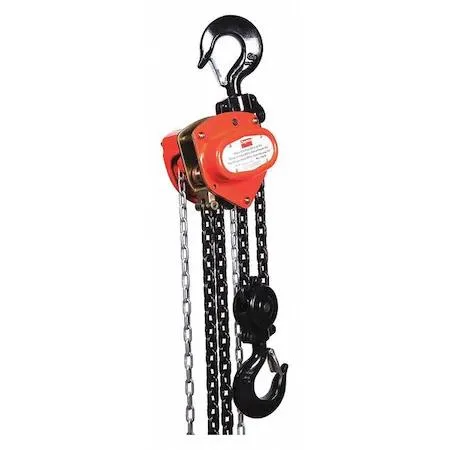

Dayton Chain Hoist 6000 lb 10 ft Lift

6000 lb Chain Hoist

This manual chain hoist from Dayton is rated for a maximum lifting capacity of 6000 lb and provides a maximum lifting length of 10 ft. It uses a hook mount without a trolley, making it a fixed point solution for vertical lifts. The body is constructed from steel and finished in red. It is intended for workshops or job sites that need a reliable mechanical lifting tool.

Double Disc Brake Under Load

The hoist employs a Weston style double disc brake designed to hold the load securely when the hand chain is released. This brake type is engineered to manage sustained tension rather than only momentary stops. Grade 80 alloy steel chain runs through the mechanism, providing the strength required for heavy, repeated lifting cycles. The 21 1/4 in headroom allows the hook to sit close to the beam during operation.

Hook Mount With Safety Latch

A lifting hook with a safety latch is fitted as standard, helping to prevent accidental disengagement of the load. The hook mounted design means the unit hangs directly from a suitable beam or anchor point without a separate trolley. Body dimensions are 9 1/4 in wide by 5 15/16 in deep, giving a compact profile for tight spaces. Chain length supplied is 21 1/2 ft to accommodate the full lift height.
