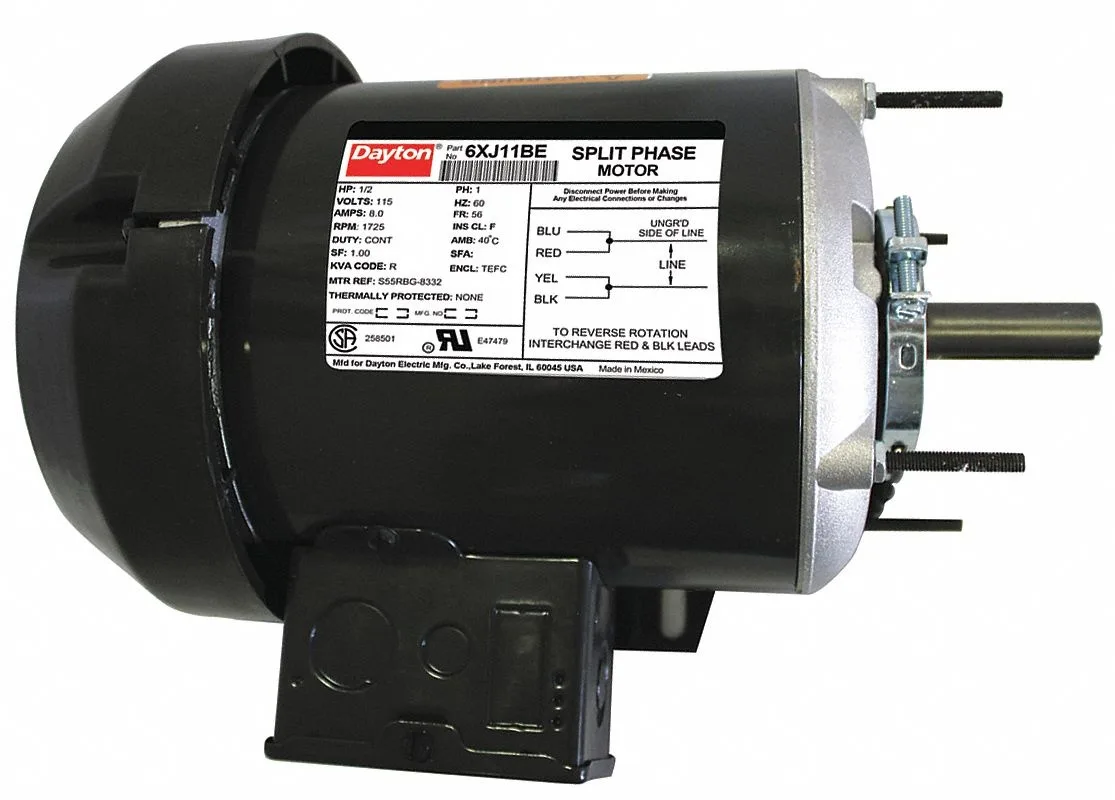

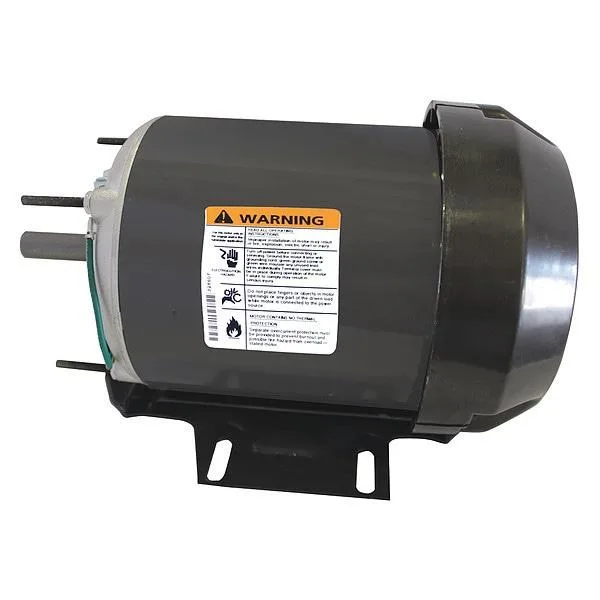

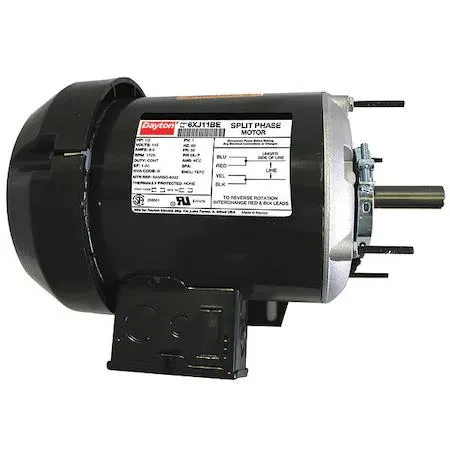

Dayton 1/2 HP split-phase motor TEFC 56 frame cradle base keyed shaft

Dayton

Dayton 6XJ11 1/2 HP 1725 rpm 56 Frame Split-Phase Motor

SKU CH-39KQ-79VWW

A 1/2 hp split-phase motor with a 56 frame, 1725 rpm speed, and 115V operation for continuous duty

  • 1/2 hp motor delivers reliable power for continuous-duty HVAC applications
  • Split-phase design starts under load without a capacitor
  • Totally enclosed fan-cooled housing protects windings from dust and moisture
  • Keyed 56-frame steel shaft fits standard mounts and resists slippage
  • Reversible CW/CCW rotation simplifies installation in either airflow direction

Motor Type and Application

The Dayton 6XJ11 is a single-phase split-phase motor rated at 1/2 hp with a nameplate speed of 1,725 rpm. It operates on 115V AC at 60 Hz and draws 8.0 amps at full load. The unit suits general-purpose industrial or HVAC equipment requiring continuous duty in a 56 frame size.

Installation Notes

The motor mounts on a cradle base and uses a keyed shaft for driven-load attachment. Rotation is reversible between clockwise and counter-clockwise. No thermal protection is fitted, so external overload provision must be arranged by the installer. The totally enclosed fan-cooled steel frame tolerates ambient temperatures up to 40 degrees C.

Pre-Purchase Checks

Verify that the driven equipment matches the 1/2 hp output and 1,725 rpm speed at 60 Hz. Confirm the supply is 115V single-phase AC and that the starter or contactor can handle 8.0 A full-load current. Ensure the 56 frame cradle base and keyed shaft dimensions align with the existing mounting pattern and coupling.

Highlights

  • 1/2 hp motor delivers reliable power for continuous-duty HVAC applications
  • Split-phase design starts under load without a capacitor
  • Totally enclosed fan-cooled housing protects windings from dust and moisture
  • Keyed 56-frame steel shaft fits standard mounts and resists slippage
  • Reversible CW/CCW rotation simplifies installation in either airflow direction

Specifications

BrandDAYTON

Questions about this item

How do I verify the motor is running at the correct 1725 rpm after installation?

Use a tachometer on the keyed shaft to confirm the nameplate speed of 1725 RPM under load.

What comes with the motor and what must I supply separately?

The motor includes a cradle base and keyed shaft; you must provide the 115V AC power supply, wiring, overload protection and any driven equipment.

Which voltage and frame combination should I select for a 115V 56-frame replacement?

Choose the 115V AC, 56-frame, split-phase model rated at 1/2 hp and 1725 rpm for a direct match.
