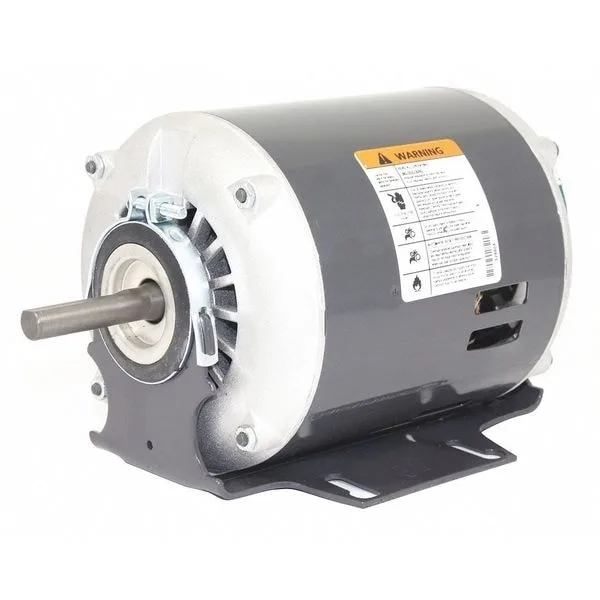

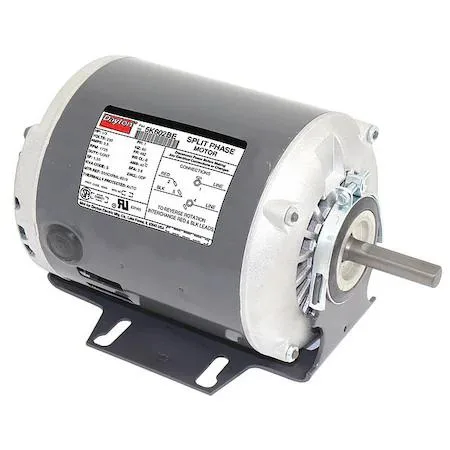

Dayton 5K602 split-phase motor 1/3 hp 1725 RPM 48Z frame open drip proof steel

Dayton

Dayton 5K602 HVAC Control 1/3hp 1725RPM 48Z

SKU CH-0KHJ-GMJKY

Single-phase split-phase motor delivers 1/3 hp at 1,725 RPM with 230 V AC, 3.5 A full-load current and 1.35 service factor

  • 1/3 hp motor powers HVAC systems efficiently
  • 1725 RPM delivers steady airflow performance
  • 230 V single-phase supply suits standard wiring
  • Open drip-proof enclosure resists moisture ingress
  • Auto thermal protection prevents overheating damage

General-purpose motor for HVAC duty

This Dayton 5K602 motor delivers 1/3 hp at 1,725 RPM on a 230 V AC single-phase supply. The split-phase design suits continuous operation in HVAC equipment such as fans, blowers and pumps. A 48Z frame with cradle-base mounting and a flat shaft simplifies direct replacement in compatible units.

Continuous duty with thermal protection

Rated for continuous duty, the motor carries a 1.35 service factor and Class B insulation for sustained loading. Automatic thermal protection resets without intervention when the 40 °C ambient limit is exceeded. The open drip-proof enclosure allows airflow while guarding against falling moisture in indoor installations.

Single-speed 230 V AC input

Operation is fixed at 60 Hz and 3.5 A full-load current with no speed-selection or voltage-change capability. The shaft rotates CW or CCW as wired, but the motor provides only one nameplate speed. Buyers who need multi-speed control or a different voltage must choose another model.

Highlights

  • 1/3 hp motor powers HVAC systems efficiently
  • 1725 RPM delivers steady airflow performance
  • 230 V single-phase supply suits standard wiring
  • Open drip-proof enclosure resists moisture ingress
  • Auto thermal protection prevents overheating damage

Specifications

BrandDAYTON

Questions about this item

How much heat and noise does the 1/3 hp split-phase motor produce when running continuously at 1725 RPM?

The open drip-proof enclosure and Class B insulation are rated for continuous duty at up to 40 °C ambient, with automatic thermal protection to limit temperature rise.

What electrical supply and mounting does the 48Z frame motor require?

It needs a 230 V AC, 60 Hz single-phase circuit capable of 3.5 A full-load current and a cradle-base mounting surface for the 48Z frame.

Can the 5K602 replace an older 48-frame motor that turns the opposite direction?

Yes, the shaft rotates both CW and CCW so it can match the rotation of the unit being replaced.
